DS-KV8213-WME1 - is an outdoor IP video intercom station designed for villas and modern homes, ideal for smart access control and advanced security. Equipped with a 2 MP HD camera with IR illumination and Digital WDR , it guarantees clear and detailed images even in low light conditions. The device integrates a customizable double call button , Mifare card reader and remote management via the Hik-Connect app for communications and door opening anywhere. Thanks to 2.4 GHz Wi-Fi support, standard PoE power supply, aluminum alloy structure and IP65 IK08 vandal-proof protection, it offers maximum reliability for professional Hikvision video intercom systems. Hikvision

Technical Data Sheet

referencia : DS-KV8213-WME1

brand : Hikvision

EAN: 6931847179410

Manufacturer Object ( [id] => 42 [name] => Hikvision [description] =>

Desde el año de su nacimiento, su prestigio ha crecido tanto que en 2015 se convertirá en la primera realidad mundial en materia de seguridad.

A partir de 2016 Hikvision expande su mercado convirtiéndose en Proveedor de Soluciones Totales para todo el mercado de la seguridad. Así entra en el mundo de la detección de intrusos y luego se acerca a las nuevas tecnologías e inteligencia al servicio de la humanidad ocupándose de IO, Visión Artificial, Robótica y Sistemas Automovilísticos. De líder en seguridad, Hikvision se convierte con compromiso, pasión y competencia en una empresa de alta tecnología con una visión 4.0, siempre apuntando alto.

Por lo tanto, Setik se siente honrado de ser un distribuidor de Hikvision. Como siempre, ofreceremos productos de última generación y el apoyo técnico y comercial adecuado.

[short_description] =>

Videosorveglianza Hikvision

Hikvision fue fundada en 2001 con el objetivo de crear y desarrollar soluciones profesionales completas de videovigilancia, convirtiéndose rápidamente en un líder en el mundo de la seguridad.

[id_address] => [date_add] => 2020-03-26 09:28:09 [date_upd] => 2024-06-06 12:13:26 [link_rewrite] => hikvision [meta_title] => Seguridad hikvision [meta_keywords] => Seguridad hikvision [meta_description] => Hikvision fue fundada en 2001 y pronto se convirtió en líder del mundo de la videovigilancia. Descubra ahora los productos del catálogo! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

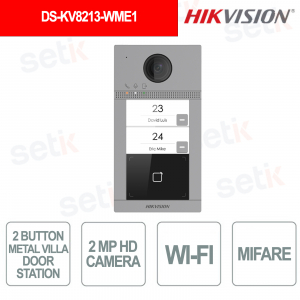

DS-KV8213-WME1 – 2 BUTTONS METAL VILLA DOOR STATION

Hikvision

Hikvision DS-KV8213-WME1 is an outdoor IP video intercom station designed for villas and two-family homes, ideal for smart access control and advanced security. Equipped with a 2 MP HD camera with IR illuminator and Digital WDR , it guarantees clear and detailed images even in low light conditions. The device integrates a double call button with customizable labels , a Mifare card reader and remote management via the Hik-Connect app for communications and door opening from a smartphone. Thanks to 2.4 GHz Wi-Fi support, standard PoE power supply, an aluminum alloy structure and IP65 IK08 vandal-proof protection, it ensures high performance and maximum reliability in Hikvision video intercom systems.

Main features:

- 2MP HD camera with built-in IR

- Digital WDR for optimized images

- Customizable double call button

- Integrated Mifare reader for access control

- 2.4 GHz Wi-Fi and 10/100 Mbps Ethernet network

- IEEE802.3af PoE power supply

- Two-way audio with noise reduction

- IP65 and IK08 vandal-proof protection

- Support up to 10,000 cards

- Remote management via Hik-Connect

Further details

✅ High Performance System Parameters:
The embedded Linux operating system with high-performance processor, 256MB RAM and 32MB ROM ensures stability, operating speed and continuous reliability in Hikvision professional IP video intercom systems.
✅ Video Parameters with 2 MP HD Camera:
 The integrated camera supports resolutions up to 1920×1080p , H.264/H.265 compression , IR illumination up to 3 meters and Digital WDR technology , offering detailed images and optimal visibility even in backlit or low light conditions.
✅ Two-Way Audio Parameters :
The audio system with built-in omnidirectional microphone , internal speaker and noise suppression and echo cancellation technologies ensures clear, smooth and interference-free communications between inside and outside.
✅ Network Parameters IP and Wi-Fi :
IEEE802.11 b/g/n Wi-Fi connectivity and support for TCP/IP, RTSP, IPv6 and ONVIF protocols ensure complete integration with smart home networks, IP security systems and remote management via Hik-Connect.
✅ Access Control Parameters with Mifare Reader :
The access control system supports Mifare 13.56 MHz card reading , management of up to 10,000 cards and 2,000 users, offering high security and intelligent access management in residential and professional contexts.
✅ Professional Interfaces and Integrated Inputs :
The device integrates advanced interfaces such as RS-485 , alarm inputs, relays for lock control, door contacts, RJ-45 10/100 Mbps network and TAMPER anti-tamper switch, ensuring maximum compatibility with Hikvision security and automation systems.

Technical data sheet

DS-KV8213-WME1
System parameters
Operation system Embedded Linux operation system
Operation method Single-button
ROM 32 MB
RAM 256 MB
Video parameters
Lens 1
Resolution Main stream: 1920 × 1080p, and 1280 × 720p
Substream: 640 × 480p
FOV Horizontal: 124° Vertical: 75°
Wide dynamic range (WDR) Digital WDR/76.9 dB
Supplement light IR light, up to 3 m
WDR True WDR
Field of view Horizontal: 129° Vertical: 75°
Video compression standard H.264; h.265; MJPEG
Audio parameters
Audio input 1 built-in omnidirectional microphone
Audio compression standard G.711 U、G.711 A、Opus、AAC-LD、AAC-LC、G.726、G.722.1、
Audio output built-in loudspeaker
Audio compression bitrate 64 Kps
Audio quality Noise suppression and echo cancellation
Volume adjustment Adjustable
Capacity
User capacity 2000
Card capacity 10000
Linked indoor station capacity 2 (main indoor station)
Sub-door station capacity 16
Network parameters
Network protocol TCP/IP, RTSP, IPv6, Onvif
Wi-Fi IEEE802.11b, IEEE802.11g, IEEE802.11n
Bluetooth /
3G/4G /
Received frequency 2.4 to 2.4835 GHz
Transmitted frequency 2.4 to 2.4835 GHz
Bandwidth 20/40 MHz
Frequency power 802.11b:15 dBm +/- 1.5 dBm
802.11g: 15 dBm +/- 1.5 dBm
802.11n(ht20):14 dBm +/- 1.5 dBm
802.11n(ht40):12 dBm +/- 1.5 dBm
Authentication
Card reading frequency 13.56 MHz
Device interfaces
Alarm input 4
Network interface 1 RJ-45,10/100 Mbps self-adaptive
TAMPER 1
Exit button 2
RS-485 1
USB /
Wiegand /
TF card Reserved
Alarm output /
Lock control 2 relays, Max. 30 VDC 2 A
Door contact input 2
General
Button 2 physical buttons
Installation Surface mounting
Indicator 3
Weight Net weight: 0.370 kg
Gross weight: 0.637 kg
Protective level IP65, IK08
Working temperature -40° C to 53° C(-40° F to 127.4° F)
Working humidity 10% to 95% (no condensation)
Dimensions 174 mm × 91 mm × 29 mm
Battery /
Application environment Outdoor
Power consumption ≤ 10 W
Language English, Arabic, European French, Russian, European Spanish, Latin American Spanish, Italian, German, Polish, Turkish, Portuguese, Brazilian Portuguese, Uzbek, Kazakh, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Lithuanian, Estonian, Latvian, Norwegian, Danish, Slovenian, Slovak, Hebrew, Swedish, Finnish, Mongolian, Vietnamese, Traditional Chinese (Taiwan), Latin American Spanish
