DS-KD-IN IP65 Indicator Module for KD8 Pro Modular Video Intercom - Hikvision

DS-KD-IN IP65 Indicator Module for KD8 Pro Modular Video Intercom - Hikvision

 
-35%

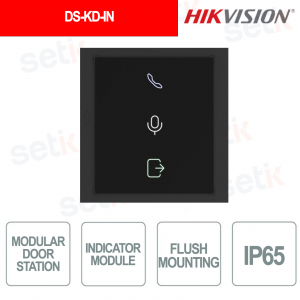

DS-KD-IN - The indicator module for the KD8 Pro Modular Door Station series is designed to enhance the user experience in modular video intercom systems by providing visual indication of call, door opening, and two-way audio communication status. Featuring IP65 protection, it is ideal for outdoor installations that are resistant to dust and weather. The system integrates a high-performance embedded processor with a Linux platform, ensuring reliability and stable operation over time. Thanks to backlight compensation, compatibility with flush or surface mounting, and an expandable modular design, it represents a professional solution for advanced Hikvision video intercom systems. Hikvision

referencia : DS-KD-IN

brand : Hikvision

EAN: 6954273691493

Manufacturer Object ( [id] => 42 [name] => Hikvision [description] =>

Desde el año de su nacimiento, su prestigio ha crecido tanto que en 2015 se convertirá en la primera realidad mundial en materia de seguridad.

A partir de 2016 Hikvision expande su mercado convirtiéndose en Proveedor de Soluciones Totales para todo el mercado de la seguridad. Así entra en el mundo de la detección de intrusos y luego se acerca a las nuevas tecnologías e inteligencia al servicio de la humanidad ocupándose de IO, Visión Artificial, Robótica y Sistemas Automovilísticos. De líder en seguridad, Hikvision se convierte con compromiso, pasión y competencia en una empresa de alta tecnología con una visión 4.0, siempre apuntando alto.

Por lo tanto, Setik se siente honrado de ser un distribuidor de Hikvision. Como siempre, ofreceremos productos de última generación y el apoyo técnico y comercial adecuado.

[short_description] =>

Videosorveglianza Hikvision

Hikvision fue fundada en 2001 con el objetivo de crear y desarrollar soluciones profesionales completas de videovigilancia, convirtiéndose rápidamente en un líder en el mundo de la seguridad.

[id_address] => [date_add] => 2020-03-26 09:28:09 [date_upd] => 2024-06-06 12:13:26 [link_rewrite] => hikvision [meta_title] => Seguridad hikvision [meta_keywords] => Seguridad hikvision [meta_description] => Hikvision fue fundada en 2001 y pronto se convirtió en líder del mundo de la videovigilancia. Descubra ahora los productos del catálogo! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

DS-KD-IN – KD8 PRO MODULAR DOOR STATION SERIES

Hikvision

The Hikvision DS-KD-IN indicator module from the KD8 Pro Modular Door Station series is the ideal solution for completing professional video intercom systems with intuitive light signals dedicated to calls , door opening and two-way audio . Designed for outdoor environments, it offers IP65 protection against dust and water, ensuring reliability even in difficult weather conditions. The Linux operating system with a high-performance embedded processor ensures stable operation and perfect integration with Hikvision KD8 Pro modules. Thanks to backlight compensation, low power consumption and the possibility of flush-mounted or surface installation, it represents a modern, modular and easily expandable solution.

Main features:

- Professional indicator module for Hikvision KD8 Pro modular video intercom systems

- Intelligent light signals for calls, door opening and two-way audio communication

- IP65 protection resistant to rain, dust and outdoor installations

- Linux system with embedded processor for stable and reliable performance

- Backlight compensation for better visibility of the indicator lights

- Integrated RS-485 interface for integration with modular video intercom systems

- Flush or surface installation for maximum mounting flexibility

- Low power consumption ≤ 2 W ideal for efficient security systems

Further details

✅ System Parameters:
The Hikvision DS-KD-IN indicator module uses a Linux operating system with a high-performance embedded processor , designed to ensure stability, fast response and continuous operation within the KD8 Pro series modular video intercom systems, even in professional outdoor installations.
✅ Light signals:
 The device integrates a system of intelligent LED indicators dedicated to displaying the status of calls, door opening , and two-way audio communication, offering immediate visual feedback and improving the user experience in residential and condominium settings. Backlight compensation also ensures high visibility in any environmental conditions.
✅ RS-485 Interface :
Thanks to the presence of the integrated RS-485 port, the module can be easily connected and synchronized with other Hikvision KD8 Pro devices, allowing stable communication and advanced integration with modular video intercom systems and professional security systems.

Technical data sheet

DS-KD-IN
System parameters
Operation system Embedded Linux operation system
CPU Embedded MCU Processor
Device interfaces
Alarm input /
Network interface /
TAMPER /
Exit button /
RS-485 1
USB /
Wiegand /
TF card /
Alarm output /
Door contact input /
Power interface 1
General
Button /
Installation Flush mounting, surface mounting
Indicator 3
Weight With package: 326 g
Without package: 165 g
Protective level IP65
Working temperature -40° C to +55° C(-40° F to 131° F)
Working humidity 10% to 95%
Dimensions 98.5 mm × 100 mm × 34.2 mm (3.87" × 3.95" × 1.33")
Battery /
Application environment Outdoor
Power consumption ≤ 2 W
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
