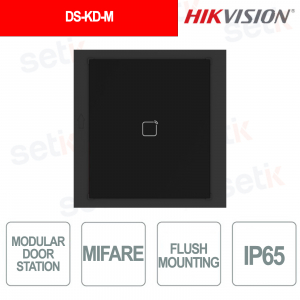

DS-KD-M M1 IP65 RFID Badge Reader for KD8 Pro Modular Video Intercom - Hikvision

DS-KD-M M1 IP65 RFID Badge Reader for KD8 Pro Modular Video Intercom - Hikvision

 
-35%

DS-KD-M - The KD8 Pro Modular Door Station series badge reader module is designed for professional video intercom systems with access control via M1 RFID cards , allowing quick and secure door opening by simply swiping the badge. Equipped with IP65 protection, it is ideal for outdoor installations thanks to its high resistance to dust, water and harsh weather conditions. The Linux operating system with a high-performance embedded processor guarantees stability and perfect integration with Hikvision KD8 Pro modules. Thanks to the module's backlighting, RS-485 interface and low power consumption of only 0.8 W , it represents a modern, reliable and expandable solution for professional access control. Hikvision

Technical Data Sheet

referencia : DS-KD-M

brand : Hikvision

EAN: 6954273691516

Manufacturer Object ( [id] => 42 [name] => Hikvision [description] =>

Desde el año de su nacimiento, su prestigio ha crecido tanto que en 2015 se convertirá en la primera realidad mundial en materia de seguridad.

A partir de 2016 Hikvision expande su mercado convirtiéndose en Proveedor de Soluciones Totales para todo el mercado de la seguridad. Así entra en el mundo de la detección de intrusos y luego se acerca a las nuevas tecnologías e inteligencia al servicio de la humanidad ocupándose de IO, Visión Artificial, Robótica y Sistemas Automovilísticos. De líder en seguridad, Hikvision se convierte con compromiso, pasión y competencia en una empresa de alta tecnología con una visión 4.0, siempre apuntando alto.

Por lo tanto, Setik se siente honrado de ser un distribuidor de Hikvision. Como siempre, ofreceremos productos de última generación y el apoyo técnico y comercial adecuado.

[short_description] =>

Videosorveglianza Hikvision

Hikvision fue fundada en 2001 con el objetivo de crear y desarrollar soluciones profesionales completas de videovigilancia, convirtiéndose rápidamente en un líder en el mundo de la seguridad.

[id_address] => [date_add] => 2020-03-26 09:28:09 [date_upd] => 2024-06-06 12:13:26 [link_rewrite] => hikvision [meta_title] => Seguridad hikvision [meta_keywords] => Seguridad hikvision [meta_description] => Hikvision fue fundada en 2001 y pronto se convirtió en líder del mundo de la videovigilancia. Descubra ahora los productos del catálogo! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

DS-KD-M – KD8 PRO MODULAR DOOR STATION SERIES

Hikvision

The Hikvision DS-KD-M badge reader module from the KD8 Pro Modular Door Station series is the ideal solution for professional access control via M1 RFID cards , allowing quick and secure door opening with a simple swipe of the badge. Designed for outdoor installations, it integrates IP65 protection against water and dust, ensuring reliability even in harsh environments. The Linux operating system with a high-performance embedded processor guarantees operational stability and perfect integration with Hikvision KD8 Pro modules. Thanks to the integrated backlighting, RS-485 interface and low power consumption of only 0.8 W , it represents a modern, expandable and easy-to-use solution for advanced video intercom systems.

Main features:

- Integrated M1 RFID badge reader for quick and secure door opening via card

- Support for issuing and managing cards for professional access control systems

- IP65 protection resistant to dust, water and outdoor installations

- Linux system with embedded processor for stable and reliable operation

- Module backlighting for better visibility and use even at night

- Built-in RS-485 interface for integration with Hikvision KD8 Pro modular systems

- Flush or surface installation for maximum mounting flexibility

- Low energy consumption of 0.8W ideal for efficient and continuous systems

Further details

✅ Badge reader:
The Hikvision DS-KD-M module integrates an advanced M1 RFID reader designed to enable quick, secure, and contactless door opening via badge . This technology improves access management in homes, condominiums, and professional facilities, ensuring everyday convenience and greater security for the video intercom system.
✅ Card issuance and management support:
 The system supports the registration, issuance, and management of RFID cards , enabling flexible and organized access control. This feature allows you to easily authorize or revoke user badges, ideal for multi-user residential systems and advanced professional applications.
✅ Module backlight:
 Thanks to the integrated backlight , the badge reader ensures better visibility and more intuitive use even at night or in low-light environments. Light compensation also improves the module's aesthetics and the daily user experience.
✅ RS-485 Interface :
The presence of the integrated RS-485 port allows stable and reliable communication with other devices in the Hikvision KD8 Pro series, facilitating the integration of the badge reader into modular video intercom systems and expandable professional security systems.

Technical data sheet

DS-KD-M
System parameters
Operating system Embedded high performance processor
CPU Embedded MCU Processor
Device interfaces
Alarm input /
Network interface /
TAMPER /
Exit button /
RS-485 1
USB /
Wiegand /
TF card /
Alarm output /
Door contact input /
Power interface 1
General
Button /
Installation Flush mounting, surface mounting
Weight Net weight: 421 g
Gross weight: 160 g
Protective level IP65
Working temperature -40° C to +55° C(-40° F to 131° F)
Working humidity 10% to 95%
Dimensions 98.5 mm × 100 mm × 34.2 mm (3.87" × 3.95" × 1.33")
Battery /
Application environment Outdoor
Power consumption ≤ 0.8 W
