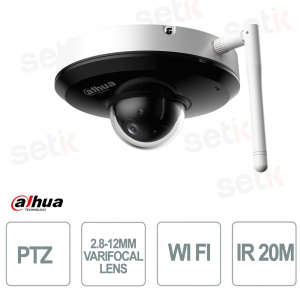

2MP WiFi Starlight IP PTZ camera WizSense dome varifocal 2.8-12 mm - Dahua

2MP WiFi Starlight IP PTZ camera WizSense dome varifocal 2.8-12 mm - Dahua

-57%

DAHUA SD1A204DB-GNY-W SD1 Series ONVIF PTZ WiFi 2MP outdoor IP camera, 2.8mm-12mm motorized lens with 4X optical zoom and 1/2.8" CMOS sensor with Starlight technology . Video compression up to H.265+, Triple Stream. WDR 120dB, Day/Night (ICR), Defog , ROI , Motion Detection, IR LED 20MT , Built-in microphone and Video Analysis. AI with perimeter protection, face detection and people counting . Micro SD slot (512GB).

65.4 mm × Φ128.0 mm (2.57" × 5.04")

referencia : SD1A204DB-GNY-W

brand : Dahua

EAN: 6923172590398

Disponibilità: 1

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

La empresa asiática, fundada en 2001, debe su reputación a la excelente calidad de sus productos en términos de rendimiento y capacidad. La gama de productos de Dahua abarca desde los sistemas clásicos de CCTV hasta los sistemas de seguridad más complejos y articulados: no sólo la videovigilancia, sino también el control de acceso, los sistemas de videoportería, los productos de detección térmica y mucho más. La fiabilidad, la tecnología de punta y los precios competitivos que ofrece Dahua son sólo algunas de las razones por las que Setik siempre ha elegido distribuir la marca. Dahua es desde hace años un sólido punto de referencia en el mercado internacional de los circuitos cerrados de televisión, gracias a las enormes inversiones que cada año se dedican a la investigación y el desarrollo. Las cifras hablan por sí mismas: desde 2016 hasta hoy Dahua ha registrado más de 800 patentes con su propia marca. Actualmente Dahua puede presumir de estar entre los 10 primeros líderes mundiales en el mundo de la seguridad. Este año Dahua fue premiado con el 2º puesto en el ranking "2019 TOP SECURITY 50".

Los productos de la marca Dahua vendidos por Setik SRL pueden ser entregados como productos OEM, es decir, productos que a todos los efectos son productos originales de Dahua, pero que tienen una apariencia estética diferente reservada para el mercado en línea (generalmente en términos de logotipo y embalaje). Esto no afecta en modo alguno a la garantía y a las características técnicas del producto, que es siempre genuino de Dahua, ni a las actualizaciones y la funcionalidad.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. es uno de los principales proveedores mundiales de soluciones de videovigilancia, con más de 13.000 empleados y 35 filiales activas en todo el mundo.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2026-02-03 15:34:06 [link_rewrite] => dahua [meta_title] => Los mejores productos Dahua: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Productos Dahua para la videovigilancia digital IP, HYBRIDA, HD-SDI, HDCVI, como cámaras, grabadoras, control de acceso, accesorios y videointercomunicadores wifi. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR


CAMERA - DAHUA-SD1A204DB-GNY-W OUTDOOR IP PTZ - 4X ZOOM - STARLIGHT - AUDIO - WIFI

Made by Setik
Dahua Outdoor ONVIF® WiFi PTZ IP Camera
2 Megapixel Resolution - 2.8-12mm Lens with 4X Optical Zoom - Starlight Technology
20MT IR Illuminator - Video Analysis - WDR 120dB - Integrated Audio and Microphone
MicroSD slot (up to 512 GB) - 24-month warranty

Product details


  • Dahua ONVIF® Outdoor IP Camera
  • 2 Megapixel resolution
  • 1/2.8" CMOS sensor  with Starlight Technology (Color Night Vision)
  • WiFi
  • Video compression up to H.265+
  • Triple Stream
  • ONVIF® compatible
  • 2.8-12mm varifocal lens (4x optical zoom + 16x digital zoom)
  • Video Analytics: (Line Crossing, Intrusion, Abandoned/Lost Objects, Face Detection)
  • WDR 120dB , Day/Night(ICR), Defog, ROI, Motion Detection
  • 20MT IR LED Illuminator
  • Audio Input / Output
  • Built-in microphone
  • Micro SD Memory (Max 512GB)
  • IP66 (Rain/Dust) and IK08 (Vandalism) protection
  • Power supply 12 VDC, 2 A ± 10% not included
  • Dimension: 65.4 mm × Φ128.0 mm (2.57" × 5.04")
  • 24 month warranty

Technical data sheet

Room

Image Sensor

1/2.8" CMOS

Pixel

2 MP

Max. Resolution

1920 (H) × 1080 (V)

ROM

256 MB

RAM

512 MB

Electronic Shutter Speed

1 s–1/30,000 s

Scanning System

Progressive

Min. Illumination

0.005 lux@F1.8 (Color, 30 IRE);
0.0005 lux@F1.8 (B/W, 30 IRE);
0 lux (illuminator on)

Illumination Distance

20 m (65.62 ft) (IR)

Illuminator On/Off Control

Manual; SmartIR; Off

Illuminator Number

3 (IR light)

Lens

Focal Length

2.8 mm–12 mm

Max. Openings

F1.8–F2.7

Field of View

H: 101.6°–51.9°; V: 53.1°–29.1°; D: 121.8°–59.7°

Optical Zoom

4x

Focus Control

Auto; semi-auto; manual

Close Focus Distance

0.2 m–0.5 m (0.66 ft–1.64 ft)

PTZ

Pan/Tilt Range

Pan: 0° to 355°;
Tilt: 5° to 90°

Manual Speed Control

Pan: 0.1°/s–70°/s;
Tilt: 0.1°/s–30°/s

Preset Speed

Pan: 0.1°/s–80°/s;
Tilt: 0.1°/s–40°/s

Presets

300

Tour

8 (up to 32 presets per tour)

Power-off Memory

Yes

Idle Motion

Preset; Tour

PTZ Protocol

DH-SD

Intelligence

IVS (Perimeter Protection)

Tripwire; intrusion; crossing fence detection; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; human alarm classification

Face Detection

Supports face detection, snapshot, and face enhancement; Supports face cutout: Face, one-inch photo; Capturing strategies include real-time capturing and quality first.

People Counting

Supports people counting, calculating the number of people in the area, and queue management. Only people counting supports the report function

SMD

Yes

Video

Video Compression

H.264H; H.264B; Smart H.265+; H.264; H.265; MJPEG (Sub Stream); Smart H.264+

Streaming Capability

3 streams

Resolution

1080p (1920 × 1080); 1.3M (1280×960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

Video Frame Rate

Main stream: 1080p/1.3M/720p@(1-25/30 fps)
Sub stream 1: D1/VGA/CIF@(1-25/30 fps)
Sub stream 2: 1080p/1.3M/720p@(1-25/30 fps)

Bit Rate Control

CBR/VBR

Video Bit Rate

H264: 64 Kbps–8,192 Kbps
H265: 25 Kbps–6,400 Kbps

Day/Night

ICR: Color; B/W; Auto;
Electronic: Color; B/W; Auto

BLC

Yes

WDR

120 dB

HLC

Yes

White Balance

Car; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp

Gain Control

Auto; manual; gain priority

Noise Reduction

2D NR; 3D NR

Motion Detection

Yes

Region of Interest (RoI)

Yes

Image Stabilization

Electronic Image Stabilization (EIS)

Defog

Electronic

Digital Zoom

16×

Image Rotation

180°

S/N Ratio

≥55 dB

Audio

Audio Compression

PCM; G.711A; G.711MU; G.726; MPEG2-Layer2; G.722.1

Network

Network Port

RJ-45 (10/100 Base-T)

Wi-Fi

Yes

Standard Wi-Fi

IEEE802.11b; IEEE802.11g; IEEE802.11n; IEEE802.11ax

Wi-Fi Frequency Range

2.4 GHz

Wi-Fi Transmission Rate

229 Mbps

Network Protocol

FTP; RTMP; IPv6; Bonjour; IPv4; DNS; RTCP; PPPoE; NTP; RTP; 802.1x; HTTPS; SNMP; TCP/IP; DDNS; UPnP; NFS; ICMP; UDP; IGMP; HTTP; SSL; DHCP; SMTP; Qos; RTSP; ARP

Interoperability

ONVIF (Profile S & Profile G & Profile T); CGI; SDK

User/Host

20 (total bandwidth: 64 M)

Storage

Micro SD card (512GB); FTP/SFTP; NAS

Browser

IE 9 and later versions;
Chrome 41 and later versions;
Firefox 50 and later versions;
Safari 10 and later versions

Management Software

DMSS; DSS Pro

Mobile Client

iOS; Android

Certification

Certifications

CE-EMC: EN 55032; EN 61000-3-3; EN 61000-3-2; EN
50130-4; EN 55035
CE-LVD: EN 62368-1
CE-RED:EN301489; EN300328; EN IEC 62311

Port

Audio Input

1 channel (LINE IN, bare wire)

Audio Output

1 channel (LINE OUT, bare wire)

Alarm Linkage

Capture; recording; send email; presets; tours

Alarm Event

Motion/tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection

Audio I/O

1/1

Power

Power Supply

12 VDC, 2 A ± 10%;

Power Consumption

Basic: 4 W;
Max: 13 W (illuminator on)

Environment

Operating Temperature

–30 °C to +60 °C (–22 °F to +140 °F)

Operating Humidity

≤95%

Protection

TVS 6000V lightning proof; IP66; IK08; surge protection; voltage transient protection

Structure

Product Dimensions

65.4 mm × Φ128.0 mm (2.57" × 5.04")

Net Weight

0.5 kg (1.10 lb)

Gross Weight

0.7 kg (1.54 lb)

Further details

ONVIF®

All Onvif cameras are the absolute standard for IP cameras. Being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a stand-alone camera that can never be used with recording systems.

This camera complies with the Onvif standard

PoE power supply The advantage of a PoE camera is clear, it allows it to be powered with the same cable with which it communicates without running additional power cables and without having to install a separate power system, a PoE camera guarantees constant voltages and simple installation.

H265+ Video Compressione

This camera provides video compression in H.264 format and up to H.265+ , the new standard for video compression!
Infrared Illuminator This camera is a PTZ , so it has Pan (Horizontal), Tilt (Vertical) and Zoom movement.

Pan/Tilt Range

Pan: 0° to 355°;
Tilt: 5° to 90°

Manual Speed Control

Pan: 0.1°/s–70°/s;
Tilt: 0.1°/s–30°/s

Preset Speed

Pan: 0.1°/s–80°/s;
Tilt: 0.1°/s–40°/s

Presets

300

Tour

8 (up to 32 presets per tour)

Power-off Memory

Yes

Idle Motion

Preset; Tour

PTZ Protocol

DH-SD

Risoluzione Full-HD 1920x1080

This camera features a resolution of 2Megapixel 1080P FULL-HD

Ottica varifocale 2.7-13.5mm

This camera features a 2.8mm-12mm varifocal lens with 4x Optical Zoom + 16x Digital Zoom

1/2.8" sensor with STARLIGHT technology.

Low brightness, visibility at 0.0001Lux, color vision even in night mode

Logo Starvis

With the addition of the STARLIGHT feature we have significant advantages:

- Back-illuminated structure with 2.9 µm-square unit pixels

- High sensitivity (twice or more times greater than other products on the market)

- Increased sensitivity when near an area covered by infrared light

- Supports WDR (Multiple Exposure WDR, DOL-WDR)

- Versatile interface (parallel CMOS, low voltage LVDS serial, MIPI CSI-2)

With the sensor it is possible to have color shots even in night mode.

Normally, when entering night mode, the color vision changes to black and white.

With the SENSOR present, night shots will be in color

Main stream: 1080p/1.3M/720p@(1-25/30 fps)
Sub stream 1: D1/VGA/CIF@(1-25/30 fps)
Sub stream 2: 1080p/1.3M/720p@(1-25/30 fps)

This camera provides VIDEO ANALYSIS:
- Line crossing recognition
- Intrusion recognition
- Recognition of lost and abandoned objects

Attraversamento linea - Video Analisi

This camera features ADVANCED INTELLIGENT FUNCTIONS:

- Face Detection

Video Analisi - Rilevamento Volto

Full HD

Remote visibility on mobile using Dahua's DMSS application.

IR LED illuminator with maximum range up to 20m (approximately)

Illuminatore Smart IR SD1A203T-GN

Audio in / outMicrofono integrato

This camera features Microphone/Audio Input , Audio Output
Funzione Motion Detection This camera features the Motion function by connecting it to a recording device with alarm inputs.
Funzione ROI This camera is equipped with ROI function.

Images from IP cameras are compressed, so the quality is set during recording. Especially with very high-resolution cameras, it's often necessary to reduce the quality to ensure less bandwidth usage and record a greater number of days or cameras.
The ROI allows you to define areas where you want to set a higher quality (for example, a door, the area where the license plate usually passes, an exit, etc.). In that area, I can set a higher quality , thus ensuring a higher image definition.
Ultra Smart Funzione ROI
DEFOG Function Icon Latest function present ONLY in the Sony Effio-V, allows you to clearly see images taken in particular weather conditions: rain, smoke and fog
DEFOG function example image
DEFOG function example image
Day/Night Function Icon Day/Night: allows you to adapt the lens to night/day vision, and the relative automatic management of the IR Illuminator, when present.
Example Day/Night Function
Funzione IR Cut Filter

The IR CUT FILTER is a mechanical filter that allows for correct image display in daytime conditions by filtering out typical infrared frequencies, thus improving image quality. At night, the filter is removed as it is necessary to capture typical IR frequencies.

Esempio Funzione IR Cut Filter

ULTRA WDR up to 120dB
WDR (Wide Dynamic Range): This is the professional solution when working in high-contrast light/shadow conditions. It's essential when shooting from inside to outside, license plates, shadowed areas, or any situation where there's uneven lighting.
The higher the dB value, the greater the camera's ability to handle the strong contrast of the backlight. Common WDRs typically reach 80 dB, while the human eye can detect a difference of up to 100 dB. This model reaches up to 120 dB, managing very high contrast levels.
Immagine esempio funzione WDR 120db
Messa a fuoco automatica

This camera has auto or manual focus

Slot per supporto micro sd This camera allows you to record what happens on Micro SD (Max 512Gb).
IP66_Waterproof Level of protection from heavy rain and dust in IP parameters.
12VDC_Power

12V DC power supply NOT included!

Dual Encoding This product is covered by a 24 month warranty.

Download

Download the English Brochure
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
