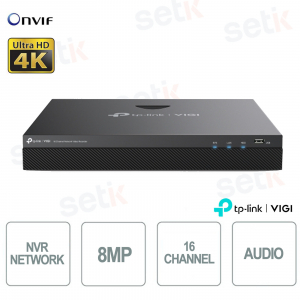

VIGI NVR2016H TP-Link VIGI NVR IP network 16 channels (2 channels 8MP / 4 channels 4MP / 8 channels 2MP), 80Mbps input bandwidth and 60Mbps output. H265+ compression, maximum resolution 8MP - 1x USB 2.0, 1x USB 3.0, 1 CH RCA audio in/out, 1x RS232, 1x HDMI, 1x VGA - supports 2HDD SATA up to 16TB - Motion detection, abandoned object detection, vehicle and person detection, smart frame. Dimensions: 330 × 285 × 45 mm
3 Years Warranty
LIQUIDACION TOTAL ×
 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

 VIGI NVR2016H NVR NETWORK TP LINK VIGI 16 CHANNELS 4K HDMI 8MP |

TP-Link VIGI 8MP IP network NVR 16 channels - VIGI NVR2016H
 Max Resolution 8MP - 16 channels (2 channels 8MP / 4 channels 4MP / 8 channels 2MP) - H.265+ Compression - Support 2 HDD up to 16TB - 80Mbps in 60Mbps out bandwidth - 1 Audio in/out
 1x USB 2.0, 1x USB 3.0, 1 CH RCA audio in/out, 1x RS232, 1x HDMI, 1x VGA
 Motion Detection - Abandoned Object Detection - Vehicle and Person Detection - Smart Frame
 Remote Monitoring - 3 Years Warranty
PRODUCT DETAILS

|| Technical Specifications:
- Video Resolution: H.265+/H.265/H.264+/H.264
- 16 Channel 4K HDMI 2 Channel 8MP / 4 Channel 4MP / 8 Channel 2MP
- 80 Mbps incoming bandwidth and 60 Mbps outgoing bandwidth
- Maximum resolution 8MP
- Ports: 1x USB 2.0, 1x USB 3.0, 1 CH RCA audio in/out, 1x RS232, 1x HDMI, 1x VGA
- Supports 2 HDDs up to 16TB
- Motion Detection - Abandoned Object Detection - Vehicle and Person Detection - Smart Frame
- Remote monitoring
- 3 years warranty
DATA SHEET
| VIDEO AND AUDIO | |
|---|---|
| IP Video Input | 16-Channel |
| Incoming Bandwidth | 80Mbps |
| Outgoing Bandwidth | 60Mbps |
| HDMI Output Resolution | 1 Channel, Resolution: 3840x2160/30Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz |
| VGA Output Resolution | 1 Channel, Resolution: 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz |
| Video Output Mode | HDMI/VGA Simultaneous Output |
| Multi-View Display | 1,4,6,8,9,16 |
| DECODING | |
| Audio Compression | G.711A/G.711U/G.726 |
| Video Compression | H.265+/H.265/ H.264+/H.264 |
| Record Resolution | 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Synchronous Playback | 16-Channel |
| Capability | 25fps: 2-ch @ 8MP, 4-ch @ 4MP, 8-ch @ 2MP 30fps: 4-ch @ 3MP, 2-ch @ 5MP |
| RECORD MANAGEMENT | |
| Record Mode |
 |
| Playback Mode |
 |
| Backup Mode |
 |
| Playback Function |
 |
| NETWORK | |
| Protocol | UPnP (Plug and Play), NTP (Network Timing), SMTP, DNS, TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, RTSP, SSL/TLS, RTP, IPv4, ARP |
| Mobile Phone Access | Android, iOS |
| Web Browser | Chrome (57+), Firefox (52+), Edge (91+) |
| Interoperability | ONVIF Profile S, CGI |
| EXTERNAL INTERFACE | |
| Network Interface | 1, RJ-45 10/100/1000Mbps Self-Adaptive Ethernet Interface |
| USB Interface | 1 Front USB 2.0 Ports, 1 Rear USB 2.0 Port |
| Audio Interface | 1-ch RCA Input; 1-ch RCA Output |
| Alarm In/Out | N/A |
| Serial Interface | N/A |
| Power | 1× DC Jack |
| Reset Button | 1 |
| Speaker | N/A |
| eSATA | 1 |
| HDMI | 1 |
| VGA | 1 |
| HARD DISK | |
| SATA | 2 SATA Interfaces |
| Capacity | Up to 16 TB Capacity for Each HDD |
| ALARM | |
| General Alarm |
 |
| Anomaly Alarm |
 |
| Alarm Linkage |
 |
| GENERAL | |
| Storage Temperature | -40–70 °C |
| Storage Humidity | 10%~90%RH Non-Condensing |
| Package Contents |
 |
| Working Temperature | NVR: -10–55 °C Power adapter: 0–40 °C |
| Working Humidity | 10%~90%RH Non-Condensing |
| Dimensions (L x W x H) | 330 × 285 × 45 mm |
| Net Weight | 1.9 Kg |
| Gross Weight | 3.2 Kg |
| Power Supply | 12V DC/3.3A |
| Power Consumption | 4.78W (Without Disk) 24.16W (With Disk) |
| Certifications | CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI |

|  |
 |
| Automatic initialization for quick setup
 | |
| 3 year warranty The following product is covered by a 3 year warranty | |
