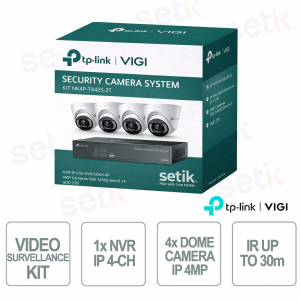

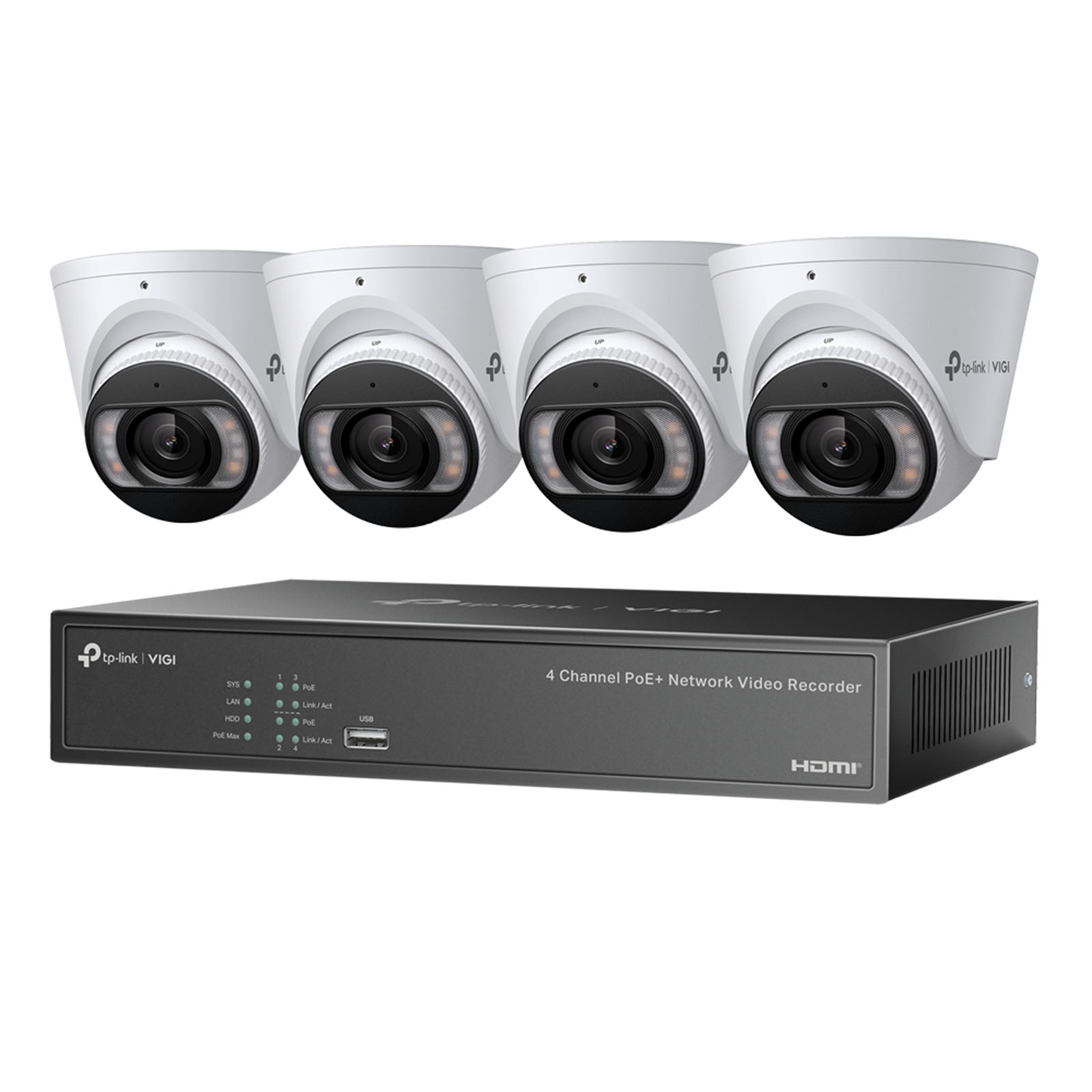

VIGI NK4P-T4425-2T TP-Link VIGI Video surveillance kit consisting of 4 S445(2.8mm) 4MP Full Color cameras 2.8mm fixed lens IR 30m IR 30m, IP67 + NVR1004H-4P 4-channel PoE+ 8MP IP NVR - 2x USB 2.0, 1x RJ-45, 1Ch in/out audio, 1x HDMI, 1x VGA - supports 1 SATA HDD up to 10TB
3 Years Warranty
LIQUIDACION TOTAL ×
 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

 VIGI NK4P-T4425-2T VIDEO SURVEILLANCE KIT 4 4MP CAMERAS - 4-CHANNEL NETWORK NVR POE+ 4K HDMI 8MP |

TP-Link VIGI NK4P-T4425-2T KIT 4 IP cameras S445(2.8mm) 4MP Full color IP fixed lens 2.8mm IR 30m, IP67 + NVR1004H-4P IP NVR 4 channels PoE+ 8MP - 2x USB 2.0, 1x RJ-45, 1Ch audio in/out, 1x HDMI, 1x VGA - supports 1 SATA HDD up to 10TB
 Remote Monitoring - 3 Years Warranty
PRODUCT DETAILS

|| Technical Specifications:
- 4 IP Cameras S445(2.8mm) 4MP IP Fixed Lens 2.8mm IR 30m, IP67, Full Color
- NVR1004H-4P IP NVR 4 channels PoE+ 8MP - 2x USB 2.0, 1x RJ-45, 1Ch audio in/out, 1x HDMI, 1x VGA - supports 1 SATA HDD up to 10TB
- Remote monitoring
- 3 years warranty
TECHNICAL DATA SHEET
| ROOM | |
|---|---|
| Image sensor | 1/2.7” Progressive Scan CMOS |
| Shutter Speed | 1/3 to 1/10000 s |
| Slow Shutter | Yes |
| Openings | F1.6 |
| Lenses | 2.8mm, Fixed Focal Lens |
| Lens Mount | M12*P 0.5 |
| FOV | Horizontal FOV: 100°, Vertical FOV: 54°, Diagonal FOV: 118° |
| Minimum brightness | 0.005 Lux; 0 Lux with IR/White Light |
| Day/night mechanism | IR Cut Filter |
| Day/Night Switch | Unified/ Scheduled/ Auto |
| White LED | Quantity: 4 Range: 30m |
| IR LED | Quantity: 4 Range: 30m Wavelength: 850nm |
| Illuminator On/Off Control | Auto/Scheduled/Always on/Always off |
| Max. Resolution | 2688 x 1520 |
| Main Stream | Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 2688x1520, 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720 Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. |
| Sub Stream | Frame Rate 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 704x576,640x480, 352x288, 320x240 Notes If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. |
| Video Compression | Main Stream: H.265+/H.265/H.264+/H.264 Sub Stream: H.265/H.264 |
| Operating Temperature | -30–60 °C |
| Operating Humidity | 95% or Less (Non-Condensing) |
| Power Supply | 12V DC ± 5%, Max. 11 W, 5.5 mm Coaxial Power Plug PoE: 802.3af/at, class 0, Max. 12W |
| Weatherproof Rating | IP67 |
| NVR | |
| IP Video Input | 4-Channel |
| Incoming Bandwidth | 80Mbps |
| Outgoing Bandwidth | 60Mbps |
| HDMI Output Resolution | 1 Channel, Resolution: 3840x2160/30Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz |
| VGA Output Resolution | 1 Channel, Resolution: 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz |
| Video Compression | H.265+/H.265/ H.264+/H.264 |
| Record Resolution | 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/ 2CIF/CIF/ QCIF |
| Synchronous Playback | 4-Channel |
| Decoding Capability | 25fps: 2-ch @ 8MP, 4-ch @ 4MP 30fps: 4-ch @ 4MP, 3-ch @ 5MP |
| Hard Disk | 1 SATA Interface Up to 10 TB Capacity for Each HDD 1 × 2TB HDD Pre-installed |
| PoE Budget | 53 W Available for All PoE+ Ports†, 30 W Max per Port |
| Power Supply | 53.5V DC/1.31A |
| Working Temperature | NVR: -10–55 °C Power adapter: 0–40 °C |
| Working Humidity | 10%~90%RH Non-Condensing |

|  |
 |
| Plug-and-Play Video Surveillance Solutions
 | |
| 3 year warranty The following product is covered by a 3 year warranty | |
