AcuSense 8-Channel DVR with AI, H.265 Pro+, 5-in-1, Vehicle/Human Detection and Remote Access - Hikvision

AcuSense 8-Channel DVR with AI, H.265 Pro+, 5-in-1, Vehicle/Human Detection and Remote Access - Hikvision

 
BEST PRICE -35% nuevo

iDS-7208HQHI-M1/XT - AcuSense series 8-channel DVR with 5-in-1 support (TVI, AHD, CVI, CVBS, IP) and resolution up to 5MP Lite. Thanks to artificial intelligence, it accurately detects people and vehicles, reducing false alarms. H.265 Pro+ video compression to optimize storage and bandwidth. HDMI/VGA outputs, audio on all channels, up to 10TB of storage. Remote access with Hik-Connect app, ideal for professional systems and hybrid systems.

Technical Data Sheet



referencia : iDS-7208HQHI-M1/XT

brand : Hikvision

EAN: 6942160473802

Manufacturer Object ( [id] => 42 [name] => Hikvision [description] =>

Desde el año de su nacimiento, su prestigio ha crecido tanto que en 2015 se convertirá en la primera realidad mundial en materia de seguridad.

A partir de 2016 Hikvision expande su mercado convirtiéndose en Proveedor de Soluciones Totales para todo el mercado de la seguridad. Así entra en el mundo de la detección de intrusos y luego se acerca a las nuevas tecnologías e inteligencia al servicio de la humanidad ocupándose de IO, Visión Artificial, Robótica y Sistemas Automovilísticos. De líder en seguridad, Hikvision se convierte con compromiso, pasión y competencia en una empresa de alta tecnología con una visión 4.0, siempre apuntando alto.

Por lo tanto, Setik se siente honrado de ser un distribuidor de Hikvision. Como siempre, ofreceremos productos de última generación y el apoyo técnico y comercial adecuado.

[short_description] =>

Videosorveglianza Hikvision

Hikvision fue fundada en 2001 con el objetivo de crear y desarrollar soluciones profesionales completas de videovigilancia, convirtiéndose rápidamente en un líder en el mundo de la seguridad.

[id_address] => [date_add] => 2020-03-26 09:28:09 [date_upd] => 2024-06-06 12:13:26 [link_rewrite] => hikvision [meta_title] => Seguridad hikvision [meta_keywords] => Seguridad hikvision [meta_description] => Hikvision fue fundada en 2001 y pronto se convirtió en líder del mundo de la videovigilancia. Descubra ahora los productos del catálogo! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

LIQUIDACION TOTAL ×

 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

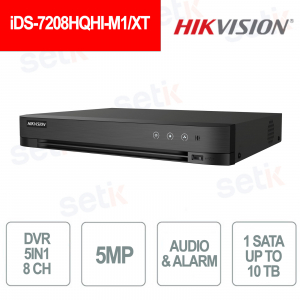

iDS-7208HQHI-M1/XT – 8 CHANNEL DVR WITH AUDIO SUPPORT 5MP AND AI

Hikvision

iDS-7208HQHI-M1/XT - DVR is a powerful 8-channel hybrid recorder from the AcuSense series, ideal for professional video surveillance systems. Compatible with analog HDTVI, AHD, CVI, CVBS and IP cameras, it supports up to 8 BNC channels plus 4 IP channels, offering maximum flexibility. Thanks to AcuSense artificial intelligence, it allows accurate detection of vehicles and people, drastically reducing false alarms. Equipped with H.265 Pro+ compression for optimal storage and bandwidth management, the device integrates HDMI and VGA video outputs, audio on all channels, intelligent search, remote access via Hik-Connect and capacity of up to 10TB of storage. It is the perfect solution for commercial, industrial and high-security residential environments.

Further details

✅ 8 BNC video channels + 4 IP channels (up to 12 channels total)
✅ Support 5 technologies : HDTVI, AHD, HDCVI, CVBS analog and IP
✅ Resolution up to 5MP Lite on analog channels
✅  AcuSense AI technology with human/vehicle detection
✅ False alarm reduction through AI object classification
✅ H.265 Pro+ video compression for bandwidth and space saving
✅ Intelligent analysis for fast and accurate event search
✅ HDMI video output up to 4K + VGA output
✅ Audio on all channels with RCA input/output
✅ SATA slot for HDD up to 10TB
✅ 2 USB ports (1x2.0 + 1x3.0) for quick backup and management
✅ Remote access via Hik-Connect App, web browser, and iVMS software
✅ Support P2P, DDNS, simple cloud management
✅ Intuitive and multilingual user interface
✅ Motion detection, video anomaly management and masking
✅ Compact design for desktop or rack mounting

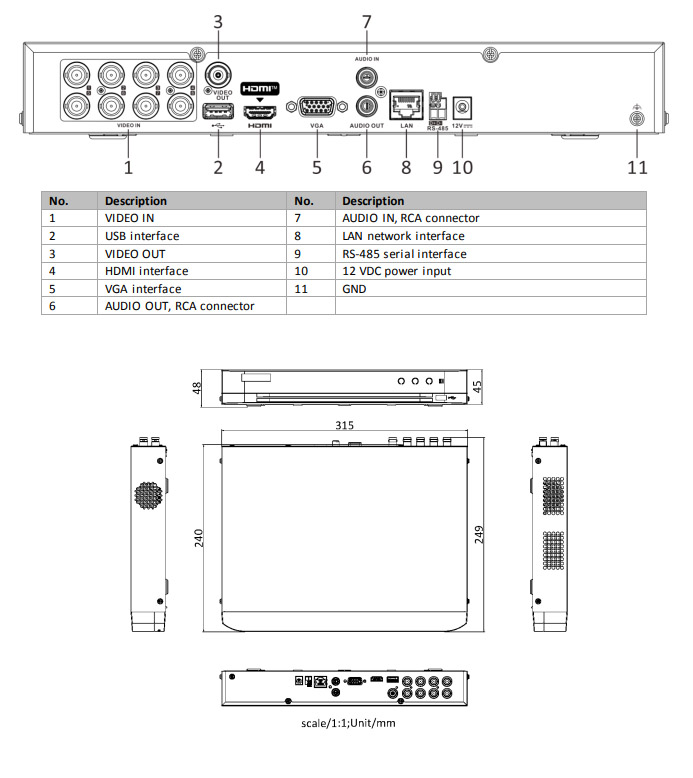

iDS-7208HQHI-M1-XT dimensions

Technical data sheet

Model iDS-7208HQHI-M1/XT
Facial Recognition
Face Picture Comparison

Face picture comparison, face picture search (2-ch face picture comparison alarm for HD analog camera)
Face Picture Library Up to 16 face picture libraries
Motion Detection 2.0
Human/Vehicle Analysis

Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;
Quick search by object or event type is supported;
Perimeter Protection
Human/Vehicle Analysis Up to 4-ch
Note: Face picture comparison, motion detection 2.0 and perimeter protection cannot be enabled at the same time. Enable one function will make the other two unavailable.
Video and Audio
IP Video Input 4-ch (up to 12-ch), Up to 6 MP resolution
Analog Video Input 8-ch
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDTVI Input 8 MP(3840 × 2160)@12/15 fps, 3K(2960 × 1665)@25/20 fps,3K(3328x1504)@20fps,5MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30fps, 720P@25/30fps
AHD Input 5MP(2560×1944)@20fps, 4MP(2560×1440)@25/30fps,1080P@25/30fps, 720P@25/30fps
HDCVI Input 3K(2880×1620)@25fps, 5MP(2592×1944)@20fps, 4MP(2560×1440)@25/30fps,1080P@25/30fps, 720P@25/30fps
CVBS Input PAL/NTSC
HDMI Output 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, HDMI/VGA simultaneous output
VGA Output 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, HDMI/VGA simultaneous output
CVBS Output 1-ch, BNC (1.0 Vp-p, 75 Ω),
resolution: PAL: 704 × 576, NTSC: 704 × 480
Audio Input 8-ch, RCA (2.0 Vp-p, 1 KΩ), 8-ch via coaxial cable;4-ch, RCA (2.0 Vp-p, 1 KΩ), 8-ch via coaxial cable;1-ch (up to 8-ch is optional), RCA (2.0 Vp-p, 1 KΩ),8-ch via coaxial cable
Audio Output 1-ch, RCA (Linear, 1KΩ)
Two-Way Audio 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
Synchronous playback 8-ch
Recording
Video Compression H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding Resolution When 1080p Lite mode is not enabled:
3K lite/5MP lite/4MP lite/1080p/720p/VGA/WD1/4CIF/CIF;
When 1080p Lite mode is enabled:
3K lite/5MP lite/4MP lite/1080p lite/720p lite/VGA/WD1/4CIF/CIF
Frame Rate Main stream:
When 1080p Lite mode not enabled:
For 3K stream access: 3K lite@12fps;4 MP
lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fps
For 5 MP stream access: 5 MP lite@12fps;4 MP
lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fps
For 4 MP stream access: 4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
When 1080p Lite mode is enabled:
3K lite/5 MP lite@12fps;4 MP lite@15fps;1080p lite/720p
lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
Substream:
WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)
Video Bitrate 32Kbps to 6Mbps
Dual stream Support main stream or sub stream
Stream Type Video, Video & Audio
Audio Compression G.711u
Audio Bitrate 64Kbps
Network
Total Bandwidth 96Mbps
Network Protocol TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Remote Connection 64
Network Interface 1, RJ45 10/100Mbps self-adaptive Ethernet interface
Wi-Fi Connectable to Wi-Fi network by Wi-Fi dongle through USB interface
Auxiliary Interface
SATA 1 SATA interface, up to 10 TB capacity for each disk
Serial Interface RS-485 (half duplex)
USB Interface Front panel: 1 × USB 2.0;
Rear panel: 1 × USB 2.0
Alarm In/Out 8/4;N/A (optional to support);4/1
General
Power Supply 12VDC, 1.5A
consumption ≤ 18W (without HDD)
Working Temperature -10 °C to 55 °C (14 °F to 131 °F)
Working Humidity 10% to 90%
Dimensions 319 × 236 × 48 mm (12.6 × 9.3 × 1.9 inch)
Weight ≤ 1.78 kg (3.9 lb) (without HDD)
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
