AcuSense 5MP 16-Channel DVR with AI, H.265 Pro+, PoC, Vehicle/Human Detection and Remote Access - Hikvision

AcuSense 5MP 16-Channel DVR with AI, H.265 Pro+, PoC, Vehicle/Human Detection and Remote Access - Hikvision

 
BEST PRICE -35% nuevo

iDS-7216HUHI-M2/PXT/4A+4/1ALM - AcuSense Series 16-channel BNC IP DVR with up to 5MP resolution. Equipped with artificial intelligence, it accurately detects people and vehicles, reducing false alarms. Supports TVI, AHD, CVI, CVBS and IP signals with H.265 Pro+ compression for space saving. Includes PoC power, HDMI/VGA outputs, audio on all channels and remote access via Hik-Connect. Ideal for professional and complex systems.

Technical Data Sheet



referencia : iDS-7216HUHI-M2/PXT/4A+4/1ALM

brand : Hikvision

EAN: 6942160408514

Manufacturer Object ( [id] => 42 [name] => Hikvision [description] =>

Desde el año de su nacimiento, su prestigio ha crecido tanto que en 2015 se convertirá en la primera realidad mundial en materia de seguridad.

A partir de 2016 Hikvision expande su mercado convirtiéndose en Proveedor de Soluciones Totales para todo el mercado de la seguridad. Así entra en el mundo de la detección de intrusos y luego se acerca a las nuevas tecnologías e inteligencia al servicio de la humanidad ocupándose de IO, Visión Artificial, Robótica y Sistemas Automovilísticos. De líder en seguridad, Hikvision se convierte con compromiso, pasión y competencia en una empresa de alta tecnología con una visión 4.0, siempre apuntando alto.

Por lo tanto, Setik se siente honrado de ser un distribuidor de Hikvision. Como siempre, ofreceremos productos de última generación y el apoyo técnico y comercial adecuado.

[short_description] =>

Videosorveglianza Hikvision

Hikvision fue fundada en 2001 con el objetivo de crear y desarrollar soluciones profesionales completas de videovigilancia, convirtiéndose rápidamente en un líder en el mundo de la seguridad.

[id_address] => [date_add] => 2020-03-26 09:28:09 [date_upd] => 2024-06-06 12:13:26 [link_rewrite] => hikvision [meta_title] => Seguridad hikvision [meta_keywords] => Seguridad hikvision [meta_description] => Hikvision fue fundada en 2001 y pronto se convirtió en líder del mundo de la videovigilancia. Descubra ahora los productos del catálogo! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

LIQUIDACION TOTAL ×

 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

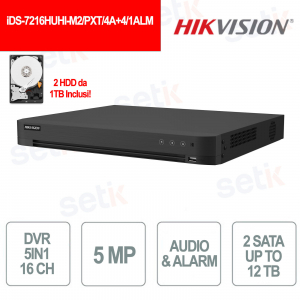

iDS-7216HUHI-M2/PXT/4A+4/1ALM – 16 CHANNEL DVR WITH 5MP AUDIO AND AI SUPPORT

Hikvision

iDS-7216HUHI-M2/PXT/4A+4/1ALM -  The AcuSense series DVR is a high-performance professional solution for complex video surveillance systems. Equipped with 16 analog BNC channels expandable with IP channels, it supports resolutions up to 5MP and integrates advanced AI functions for precise detection of people and vehicles, reducing false alarms. Compatible with TVI, AHD, CVI, CVBS and IP signals, it includes PoC (Power over Coax) technology that allows you to power the cameras directly via coaxial cable. H.265 Pro + compression ensures efficient space and bandwidth management. HDMI and VGA video outputs, audio on all channels, remote access via Hik-Connect and intelligent event search functions complete this reliable and scalable solution for advanced security.

Further details

✅ 16 BNC channels + 8 IP channels (up to 24 total video channels)
✅ Resolution supported up to 5MP on analog
✅ AcuSense technology with advanced AI for people and vehicle detection
✅ Compatible with 5 video signals: TVI, AHD, CVI, CVBS, IP
✅  PoC (Power over Coax) technology to power cameras via coaxial
✅ H.265 Pro+ compression for bandwidth and storage optimization
✅ HDMI video output up to 4K + VGA simultaneous
✅ Audio on all BNC channels, with RCA input/output
✅ 2 SATA slots for hard drives up to 12TB
✅ Backup via USB 2.0 and USB 3.0
✅ Smart event search with AI filters
✅ Motion detection, video masking, signal loss
✅ Intuitive and multilingual user interface
✅ Remote access via Hik-Connect app, browser or iVMS-4200 software
✅ P2P, DDNS and cloud support for easy management
✅ Ideal for large-scale residential, commercial and industrial installations
iDS-7216HUHI-M2-PXT-4A+4-1ALM dimensions

Technical data sheet

Model iDS-7216HUHI-M2/PXT/4A+4/1ALM
Facial Recognition
Face Picture Library Up to 16 face picture libraries;
HDD damage will not cause data loss in the face picture library, because the library
has been backed up by HDD and flash.
Face Picture Comparison

4-ch face picture comparison alarm (HD analog camera)
Motion Detection 2.0
Human/Vehicle Analysis

Deep learning-based motion detection 2.0 is enabled by default for all analog channels,
it can classify human and vehicle, and extremely reduce false alarms caused by objects
like leaves and lights; Quick search by object or event type is supported;
Perimeter Protection
Human/Vehicle Analysis Up to 8-ch (advanced model)
Facial Detection
Facial Detection and Capture Face picture detection, face picture search:
4-ch face image capture
Video and Audio
IP Video Input 16-ch (up to 32-ch), each up to 8MP
Analog Video Input 16-ch
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDMI Output 1-ch, 4K (3840 × 2160)/30Hz,
2K (2560 × 1440)/60Hz,
1920 × 1080/60Hz,
1280 × 1024/60Hz,
1280 × 720/60Hz
HDMI/VGA simultaneous output
VGA Output 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz HDMI/VGA simultaneous output
CVBS Input PAL/NTSC
CVBS Output 1-ch, BNC (1.0 Vp-p, 75 Ω),
resolution: PAL: 704 × 576, NTSC: 704 × 480
Synchronous playback 16-ch
HDTVI Input 8 MP(3840 × 2160)@12/15 fps, 3K(2960 × 1665)@25/20 fps,3K(3328x1504)@20fps, 5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30fps, 720P@25/30fps
AHD Input 5MP(2560×1944)@20fps, 4MP(2560×1440)@25/30fps,1080P@25/30fps, 720P@25/30fps
HDCVI Input 8 MP(3840 × 2160)@12/15 fps, 3K(2880 × 1620)@25fps, 5 MP(2592 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps
Audio Input 4-ch (up to 16-ch is optional), RCA (2.0 Vpp,1 KΩ), 16-ch via coaxial cable
Audio Output 1-ch, RCA (Linear, 1KΩ)
Two-Way Audio 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
Recording
Video Compression H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding Resolution 8MP/5MP/3K/4MP/3MP/1080p/720p/WD1/4CIF/VGA/CIF
Frame Rate Main stream:
8 MP@8 fps/3K@12 fps/5 MP@12 fps/4 MP@15 fps/8 MP Lite@15 fps/3 MP@18 fps
1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
Substream:
WD1/4CIF/CIF@25 fps (P)/30 fps (N)
Video Bitrate 32Kbps to 10Mbps
Dual stream Support main stream or sub stream
Stream Type Video, Video & Audio
Audio Compression G.711u
Audio Bitrate 64Kbps
Decoding
Decoding Capability up to 24-ch 1080P@30fps
Network
Total Bandwidth 256 Mbps
Network Protocol TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF, ISUP
Remote Connection 128
Network Interface 1, RJ45 10M/100M/1000M self-adaptive Ethernet interface
Auxiliary Interface
SATA 2 SATA interfaces,
Capacity up to 12 TB capacity for each disk
Serial Interface RS-485 (half duplex)
USB Interface Front panel: 1 × USB 2.0;
Rear panel: 1 × USB 2.0
Alarm In/Out 4/1
General
Power Supply 100 to 240 VAC, 50 to 60 Hz
consumption ≤ 20W (without HDD)
Working Temperature -10 °C to 55 °C (14 °F to 131 °F)
Working Humidity 10% to 90%
Dimensions 384 × 313 × 52 mm (15.1 × 12.3 × 2.0 inch)
Weight ≤ 2.1kg (4.6lb)
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
