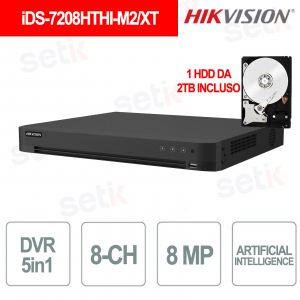

iDS-7208HTHI-M2/XT DVR AcuSense 8CH 8MP 4K AI Face Recognition H.265 Pro+ + 2 TB HDD Included - Hikvision

iDS-7208HTHI-M2/XT DVR AcuSense 8CH 8MP 4K AI Face Recognition H.265 Pro+ + 2 TB HDD Included - Hikvision

 
-35%

iDS-7208HTHI-M2/XT - AcuSense DVR is a professional 8-channel HDTVI/AHD/CVI/CVBS/IP video recorder designed for intelligent video surveillance systems with support for up to 16 8MP 4K IP cameras . Thanks to AcuSense Deep Learning AI technology, it integrates advanced facial recognition , perimeter protection , Motion Detection 2.0 and AcuSearch functions for precise video management and false alarm reduction. H.265 Pro+ compression optimizes storage space and bandwidth, while HDTVI two-way audio support improves real-time control. Equipped with dual SATA interface up to 12TB per HDD with 1 2TB HDD included , 4K HDMI output and 5in1 HDTVI/AHD/CVI/CVBS/IP compatibility, it represents an ideal solution for advanced professional security. Hikvision

Technical Data Sheet

referencia : iDS-7208HTHI-M2/XT

brand : Hikvision

EAN: 6936422107376

Manufacturer Object ( [id] => 42 [name] => Hikvision [description] =>

Desde el año de su nacimiento, su prestigio ha crecido tanto que en 2015 se convertirá en la primera realidad mundial en materia de seguridad.

A partir de 2016 Hikvision expande su mercado convirtiéndose en Proveedor de Soluciones Totales para todo el mercado de la seguridad. Así entra en el mundo de la detección de intrusos y luego se acerca a las nuevas tecnologías e inteligencia al servicio de la humanidad ocupándose de IO, Visión Artificial, Robótica y Sistemas Automovilísticos. De líder en seguridad, Hikvision se convierte con compromiso, pasión y competencia en una empresa de alta tecnología con una visión 4.0, siempre apuntando alto.

Por lo tanto, Setik se siente honrado de ser un distribuidor de Hikvision. Como siempre, ofreceremos productos de última generación y el apoyo técnico y comercial adecuado.

[short_description] =>

Videosorveglianza Hikvision

Hikvision fue fundada en 2001 con el objetivo de crear y desarrollar soluciones profesionales completas de videovigilancia, convirtiéndose rápidamente en un líder en el mundo de la seguridad.

[id_address] => [date_add] => 2020-03-26 09:28:09 [date_upd] => 2024-06-06 12:13:26 [link_rewrite] => hikvision [meta_title] => Seguridad hikvision [meta_keywords] => Seguridad hikvision [meta_description] => Hikvision fue fundada en 2001 y pronto se convirtió en líder del mundo de la videovigilancia. Descubra ahora los productos del catálogo! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

iDS-7208HTHI-M2/XT – 8-CHANNEL ACUSENSE DVR – 8MP RESOLUTION – TWO-WAY AUDIO

Hikvision

The Hikvision iDS-7208HTHI-M2/XT AcuSense DVR is a professional 8-channel HDTVI/AHD/CVI/CVBS/IP video recorder designed for intelligent video surveillance systems with support for up to 16 8MP 4K IP cameras . Thanks to AcuSense Deep Learning AI technology, it integrates advanced facial recognition , perimeter protection , Motion Detection 2.0 and AcuSearch functions for precise video management and false alarm reduction. H.265 Pro+ compression optimizes storage space and bandwidth, while HDTVI two-way audio support improves real-time control. Equipped with dual SATA interfaces up to 12TB per HDD with 1 x 2TB HDD included , 4K HDMI output and 5in1 HDTVI/AHD/CVI/CVBS/IP compatibility, it represents an ideal solution for advanced professional security.

Main features:

- AcuSense Professional 8-Channel DVR

- Support up to 16 IP cameras

- Camera compatibility up to 8MP 4K

- AI Deep Learning AcuSense technology

- Facial recognition up to 4 channels

- Intelligent perimeter protection up to 8 channels

- Motion Detection 2.0 human/vehicle

- AcuSearch AI Technology

- H.265 Pro+ video compression

- Recording up to 4K Ultra HD

- Synchronized playback up to 8 channels

- HDTVI two-way audio

- Support Intelligent Motion Detection

- 2 SATA interfaces up to 12TB for HDD

- RJ45 Gigabit Ethernet port

- HDTVI/AHD/CVI/CVBS/IP 5in1 compatibility

- Remote management via Hik-Connect and ONVIF

- Support Hik-Connect, ONVIF and DDNS

- Simultaneous HDMI 4K and VGA video output

Further details

✅ Number of Channels:
 Hikvision DVR supports 8 channels of analog HDTVI/AHD/CVI/CVBS with expansion up to 16 x 8MP IP cameras , providing a professional and scalable solution for advanced video surveillance systems.
✅ Resolution :
 Compatible with up to 8MP 4K Ultra HD recording, it guarantees extremely detailed images and smooth playback of up to 24 channels Full HD 1080p@30fps , ideal for high-precision professional monitoring.
✅ Perimeter Protection :
The AI intelligent perimeter protection feature uses deep learning algorithms to distinguish people and vehicles from irrelevant movements, dramatically reducing false alarms caused by leaves, lights, or environmental events.
✅ Facial Detection :
The system integrates advanced Face Detection and Face Capture functions with intelligent face detection and search, supporting up to 4 channels of face capture for security and access control applications.
✅ Facial Recognition :
Thanks to AI facial recognition , the DVR supports image comparison and management of up to 16 facial libraries , improving subject identification and speed of investigative searches.
✅ Motion Detection 2.0 :
Deep learning- based Motion Detection 2.0 technology automatically classifies people and vehicles across all analog channels, improving alarm accuracy and event search speed.
✅ Video and Audio :
It supports advanced H.265 Pro+ compression, 4K HDMI video output, HDTVI two-way audio, and simultaneous audio/video recording, ensuring high performance and optimized storage space.
✅ Network :
 Equipped with 10/100/1000 Mbps RJ45 Gigabit Ethernet port, it supports professional protocols such as ONVIF, HTTPS, Hik-Connect, DDNS, ISUP and TCP/IP , enabling secure remote management and advanced IP integration.
✅ Interfaces :
The DVR features simultaneous HDMI/VGA outputs, USB 2.0 and USB 3.0 ports, RS-485 interface and dual SATA connections up to 12TB per disk , ideal for professional high-capacity installations.
✅ 5in1 Technology :
 5in1 HDTVI/AHD/CVI/CVBS/IP compatibility ensures maximum installation flexibility and system upgrades without replacing existing infrastructure.

Technical data sheet

iDS-7208HTHI-M2/XT
Perimeter Protection
Human/Vehicle Analysis Up to 8-ch (advanced model)
Facial Detection
Facial Detection and Capture Face picture detection, face picture search；
4-ch face picture capture
Facial Recognition
Face Picture Library Up to 16 face picture libraries
HDD damage will not cause data loss in the face picture library, because the library has been backed up by HDD and flash.
Face Picture Comparison 4-ch face picture comparison alarm (HD analog camera)
Motion Detection 2.0
Human/Vehicle Analysis Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;
Quick search by object or event type is supported;
Video and Audio
IP Video Input 8-ch (up to 16-ch), Up to 8 MP resolution
Analog Video Input 8-ch
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDMI Output 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
VGA Output 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz HDMI/VGA simultaneous output
CVBS Input PAL/NTSC
CVBS Output 1-ch, BNC (1.0 Vp-p, 75 Ω),
resolution: PAL: 704 × 576, NTSC: 704 × 480
Synchronous playback 8-ch
HDTVI Input 8 MP(3840 × 2160)@12/15 fps, 3K(2960 × 1665)@25/20 fps,3K(3328x1504)@20fps,2K(2304x1296)@20fps,5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30fps,1080P@25/30fps, 720P@25/30fps
AHD Input 5MP(2560×1944)@20fps, 4MP(2560×1440)@25/30fps,1080P@25/30fps, 720P@25/30fps
HDCVI Input 8 MP(3840 × 2160)@12/15 fps, 3K(2880 × 1620)@20/25 fps, 5 MP(2592 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps, 1080P@25/30 fps, 720P@25/30fps
Audio Output 1-ch, RCA (Linear, 1 KΩ)
Audio Input 1-ch(up to 8-ch is optional), RCA (2.0 Vp-p, 1 KΩ), 8-ch via coaxial cable
Two-Way Audio 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
Recording
Video Compression H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding Resolution Main stream:
8 MP@12/15 fps/3K@25/20 fps/5 MP@20 fps/4MP/1080P@25 fps (P)/30 fps (N)
Substream:
WD1/4CIF/CIF@25 fps (P)/30 fps (N)
Video Bitrate 32 Kbps to 16 Mbps
Dual-stream Support main stream or sub stream
Stream Type Video, Video & Audio
Audio Compression G.711u
Audio Bitrate 64 Kbps
Decoding
Decoding Capability up to 24-ch 1080P@30fps
Network
Total Bandwidth 256 Mbps
Network Protocol TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF, ISUP
Remote Connection 64
Network Interface 1, RJ45 10/100/1000Mbps self-adaptive Ethernet interface
Auxiliary Interface
SATA 2 SATA interface
Capacity up to 12 TB capacity for each disk
Serial Interface RS-485 (half-duplex)
Alarm In/Out 8/4
USB Interface Front panel: 1 × USB 2.0;
Rear panel: 2 × USB 3.0
General
Power Supply 12 VDC, 5 A
Consumption ≤ 15 W (without HDD)
Working Temperature -10 °C to 55 °C (14 °F to 131 °F)
Working Humidity 10 to 90%
Dimensions (W × D × H) 384 × 313 × 52 mm (15.1 × 12.3 × 2.0 inch)
Weight ≤ 1.78 kg (3.9 lb)
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
