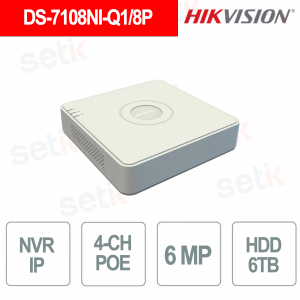

DS-7108NI-Q1/8P NVR 8 IP Channels PoE up to 6MP H.265+ HDD 6TB Hik-Connect - Hikvision

DS-7108NI-Q1/8P NVR 8 IP Channels PoE up to 6MP H.265+ HDD 6TB Hik-Connect - Hikvision

 
BEST PRICE -35%

DS-7108NI-Q1/8P - The Hikvision NVR is an 8-channel IP network video recorder with 8 integrated PoE ports , designed for video surveillance systems up to 6 MP . It supports H.265+/H.265/H.264+/H.264 compression, bandwidth up to 60 Mbps input and 60 Mbps output and playback of up to 4 channels 1080p . It integrates 1 SATA interface for HDD up to 6 TB , simultaneous HDMI and VGA outputs and PoE power supply compliant with IEEE 802.3af/at standards up to 75 W. Smart functions include line crossing detection, intrusion detection, Smart Search and Smart Playback , with remote management via Hik-Connect . Hikvision

USE CODE SIGCH886 FOR FREE SHIPPING!

Technical Data Sheet

referencia : DS-7108NI-Q1/8P

brand : Hikvision

EAN: 6942160417103

Manufacturer Object ( [id] => 42 [name] => Hikvision [description] =>

Desde el año de su nacimiento, su prestigio ha crecido tanto que en 2015 se convertirá en la primera realidad mundial en materia de seguridad.

A partir de 2016 Hikvision expande su mercado convirtiéndose en Proveedor de Soluciones Totales para todo el mercado de la seguridad. Así entra en el mundo de la detección de intrusos y luego se acerca a las nuevas tecnologías e inteligencia al servicio de la humanidad ocupándose de IO, Visión Artificial, Robótica y Sistemas Automovilísticos. De líder en seguridad, Hikvision se convierte con compromiso, pasión y competencia en una empresa de alta tecnología con una visión 4.0, siempre apuntando alto.

Por lo tanto, Setik se siente honrado de ser un distribuidor de Hikvision. Como siempre, ofreceremos productos de última generación y el apoyo técnico y comercial adecuado.

[short_description] =>

Videosorveglianza Hikvision

Hikvision fue fundada en 2001 con el objetivo de crear y desarrollar soluciones profesionales completas de videovigilancia, convirtiéndose rápidamente en un líder en el mundo de la seguridad.

[id_address] => [date_add] => 2020-03-26 09:28:09 [date_upd] => 2024-06-06 12:13:26 [link_rewrite] => hikvision [meta_title] => Seguridad hikvision [meta_keywords] => Seguridad hikvision [meta_description] => Hikvision fue fundada en 2001 y pronto se convirtió en líder del mundo de la videovigilancia. Descubra ahora los productos del catálogo! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

DS-7108NI-Q1/8P – 8-CHANNEL IP POE NVR - 6MP RESOLUTION

Hikvision

USE CODE SIGCH886 FOR FREE SHIPPING!

The Hikvision DS-7108NI-Q1/8P NVR is an 8-channel IP network video recorder with 8 built-in PoE ports , ideal for video surveillance systems with cameras up to 6 MP . It supports H.265+/H.265/H.264+/H.264 compression, bandwidth up to 60 Mbps input and 60 Mbps output and playback of up to 4 channels 1080p . It integrates 1 SATA interface for HDD up to 6 TB , simultaneous HDMI and VGA outputs and IEEE 802.3af/at PoE power supply up to 75 W. Smart functions include line crossing detection, intrusion detection, Smart Search and Smart Playback , with remote management via Hik-Connect .

Main features:

  • IP Channels: 8
  • PoE: 8 ports, 75W
  • Resolution: up to 6 MP
  • Bandwidth: 60/60 Mbps
  • Compression: H.265+
  • Storage: 1 SATA, up to 6 TB
  • Video: HDMI + VGA
  • Smart: line, intrusion, Smart Search

Further details

✅ Number of Channels:
 The Hikvision DS-7108NI-Q1/8P NVR supports up to 8 channels of IP video , allowing you to connect and manage 8 network cameras simultaneously to create a centralized and easily expandable video surveillance system.
✅ Resolution :
 It supports IP cameras with resolution up to 6MP and offers decoding capability of up to 1 channel 6MP at 30fps, 2 channels 4MP at 30fps or 4 channels 1080p at 30fps , ensuring detailed images and smooth playback.
✅ PoE:
 It integrates 8 independent 10/100 Mbps RJ-45 PoE ports , compliant with IEEE 802.3af/at standards , with a total power of up to 75 W , allowing you to transmit power and data to IP cameras through a single network cable.
✅ Band :
It has an input bandwidth of up to 60 Mbps and an output bandwidth of up to 60 Mbps , optimizing the simultaneous management of video streams from IP cameras and remote connections.
✅ Storage :
It integrates 1 SATA interface compatible with up to 6TB HDD and supports H.265+ compression , which can reduce the required storage space by up to 75% , increasing the efficiency of recording retention.
✅ Smart Functions :
It supports line crossing detection and intrusion detection , as well as Smart Search and Smart Playback technologies , which make it easier to locate events in selected areas and speed up the review of video recordings.

Technical data sheet

DS-7108NI-Q1/8P
Video and Audio
IP Video Input 8-channel Up to 6 MP resolution
Incoming Bandwidth 60 Mbps
Outgoing Bandwidth 60 Mbps
HDMI Output 1-ch, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
VGA Output 1-ch, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
Video Output Mode HDMI/VGA simultaneous output
Decoding
Decoding Format H.265+/H.265/ H.264+/H.264
Recording Resolution 6MP/4MP/3MP/1080p/UXGA /720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Synchronous playback 4-ch
Decoding Capability 4-ch@1080p (30 fps) or 2-ch@4 MP (30 fps) or 1-ch@6 MP (30 fps)
Stream Type Video, Video & Audio
Network
Remote Connection 16
Network Protocol TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP,UPnP™
Network Interface 1, RJ-45 10/100Mbps self-adaptive Ethernet interface
PoE
Interface 8, RJ-45 10/100 Mbps self-adaptive Ethernet interface
Power ≤ 75 W
Standard IEEE 802.3 af/at
Auxiliary Interface
SATA 1 SATA interface
Capacity up to 6 TB capacity for each disk
Alarm In/Out N/A
USB Interface Rear panel: 2 × USB 3.0
General
Power Supply 48 VDC, 1.8 A
Consumption ≤ 10 W
Working Temperature -10 °C to 55 °C (14 °F to 131 °F)
Working Humidity 10 to 90%
Dimensions (W × D × H) 285 × 210 × 48 mm(11.2" × 8.3\" × 1.9\")
Weight ≤ 1 kg (2.2 lb)
Certification
THERE IS EN50130-4, EN 61000-3-2,EN 61000-3-3
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
