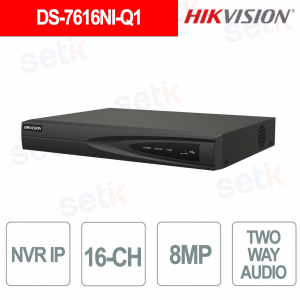

DS-7616NI-Q1 NVR 16 IP Channels up to 8MP H.265+ 4K HDD 8TB Motion Detection 2.0 Hik-Connect - Hikvision
DS-7616NI-Q1 - The NVR is a professional 16-channel IP network video recorder, with input bandwidth up to 160 Mbps and support for recordings up to 8 MP . It integrates H.265+/H.265/H.264+/H.264 compression, reducing storage space by up to 75% , and offers HDMI output up to 4K with simultaneous VGA. It supports 1 SATA HDD up to 8 TB , 16-channel synchronous playback and decoding up to 1 channel 8 MP, 3 channels 4 MP or 6 channels 1080p . Intelligent functions include 4-channel Motion Detection 2.0, human/vehicle analysis, VCA events, Smart Search and Smart Playback , with remote management via Hik-Connect . Hikvision
USE CODE SIGCH886 FOR FREE SHIPPING!
DS-7116NI-Q1 – 16-CHANNEL IP NVR - 8MP RESOLUTION

USE CODE SIGCH886 FOR FREE SHIPPING!
The Hikvision DS-7616NI-Q1 NVR is a professional 16-channel IP network video recorder, with input bandwidth up to 160 Mbps and support for recording up to 8 MP . It integrates H.265+/H.265/H.264+/H.264 compression, capable of reducing storage space by up to 75% , and offers HDMI output up to 4K with simultaneous VGA. It supports 1 SATA HDD up to 8 TB , 16-channel synchronous playback and decoding up to 1 channel 8 MP, 3 channels 4 MP or 6 channels 1080p . Intelligent functions include 4-channel Motion Detection 2.0, human/vehicle analysis, VCA events, Smart Search and Smart Playback , with remote management via Hik-Connect .
Main features:
- IP Channels: 16
- Resolution: up to 8 MP
- Bandwidth: 160 Mbps in / 80 Mbps out
- Video: HDMI 4K + VGA
- Storage: 1 SATA, HDD up to 8 TB
- Smart: Motion Detection 2.0, VCA, Smart Search
- Management: Hik-Connect
Further details
The Hikvision DS-7616NI-Q1 NVR supports up to 16 IP video channels , allowing you to simultaneously connect and manage 16 network cameras for professional and centralized video surveillance systems.
It supports recording from IP cameras up to 8MP and offers decoding capability of up to 1 channel 8MP at 30fps, 3 channels 4MP at 30fps or 6 channels 1080p at 30fps , with HDMI output up to 4K resolution .
Technical data sheet
| DS-7116NI-Q1 | |
| Motion Detection 2.0 | |
| Human/Vehicle Analysis | 4-ch |
| Video and Audio | |
| IP Video Input | 16-ch |
| Incoming Bandwidth | 160 Mbps |
| Outgoing Bandwidth | 80 Mbps |
| HDMI Output | 1-ch, 4K (4096 x 2160)/30 Hz, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 x 1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60Hz |
| VGA Output | 1-ch, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz |
| Video Output Mode | HDMI/VGA simultaneous output |
| Audio Output | 1-ch, RCA (Linear, 1 KΩ) |
| Two-Way Audio | 1-ch, RCA (2.0 Vp-p, 1 kΩ) |
| Decoding | |
| Decoding Format | H.265+/H.265/ H.264+/H.264 |
| Recording Resolution | 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF |
| Synchronous playback | 16-ch |
| Decoding Capability | 1-ch@8MP(30fps)/3-ch@4MP(30fps)/6-ch@1080p(30fps) *: The length or width of camera resolution (each track) cannot exceed 4096 pixels. |
| Network | |
| Remote Connection | 32 |
| Network Protocol | TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS |
| Network Interface | 1, RJ-45 10/100/1000Mbps self-adaptive Ethernet interface |
| Auxiliary Interface | |
| SATA | 1 SATA interface |
| Capacity | up to 8 TB capacity for each disk |
| USB Interface | 2 × USB 3.0 |
| General | |
| Power Supply | 12 VDC, 1.5 A |
| Consumption | ≤ 10 W (without HDD) |
| Working Temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| Working Humidity | 10 to 90% |
| Dimensions (W × D × H) | 320 × 240 × 48 mm (12.4" × 9.4" × 1.9") |
| Weight | ≤ 1 kg (without HDD, 2.2 lb.) |
