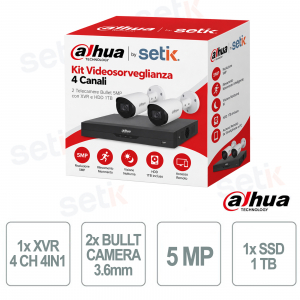

KIT-XVR4CHSSD(1T) 5MP Video Surveillance Kit with 4 Channel XVR, 1TB SSD, 2 Bullet Cameras and AI - Dahua

KIT-XVR4CHSSD(1T) 5MP Video Surveillance Kit with 4 Channel XVR, 1TB SSD, 2 Bullet Cameras and AI - Dahua

 
-57% nuevo

KIT-XVR4CHSSD(1T) - is a 5 MP HDCVI video surveillance kit consisting of a 4-channel WizSense XVR5104HS-I3(1T) AI XVR with integrated 1 TB SSD and 2 HAC-HFW1500T-S2 5 MP Bullet cameras . The video recorder supports HDCVI, CVBS, TVI and AHD technologies up to 5 MP , as well as the management of IP channels up to 6 MP and a maximum bandwidth of 32 Mbps. The cameras have a 3.6 mm fixed lens , IR illumination up to 30 meters and IP67 protection, making them suitable for video surveillance of indoor and outdoor environments. A complete Dahua solution with SSD recording , AI functionality and versatile management of the security system. Dahua

Technical data sheet not available

referencia : KIT-XVR4CHSSD(1T)

brand : Dahua

EAN: 6939554957697

Disponibilità: 1

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

La empresa asiática, fundada en 2001, debe su reputación a la excelente calidad de sus productos en términos de rendimiento y capacidad. La gama de productos de Dahua abarca desde los sistemas clásicos de CCTV hasta los sistemas de seguridad más complejos y articulados: no sólo la videovigilancia, sino también el control de acceso, los sistemas de videoportería, los productos de detección térmica y mucho más. La fiabilidad, la tecnología de punta y los precios competitivos que ofrece Dahua son sólo algunas de las razones por las que Setik siempre ha elegido distribuir la marca. Dahua es desde hace años un sólido punto de referencia en el mercado internacional de los circuitos cerrados de televisión, gracias a las enormes inversiones que cada año se dedican a la investigación y el desarrollo. Las cifras hablan por sí mismas: desde 2016 hasta hoy Dahua ha registrado más de 800 patentes con su propia marca. Actualmente Dahua puede presumir de estar entre los 10 primeros líderes mundiales en el mundo de la seguridad. Este año Dahua fue premiado con el 2º puesto en el ranking "2019 TOP SECURITY 50".

Los productos de la marca Dahua vendidos por Setik SRL pueden ser entregados como productos OEM, es decir, productos que a todos los efectos son productos originales de Dahua, pero que tienen una apariencia estética diferente reservada para el mercado en línea (generalmente en términos de logotipo y embalaje). Esto no afecta en modo alguno a la garantía y a las características técnicas del producto, que es siempre genuino de Dahua, ni a las actualizaciones y la funcionalidad.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. es uno de los principales proveedores mundiales de soluciones de videovigilancia, con más de 13.000 empleados y 35 filiales activas en todo el mundo.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2026-02-19 16:06:32 [link_rewrite] => dahua [meta_title] => Los mejores productos Dahua: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Productos Dahua para la videovigilancia digital IP, HYBRIDA, HD-SDI, HDCVI, como cámaras, grabadoras, control de acceso, accesorios y videointercomunicadores wifi. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR


KIT-XVR4CHSSD(1T) | BULLET CAMERAS - 3.6mm FIXED LENS 5MP - 4-CHANNEL 4-IN-1 XVR


Dahua

The Dahua KIT-XVR4CHSSD(1T) is a 5 MP HDCVI video surveillance kit consisting of a 4-channel WizSense AI XVR with integrated 1 TB SSD and 2 HAC-HFW1500T-S2 5 MP Bullet cameras . The recorder supports HDCVI/CVBS/TVI/AHD signals up to 5 MP and IP configurations up to 6 MP, with a maximum bandwidth of 32 Mbps. The cameras integrate 3.6 mm fixed lens , IR illumination up to 30 meters and IP67 protection, making them suitable for video surveillance of indoor and outdoor environments. A complete and reliable Dahua solution for creating security systems with SSD recording and WizSense AI management.

Main specifications:

  • Kit: 4 channel XVR + 2 Bullet cameras
  • Resolution: 5 MP
  • Storage: Built-in 1TB SSD
  • Optics: 3.6mm fixed
  • Night vision: IR up to 30m
  • Protection: IP67
  • Technology: HDCVI and AI WizSense

Further details

✅ Optics:
The 2 Dahua HAC-HFW1500T-S2 Bullet cameras integrate a 3.6 mm fixed lens , designed to ensure effective coverage of the monitored area and detailed images in HDCVI video surveillance systems.
✅ Camera resolution :
The cameras offer a 5 MP resolution , ensuring high definition images and a good level of detail for monitoring indoor and outdoor environments.
✅ Starlight Technology:
Starlight technology is designed to improve image quality in low-light conditions ; the cameras in the kit also feature IR illumination up to 30 meters for night-time video surveillance.
✅ Number of Channels:
The XVR5104HS-I3(1T) video recorder handles 4 channels of HDCVI/CVBS/TVI/AHD and supports 2+4 channels of IP configuration, offering flexibility in system expansion and management.
✅ XVR Resolution:
WizSense AI recorder supports HDCVI/CVBS/TVI/AHD cameras up to 5MP and IP cameras up to 6MP , with a maximum bandwidth of 32Mbps .
✅ Built-in SSD:
The kit includes a 1TB internal SSD already built into the video recorder, offering a ready-to-use solution for storing video recordings without the need to add a separate storage drive.

Technical data sheet

Model HAC-HFW1500T-S2
Room
Image Sensor 1/2.7" inch CMOS
Max. Resolution 2880 (H) × 1620 (V)
Pixel 5MP
Scanning System Progressive
Electronic Shutter Speed PAL: 1/25 s–1/100,000 s
NTSC: 1/30 s–1/100,000 s
S/N Ratio

﹥65 dB

Min. Illumination

0.005 Lux/F1.6, 30IRE, 0 Lux IR on

Illumination Distance

30 m (98.4 ft)

Illuminator On/Off Control

Auto/Manual

Illuminator Number

1

Pan/Tilt/Rotation Range Pan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360°
Lens
Lens Type Fixed-focal
Lens Mount M12
Focal Length 3.6mm
Max. Openings F1.6
Field of View 109° × 92° × 48° (diagonal × horizontal × vertical)
Iris Type Fixed iris
Close Focus Distance 1.6 m (5.2 ft)
Video
Frame Rate CVI:
PAL: 5M@25fps; 4M@25fps; 1080P@25fps;
NTSC: 5M@25fps; 4M@30fps; 1080P@30fps
AHD:
PAL: 4M@25 fps;
NTSC: 4M@30 fps
TVI:
PAL: 4M@25 fps;
NTSC: 4M@30 fps
CVBS:
PAL: 960H;
NTSC: 960H
Resolution

5M (2880 × 1620); 4M (2560 × 1440); 1080P (1920×1080); 960H (960 × 576/960 × 480)

Day/Night Auto switch by ICR
BLC BLC/HLC/DWDR
WDR DWDR
White Balance Auto; manual
Gain Control Auto; manual
Noise Reduction 2D NR
Smart IR Yes
Mirror Off/On
Privacy Masking Off/On (8 areas, rectangle)
Certifications
Certifications

CE (EN 55032:2015, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 55024:2010+A1:2015, EN 55035:2017, EN 50130-4:2011+A1:2014, EN 62368-1:2014+A11:2017)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

Port
Video Output Video output choices of CVI/TVI/AHD/CVBS by one BNC port
Power
Power Supply 12V ±30% DC
Power Consumption

Max 3.2W (12V DC, IR on)

Environment
Operating Temperature –40°C to +60°C (–40°F to 140°F); < 95% (non-condensation)
Storage Temperature –40°C to +60°C (–40°F to 140°F); < 95% (non-condensation)
Ingress Protection IP67
Structure
Casing Metal throughout the whole casing
Dimensions 174.5 mm × 72.3 mm × 70.6 mm (6.87" × 2.85" × 2.78")
Net Weight 0.36 kg (0.79 lb)
Gross Weight 0.51 kg (1.12 lb)
Model XVR5104HS-I3
SYSTEM
Main Processor Embedded Processor
Operating System Embedded LINUX
PERIMETER PROTECTION
Performance 1 channel, 10 IVS for each channel
Object classification Human/Vehicle secondary recognition for tripwire and intrusion
AI Search Search by target classification (Human, Vehicle)
FACE RECOGNITION
Performance Max 8 face pictures/sec processing
1 channel video stream face recognition, only support analog camera
Stranger Mode Detect strangers' faces (not in device's face database). Similarity threshold can be set manually
AI Search Up to 8 target face images search at same time, similarity threshold can be set for each target face image
Database Management Up to 10 face databases with 10,000 face images in total. Name, gender, birthday, address, certificate type, cerificate No., countries®ions and state can be added to each face picture
Database Application Each database can be applied to video channels independently
Trigger Events Buzzer, Voice Prompts, Email, Snapshot, Recording, Alarm Out, PTZ Activation, etc.
SMD PLUS
Performance 4 channels
AI Search

Search by target classification (Human, Vehicle)

VIDEO AND AUDIO
Analog Camera Input 4 channels, BNC
HDCVI Camera Input 5MP, 4MP, 1080p@ 25/30 fps, 720p@ 50/60 fps, 720p@ 25/30 fps
AHD Camera Input 5MP, 4MP, 1080p@ 25/30 fps, 720p@ 25/30 fps
TVI Camera Input 5MP, 4MP, 1080p@ 25/30 fps, 720p@ 25/30 fps
CVBS Camera Input PAL/NTSC
IP Camera Input 4+2 channels, each channel up to 6MP
Audio In/Out 1/1, RCA
Two-way Talk Reuse audio in/out, RCA
RECORDING
Compression AI Coding/H.265+/H.265/H.264+/H.264
Resolution 5M-N, 4M-N, 1080P, 1080N, 720P, 960H, D1, CIF
Record Rate Main stream: All channel 5M-N (1 fps–10 fps); 4M-N/1080p (1fps–15fps); 1080N/720p/960H/ D1/CIF (1 fps–25/30 fps) Sub stream: D1/CIF (1 fps–15fps)
Bit Rate 32kbps–6144kbps per channel
Record Mode Manual; Schedule (General, Continuous); MD (Video detection: Motion Detection, Video Loss, Tampering); Alarm; Stop
Record Interval 1 min–60 min (default: 60 min), Pre-record: 1 s–30 s, Post-record: 10 s–300 s
Audio Compression G.711A; G.711U; PCM
Audio Sample Rate 8 KHz, 16 bits per channel
Audio Bit Rate 64 kbps per channel
DISPLAY
Interface 1 HDMI; 1 VGA
Resolution 1920 × 1080; 1280 × 1024; 1280 × 720
Multi-screen Display When IP extension mode not enabled: 1/4
When IP extension mode enabled: 1/4/6
OSD Camera title; Time; Video loss; Camera lock; Motion detection; Recording
NETWORK
Interface 1 RJ-45 Port (100 MB)
Network Function HTTP; HTTPS; TCP/IP; IPv4/IPv6; WiFi; 3G/4G; SNMP; UPnP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; PPPoE; DDNS; FTP; Alarm Server; P2P; IP Search (Supports Dahua IP camera, DVR, NVS, etc.)
Max. User Access 128 users
Smartphone iPhone; iPad; Android
Interoperability ONVIF® 16.12, CGI Conformant
VIDEO DETECTION AND ALARM
Trigger Events Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
Video Detection Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Diagnosis
PLAYBACK AND BACKUP
Playback 1/4
Search Mode Time/Date, Alarm, MD and Exact Search (accurate to second)
Playback Function Play; Breaks; Stop; Rewind; Fast play; Slow Play; NextFile; Previous File; Next Camera; Previous Camera; Full Screen; Repeat; Shuffles; Backup Selection; Digital Zoom
Backup Mode USB Device/Network
STORAGE
Internal HDD 1 SATA port, up to 6 TB capacity
AUXILIARY INTERFACE
USB 2 USB ports (USB 2.0)
RS485 1 port, for PTZ control
ELECTRICAL
Power Supply DC 12V/1.5A
Power Consumption (Without HDD) < 4W
Dimensions Compact 1U, 260.0 mm × 237.9 mm × 47.6 mm (10.24'' × 9.37'' × 1.87'')
Net Weight (without HDD) 0.84 kg (1.85 lb)
Gross Weight 1.37 kg (3.02 lb)
Installation Desktop installation
ENVIRONMENTAL
Operating Conditions

-10°C to +45°C (+14°F to +113°F), 0%–90% (RH)

Storage Conditions

-20°C to +70°C (-4°F to +158°F), 0%–90% (RH)

Third-party Support
Third-party Support Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more
CERTIFICATIONS
Certifications FCC: Part 15 Subpart B
CE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN 61000-3-2; EN 61000-3-3; EN 55032; EN 50130; EN 55024
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
