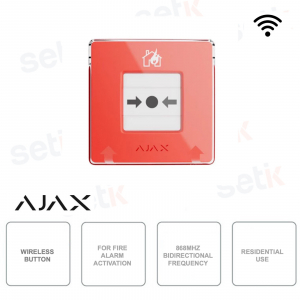

60815.171.NC1 #60815| Ajax ManualCallPoint Jeweller rosso è un pulsante manuale wireless per l’attivazione immediata dell’allarme antincendio, progettato per garantire interventi rapidi in situazioni di emergenza. Con una semplice pressione attiva allarme incendio immediato, scenari di automazione programmabili e la segnalazione istantanea su app e sistemi di monitoraggio. La comunicazione radio Jeweller fino a 1700 m assicura affidabilità e trasmissione rapida degli eventi. Dotato di coperchio frontale trasparente anti-attivazione accidentale, protezione antisabotaggio e LED di stato, unisce sicurezza e controllo. L’alimentazione a batteria con autonomia fino a 7 anni e il reset tramite chiave dedicata lo rendono ideale per ambienti professionali e pubblici. Ajax
Riferimento: 60815.171.NC1
Marca: Ajax Systems
EAN: 4823114045219
Disponibilità: 2
FUORI TUTTO ×
FUORI TUTTO!
Approfitta della imperdibile offerte del nostro outlet
Scopri la promo >>
60815.171.NC1 | PULSANTE RIPRISTINABILE WIRELESS PER L'ATTIVAZIONE MANUALE DELL'ALLARME ANTINCENDIO CON SCENARI PROGRAMMABILI

Ajax ManualCallPoint Jeweller, 60815.171.NC1, rosso è un pulsante manuale wireless certificato per l’attivazione immediata dell’allarme antincendio, ideale per edifici pubblici, commerciali e industriali. Con una semplice pressione consente l’attivazione istantanea dell’allarme incendio e l’avvio di scenari di automazione programmabili come sirene, sblocco uscite e luci di emergenza. La comunicazione radio Jeweller fino a 1700 m garantisce trasmissioni rapide, sicure e affidabili. Il dispositivo è progettato per prevenire attivazioni accidentali grazie al coperchio frontale trasparente, integra protezione antisabotaggio e offre alimentazione a batteria con autonomia fino a 7 anni, assicurando continuità operativa e massima sicurezza.
Specifiche principali:
- Attivazione manuale immediata dell’allarme antincendio
- Scenari di automazione programmabili per evacuazione e sicurezza
- Comunicazione wireless Jeweller fino a 1700 m
- Coperchio trasparente anti-attivazione accidentale
- Protezione antisabotaggio con segnalazione immediata
- Alimentazione a batteria con durata fino a 7 anni
Ulteriori dettagli
Scheda tecnica
| 60815.171.NC1 | |
| Communication | |
| Jeweller communication technology | Proprietary wireless communication technology to transmit commands, alarms, and events. Key features:
|
| Radio frequency bands | 866.0 - 866.5 MHz 868.0 - 868.6 MHz 868.7 - 869.2 MHz 905.0 - 926.5 MHz 915.85 - 926.5 MHz 921.0 - 922.0 MHz Depence on the sales reagion |
| Maximum effective radiated power (ERP) | up to 25 mW Automatic power control to reduce power consumption and radio interference. |
| Radio signal modulation | GFSK |
| Radio signal range | Up to 1,700 m up to 5,500 ft Between the detector and a hub (or radio signal range extender) in an open space. |
| Encrypted radio communication | All the data stored and transmitted are protected by block encryption featuring a dynamic key. |
| Frequency hopping | Radio communication uses frequency hopping to prevent interception and jamming. |
| Key features | |
| Resettable frangible element | activates the button When the central part (frangible element) is pressed, the button depresses inward, triggering an alarm or initiating a scenario. Two yellow stripes appear at the top and bottom, indicating the device's state. |
| Operating modes | fire alarm scenario trigger With appropriate settings, it activates an alarm or controls Ajax automation devices. |
| LED status indication | fire alarm malfunctions The LED indicator on the device enclosure lights up when a fire alarm is triggered or malfunctions are detected. |
| Interconnected fire detectors alarms | by pressing the button By pressing the frangible element, fire detectors in the system trigger the built-in sirens |
| Critical alerts | The system can activate intrusion sirens and send audible alarm notifications to users, even if the sound is muted, the Do Not Disturb mode is on, or headphones are connected |
| Protection against accidental presses | Lift the transparent lid to access the frangible element. The lid protects against false button presses |
| Alarm transmission to CMS | can be disabled |
| Special tool (key) | |
| Button reset | after pressing To reset the button, insert the special tool into the corresponding hole. |
| Hole in the enclosure | to hang on a ring from a keychain The person responsible for fire safety can carry the special tool on their keychain. |
| Convenient dismantling | The special tool opens the lock to dismantle the device from SmartBracket mounting panel |
| Recommendations | It is recommended to install the button in easily accessible places at a height of 1.4 m. The device is designed for indoor installation only. |
| Sabotage protection | |
| Tampering alarm | Notifies on attempts to detach the button from the surface or remove it from the mounting panel |
| Protection against spoofing | device authentication |
| Detection of communication failure | after 36 s The detection time depends on the Jeweller or Jeweller/Fibra settings |
| Power supply | |
| Batteries | 2 × CR123A Pre-installed. With typical use (one press lasting 1 minute per week), the batteries can last up to 7 years. |
| Enclosure | |
| Color | Red |
| Dimension | 102 × 104 × 39 mm 4.02″ × 4.09″ × 1.53″ |
| Weight | 214 g 7.55 oz |
| Operating temperature range | from 0 °C to +50 °C from 32 °F to 122°F |
| Operating humidity | up to 80% |
| Complete set | ManualCallPoint (Red) Jeweller SmartBracket mounting panel Special tool (key) 2 × CR123A battery (pre-installed) Installation kit Quick start guide |
| Warranty | 24 months |
