38108.05.BL1 #38108| Ajax GlassProtect Jeweller nero è un sensore wireless ad alta precisione progettato per rilevare la rottura del vetro tramite un microfono elettrete avanzato, garantendo una protezione rapida e affidabile per finestre e vetrate. Utilizza l’algoritmo DualTone per distinguere i reali eventi di rottura da rumori comuni, assicurando massima affidabilità. La tecnologia radio Jeweller offre comunicazione sicura fino a 1.200 m con crittografia e anti-spoofing. Compatto, elegante e facile da installare, funziona fino a 7 anni con batteria integrata, mantenendo prestazioni stabili anche in condizioni ambientali variabili. Un dispositivo ideale per sistemi di sicurezza moderni che richiedono precisione, autonomia e integrazione immediata. Ajax
Riferimento: 38108.05.BL1
Marca: Ajax Systems
EAN: 4823114014840
Disponibilità: 39
FUORI TUTTO ×
FUORI TUTTO!
Approfitta della imperdibile offerte del nostro outlet
Scopri la promo >>

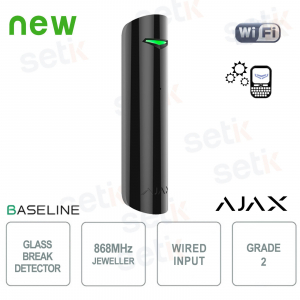

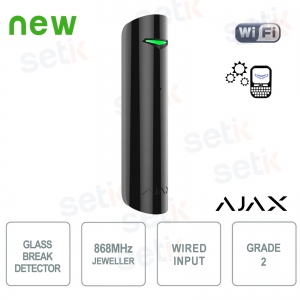

38108.05.BL1 | RILEVATORE DI ROTTURA VETRO WIRELESS CON MICROFONO

Il Ajax GlassProtect Jeweller, 38108.05.BL1, nero è un sensore ultra-compatto progettato per rilevare con precisione la rottura del vetro grazie a un microfono elettrete ad alta sensibilità e all’algoritmo DualTone, che analizza sia le basse che le alte frequenze per garantire massima affidabilità ed evitare falsi allarmi. La comunicazione wireless Jeweller assicura una portata fino a 1.200 m con crittografia avanzata e tecnologia anti-manomissione, mentre la batteria a lunga durata permette un funzionamento stabile fino a 7 anni. Installabile in pochi secondi tramite QR code, è ideale per finestre, vetrate e ambienti che richiedono protezione discreta ma altamente professionale.
Specifiche principali:
- Rilevazione rottura vetro tramite microfono elettrete con analisi DualTone
- Comunicazione Jeweller sicura e affidabile fino a 1.200 m
- Elevata immunità ai falsi allarmi e risposta immediata all’evento
- Protezione antisabotaggio e monitoraggio costante dello stato del sensore
- Autonomia fino a 7 anni con batteria preinstallata
- Installazione rapida con QR code e design compatto in colore nero
Ulteriori dettagli
Scheda tecnica
| 38108.05.BL1 | |
| Communication | |
| Jeweller communication technology | Proprietary wireless communication technology to transmit commands, alarms, and events. Key features:
|
| Radio frequency bands | 866.0 - 866.5 MHz 868.0 - 868.6 MHz 868.7 - 869.2 MHz 905.0 - 926.5 MHz 915.85 - 926.5 MHz 921.0 - 922.0 MHz Depence on the sales reagion |
| Maximum effective radiated power (ERP) | up to 20 mW Automatic power control to reduce power consumption and radio interference. |
| Radio signal modulation | GFSK |
| Radio signal range | Up to 1,000 m up to 3,300 ft Between the detector and a hub (or radio signal range extender) in an open space. |
| Encrypted radio communication | All the data stored and transmitted are protected by block encryption featuring a dynamic key. |
| Frequency hopping | Radio communication uses frequency hopping to prevent interception and jamming |
| Detection | |
| Sensitive element | electret microphone |
| Glass break detection distance | from 0.3 to 9 m from 1 to 30 ft |
| Glass break detection angle | horizontal: 180° |
| Sensitivity | 3 levels Adjusted by PRO or user with admin rights in the Ajax app. |
| False alarm prevention | DualTone Two-factor software algorithm for glass break verification by low and high sound frequencies. |
| Input for additional detector connection | Wired detector with a normally closed (NC) contact type. |
| Caution | The device will not detect glass breaking if the glass is covered with shockproof, sunscreen, decorative, or any other film. The device is designed for indoor use only. |
| Sabotage protection | |
| Tamper alarm | Notifications on attempts to detach the device from the surface or remove it from the mounting panel. |
| Protection against spoofing | device authentication |
| Communication loss detection | after 36 s Detection time depends on the Jeweller or Jeweller/Fibra settings. |
| Power Supply | |
| Battery | 1 × CR123A Pre-installed. |
| Calculated battery life | up to 7 years |
| Detector’s operating voltage range | 2.1−3.3 V⎓ |
| Device’s nominal operating voltage | 3 V⎓ |
| Quiescent device’s current consumption at nominal voltage | 18 μA |
| Maximum device’s current consumption at nominal voltage | 21 mA |
| Manufacturer | Huiderui or Duracell |
| Enclosure | |
| Color | Black |
| Dimension | 90 × 20 × 20 mm 3.54″ × 0.79″ × 0.79″ |
| Weight | 30 g 1.06 oz |
| Operating temperature range | from −10 °C to +40 °C from 14 °F to 104 °F |
| Operating humidity | up to 75% |
| Casing protection class | IP50 |
| Complete set | GlassProtect Jeweller SmartBracket mounting panel CR123A battery (pre-installed) Cable for connecting third-party devices Installation kit Quick start guide |
| Warranty | 24 months |
