Accessori
1341-CSA - is a counterplate with a Ø45 mm joint designed for electromagnetic fire door catches, ensuring precise and reliable coupling. Thanks to the joint with an angular excursion of up to 120° , it adapts perfectly to the fixing surfaces, improving the magnet's hold. Made with a steel plate , white thermoplastic structure and integrated shock absorber , it ensures high resistance, long life and professional installation in electromagnetic fire door catch systems. Eaton Technical Data Sheet
1343-CSA - The Ø45 mm white counterplate without joint is an accessory designed for Series 13100 electromagnetic locks , ideal for fire protection systems where compact dimensions and reliable fixing are required. Equipped with a steel plate with shock absorber , it guarantees resistance and long life over time. The white thermoplastic structure ensures robustness and a discreet aesthetic, while the angular excursion of the plate up to 30° facilitates correct coupling with the electromagnetic lock, improving installation efficiency. Eaton Technical Data Sheet
1494-CSA - The CSA 1494-CSA silkscreened replacement glass is the original accessory designed for the Series 1492/1493 break-glass key container , ideal for quickly restoring the device after an emergency intervention. Designed to ensure perfect compatibility with CSA key containers, it ensures simple replacement and maintains full system functionality. Thanks to the dedicated silkscreen and original construction quality, it represents the ideal solution for the maintenance of fire protection systems and professional security systems. Eaton Technical Data Sheet
93359.262.BL #93359 - Ajax CableTrunk black is an accessory designed to ensure a tidy and professional installation of mains-powered FireProtect 2 AC detectors, ideal when it is not possible to flush-mount cables in walls. The connector allows the power cables to be passed sideways , integrating seamlessly into standard conduits and improving the aesthetics of the system. The compact design ensures optimal visibility of the LEDs in four mounting positions , while the quick-release system facilitates panel mounting. Made of durable polycarbonate , it offers simple installation , easy routing to WAGO 221 connectors and full compatibility with all FireProtect 2 AC , making the system clean, safe and professional. Ajax
Technical Data Sheet
93360.262.WH #93360 - Ajax CableTrunk white is an accessory designed to ensure a tidy and professional installation of mains-powered FireProtect 2 AC detectors, ideal when it is not possible to flush-mount cables in walls. The connector allows the power cables to be passed laterally , integrating seamlessly into standard conduits and improving the aesthetics of the system. The compact design ensures optimal visibility of the LEDs in four mounting positions , while the quick-release system facilitates panel mounting. Made of durable polycarbonate , it offers simple installation , easy routing to WAGO 221 connectors and full compatibility with all FireProtect 2 AC , making the system clean, safe and professional. Ajax
Technical Data Sheet
127877.316.BL # 127877 | The Ajax EN54 Internal Battery (24h) , in black, is a reliable backup power solution for the EN54 Fire Hub Jeweller and EN54 Fire ReX Jeweller systems, ensuring operational continuity even in the event of a power outage. It is a rechargeable 7.4 V / 5 Ah Li-ion battery, designed to comply with the EN 54-4 standard and ensure constant performance in critical scenarios. Easy to install and ready for use, it can be quickly replaced without tools thanks to a practical and safe design. Resistant to temperatures from -10 °C to +40 °C and with IP20 protection, it offers certified compatibility with Ajax hubs and repeaters.
Technical Data Sheet
127876.316.WH # 127876 | The Ajax EN54 Internal Battery (24h) , in white, is a reliable backup power solution for the EN54 Fire Hub Jeweller and EN54 Fire ReX Jeweller systems, ensuring operational continuity even in the event of a power outage. It is a rechargeable 7.4 V / 5 Ah Li-ion battery, designed to comply with the EN 54-4 standard and ensure constant performance in critical scenarios. Easy to install and ready for use, it can be quickly replaced without tools thanks to a practical and safe design. Resistant to temperatures from -10 °C to +40 °C and with IP20 protection, it offers certified compatibility with Ajax hubs and repeaters.
Technical Data Sheet
127879.324.BL # 127879 | The Ajax EN54 Internal Battery (72h) , in black, is a reliable backup power solution for the EN54 Fire Hub Jeweller and EN54 Fire ReX Jeweller systems, ensuring operational continuity even in the event of a power outage. It is a rechargeable 7.4 V / 10 Ah Li-ion battery, designed to comply with the EN 54-4 standard and ensure consistent performance in critical scenarios. Easy to install and ready for use, it can be quickly replaced without tools thanks to a practical and safe design. Resistant to temperatures from -10 °C to +40 °C and with IP20 protection, it offers certified compatibility with Ajax hubs and repeaters.
Technical Data Sheet
127878.324.WH # 127878 | The Ajax EN54 Internal Battery (72h) , in white, is a reliable backup power solution for the EN54 Fire Hub Jeweller and EN54 Fire ReX Jeweller systems, ensuring operational continuity even in the event of a power outage. It is a rechargeable 7.4 V / 10 Ah Li-ion battery, designed to comply with the EN 54-4 standard and ensure consistent performance in critical scenarios. Easy to install and ready for use, it can be quickly replaced without tools thanks to a practical and safe design. Resistant to temperatures from -10 °C to +40 °C and with IP20 protection, it offers certified compatibility with Ajax hubs and repeaters.
Technical Data Sheet
124591.280.BL1 # 118591 | Ajax EN54 I/O (2X2) Jeweller , a black module, is a wireless device that allows you to connect third-party equipment to an Ajax fire alarm system, complying with EN 54-18 and EN 54-25 standards. Equipped with two inputs and two outputs, it allows integration with gates, emergency lights, electric locks and other security systems. Jeweller radio communication guarantees a range of up to 1,700 m, with intelligent power management and rapid alerts in case of danger. Easy to install and manage via app, it operates up to 5 years with integrated batteries.
Technical Data Sheet
124590.280.WH1 # 118590 | Ajax EN54 I/O (2X2) Jeweller , a white module, is a wireless device that allows you to connect third-party equipment to an Ajax fire alarm system, complying with EN 54-18 and EN 54-25 standards. Equipped with two inputs and two outputs, it allows integration with gates, emergency lights, electric locks and other security systems. Jeweller radio communication guarantees a range of up to 1,700 m, with intelligent power management and rapid alerts in case of danger. Easy to install and manage via app, it operates up to 5 years with integrated batteries.
Technical Data Sheet
125718.314.BL #125718 | The black Ajax GlandBox is a wiring accessory designed for neat side cable entry into the EN54 Fire Hub Jeweller fire alarm control panel. Ideal for installations where wall entry is not possible, it ensures secure mounting thanks to cable glands and a compact design for professional installation. It features 16 cable gland locations (up to 20 mm in diameter), recesses for precise drilling, and a simplified cable routing system. Installation is facilitated by a built-in spirit level, position indicators, and provision for an anti-sabotage switch. Resistant from -10°C to +40°C, with IP20 protection and UL 94 V-0 certification, it comes complete with a mounting kit.
Technical Data Sheet
125717.314.WH #125717 | The white Ajax GlandBox is a wiring accessory designed for neat side cable entry into the EN54 Fire Hub Jeweller fire alarm control panel. Ideal for installations where wall entry is not possible, it ensures secure mounting thanks to cable glands and a compact design for professional installation. It features 16 cable gland locations (up to 20 mm in diameter), recesses for precise drilling, and a simplified cable routing system. Installation is facilitated by a built-in spirit level, position indicators, and provision for an anti-tamper switch. Resistant from -10°C to +40°C, with IP20 protection and UL 94 V-0 certification, it comes complete with a mounting kit.
Technical Data Sheet
71254.171.NC1 # 71254 | Ajax ManualCallPoint Jeweller blue is a wireless manual button designed for the immediate activation of alarms and emergency scenarios in professional and public settings. With a simple press, it allows instant activation of the alarm and the launch of programmable scenarios such as sirens, opening of gates, power interruption and ventilation. Jeweller radio communication up to 1700 m ensures fast, stable and secure transmissions to the Ajax system. The device features a transparent protective cover , anti-sabotage protection and status LEDs for immediate control. The battery power with up to 7 years of autonomy and the reset via a dedicated key ensure reliability and operational continuity over time. Ajax
Technical Data Sheet
87639.171.NC1 # 87639 | Ajax ManualCallPoint Jeweller green is a wireless manual button designed for the immediate activation of alarms and emergency scenarios in professional and public settings. A simple press allows instant alarm activation and the launch of programmable scenarios such as sirens, opening of gates, power outages and ventilation. Jeweller radio communication up to 1700 m ensures fast, stable and secure transmissions to the Ajax system. The device features a transparent protective cover , anti-sabotage protection and status LEDs for immediate control. Battery power with up to 7 years of battery life and reset via a dedicated key ensure reliability and operational continuity over time. Ajax
Technical Data Sheet
60815.171.NC1 # 60815 | Ajax ManualCallPoint Jeweller red is a wireless manual button for immediate fire alarm activation, designed to ensure rapid intervention in emergency situations. With a simple press, it activates an immediate fire alarm , programmable automation scenarios , and instant reporting to apps and monitoring systems. Jeweller radio communication up to 1700 m ensures reliability and rapid event transmission. Equipped with a transparent front cover to prevent accidental activation , anti-sabotage protection , and status LEDs , it combines safety and control. Battery power with up to 7 years of battery life and reset via a dedicated key make it ideal for professional and public environments. Ajax
Technical Data Sheet
87645.171.NC1 # 87645 | Ajax ManualCallPoint Jeweller white is a wireless manual button designed for the immediate activation of alarms and emergency scenarios in professional and public settings. With a simple press, it allows instant activation of the alarm and the launch of programmable scenarios such as sirens, opening of gates, power interruption and ventilation. Jeweller radio communication up to 1700 m ensures fast, stable and secure transmissions to the Ajax system. The device features a transparent protective cover , anti-sabotage protection and status LEDs for immediate control. The battery power with up to 7 years of autonomy and the reset via a dedicated key ensure reliability and operational continuity over time. Ajax
Technical Data Sheet
87651.171.NC1 # 87651 | Ajax ManualCallPoint Jeweller yellow is a wireless manual button designed for the immediate activation of alarms and emergency scenarios in professional and public settings. With a simple press, it allows instant activation of the alarm and the launch of programmable scenarios such as sirens, opening of gates, power interruption and ventilation. Jeweller radio communication up to 1700 m ensures fast, stable and secure transmissions to the Ajax system. The device features a transparent protective cover , anti-sabotage protection and status LEDs for immediate control. The battery power with up to 7 years of autonomy and the reset via a dedicated key ensure reliability and operational continuity over time. Ajax
Technical Data Sheet
FCL4B Base Universale FireClass Installabile sui pannelli a soffitto, Connessioni per LED remoti, Posizione di parcheggio e spazio per etichetta, Chiave di bloccaggio integrata

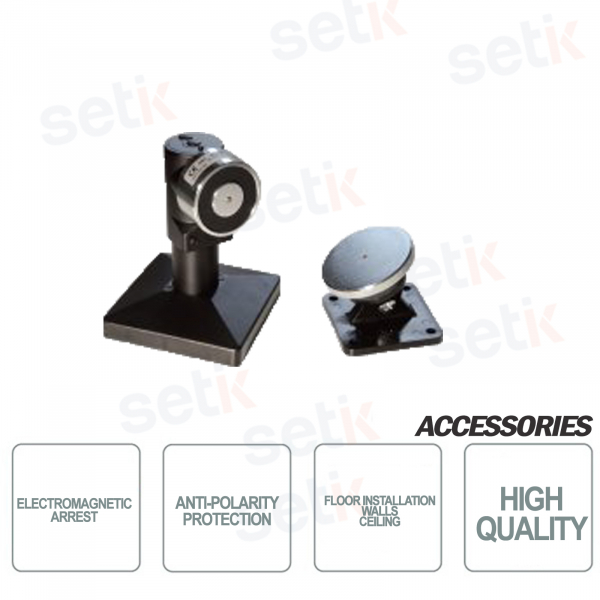

CSA 1370-15-D Elektromagnetischer Anschlag aus Aluminium für Boden, Wand oder Decke. Elektromagnetische Aluminiumverriegelung für Brandschutztüren mit Entriegelungsknopf. Dank der unterschiedlichen axialen und senkrechten Montagepositionen des Kerns und der 30-mm-Einstellung des Kopfes ist die Installation sowohl an der Wand als auch am Boden möglich. CSA
CSA 1351 Gegenplatte mit Gelenk für elektromagnetische Anschläge, ermöglicht eine Winkelauslenkung der Platte von insgesamt 120 °, mit Stoßdämpfer, Stahlplatte, Struktur aus schwarzem Thermoplast. 1351-CSA
1353-CSA - The Ø55 mm black hingeless counterplate is an accessory designed for electromagnetic fire door stops , ideal for ensuring stable and secure fastening of fire doors. Made with a steel plate and black thermoplastic structure , it ensures high resistance and long life even in professional environments. The integrated shock absorber protects the system during contact, while the angular excursion of the plate up to 30° facilitates alignment and improves installation reliability. Thanks to its small size , it represents a practical and high-performance solution for security and fire detection systems. Eaton Technical Data Sheet
1361-CSA - The black Ø60 mm hinged counterplate is designed for 100 kg electromagnetic catches , ensuring a safe and reliable connection in fire door retention systems. Equipped with a hinge with angular travel of up to 120° , it facilitates alignment even in the presence of misalignments during installation. The steel plate with shock absorber ensures high resistance and long life, while the black thermoplastic structure offers robustness and reliability in professional fire protection systems. Eaton Technical Data Sheet
13ST15 - The 150 mm mounting bracket is designed for installing 13000 and 13100 Series electromagnetic door catches on walls or floors , offering a practical and reliable solution for fire protection systems. Made with a robust structure, it ensures stable fixing and correct positioning of the electromagnetic door catch even in the most complex installations. The 150 mm length makes it ideal for optimizing mounting and ensuring maximum compatibility with electromagnetic fire door holding systems. Eaton Technical Data Sheet
13ST25 - The 250 mm mounting bracket is designed for installing 13000 and 13100 Series electromagnetic door catches on walls or floors , offering a practical and reliable solution for fire protection systems. Made with a robust structure, it ensures stable fixing and correct positioning of the electromagnetic door catch even in the most complex installations. The 250 mm length makes it ideal for optimizing mounting and ensuring maximum compatibility with electromagnetic fire door holding systems. Eaton Technical Data Sheet
