Kartenleser

Erweiterungsmodul DS-K1107AM von Hikvision – Mifare 13,56 MHz Kartenleser – Sabotage – Integrierter Summer – Unterstützt Wiegand-, RS-485- und OSDP-Protokoll – IP65-Schutz – Watchdog-Funktion – Online aufrüstbar – Integrierter Summer – Zur Wandmontage – Zeigt Status und Betrieb an – Mifare-Kartenleseabstand bis zu 50 mm.

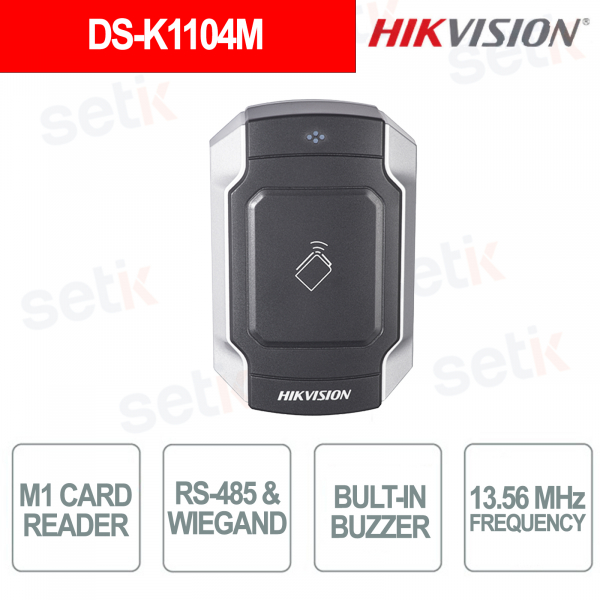

DS-K1104M - is a vandal-proof M1 card reader for professional access control systems, with a 13.56 MHz reading frequency and a PC + zinc alloy body. It supports RS-485 and Wiegand interfaces, integrates an acoustic buzzer and offers IK10 protection against impacts. Powered by 12 VDC with consumption ≤ 2 W , it operates from -20 °C to 65 °C and has dimensions of 118 × 76 × 23 mm , making it suitable for robust and reliable installations. Hikvision Technical Data Sheet

DS-K1105EMB - The Hikvision DS-K1105EMB badge reader is a professional access control solution, designed to ensure reliability and advanced integration into security systems. It supports RS-485, Wiegand (W26/W34) and OSDP protocols , ensuring maximum compatibility with different system architectures. It integrates a dual frequency reader for M1 (13.56 MHz) and EM (125 KHz) cards , offering flexibility in authentication modes together with Bluetooth and touch panel control . Equipped with an integrated buzzer for immediate notifications and online update support , it improves the operating experience and device management. Thanks to IP66 protection and a wide temperature range, it is ideal for installations even in outdoor environments. Hikvision Technical Data Sheet

DS-K1105EMKB - The Pro Card Reader is an advanced access control solution designed to ensure security and versatility thanks to the support for RS-485, Wiegand (W26/W34) and OSDP protocols, offering wide compatibility with various systems. It integrates an M1 and EM dual frequency reading module (13.56 MHz and 125 KHz) and allows multiple authentication via badge, PIN and Bluetooth , increasing the level of security. Equipped with a touch panel and integrated buzzer , it improves the user experience and operational feedback, while the contactless door opening function with motion detection via Bluetooth introduces a modern and hygienic interaction. Designed for demanding environments, it offers IP66 protection rating , resistance from -40°C to +65°C and wall installation, making it ideal for professional indoor and outdoor applications. Hikvision Technical Data Sheet

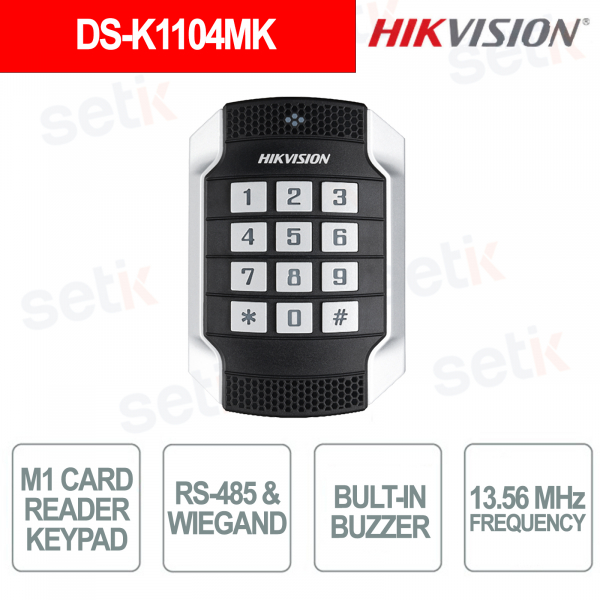

DS-K1104MK - is a vandal-proof M1 card reader for access control systems, equipped with a 12-key keypad for entering codes and commands. It operates at a frequency of 13.56 MHz , integrates an acoustic buzzer , and supports RS-485 and Wiegand interfaces for flexible system management. The PC + zinc alloy body with IK10 protection guarantees high impact resistance, while the 12 VDC power supply and consumption ≤ 2 W facilitate its use in professional installations. Hikvision Technical Data Sheet

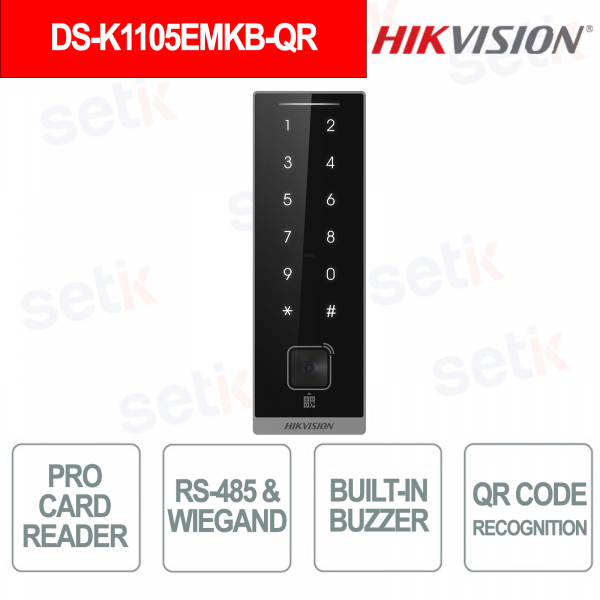

DS-K1105EMKB-QR - The Pro Card Reader is an advanced access control solution that integrates RS-485, Wiegand (W26/W34), and OSDP protocols to ensure maximum compatibility and security in professional systems. Thanks to the M1 and EM dual-frequency reading module (13.56 MHz and 125 KHz) and support for QR codes, badges, PINs, and Bluetooth , it offers a complete and flexible authentication system. The device features a touch panel and integrated buzzer for intuitive use and immediate feedback, while the contactless opening function with motion detection improves the user experience. Designed for professional contexts, it supports online updates and guarantees reliable performance in various advanced security applications. Hikvision Technical Data Sheet
