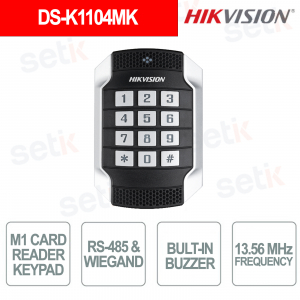

DS-K1104MK M1 13.56 MHz Card Reader with 12-Key RS-485 Wiegand IK10 Keypad - Hikvision

DS-K1104MK M1 13.56 MHz Card Reader with 12-Key RS-485 Wiegand IK10 Keypad - Hikvision

 
-35%

DS-K1104MK - is a vandal-proof M1 card reader for access control systems, equipped with a 12-key keypad for entering codes and commands. It operates at a frequency of 13.56 MHz , integrates an acoustic buzzer , and supports RS-485 and Wiegand interfaces for flexible system management. The PC + zinc alloy body with IK10 protection guarantees high impact resistance, while the 12 VDC power supply and consumption ≤ 2 W facilitate its use in professional installations. Hikvision

Technical Data Sheet

Artikel-Nr.: DS-K1104MK

Marke: Hikvision

EAN: 6954273635725

Manufacturer Object ( [id] => 42 [name] => Hikvision [description] =>

Seit ihrem Geburtsjahr ist ihr Ansehen so stark gewachsen, dass sie 2015 die erste globale Sicherheitsrealität sein wird.

Ab 2016 expandiert Hikvision seinen Markt und wird zum Total Solution Provider für den gesamten Sicherheitsmarkt. So tritt sie in die Welt der Intrusion Detection ein und nähert sich dann neuen Technologien und Intelligenz im Dienste der Menschheit, indem sie sich mit IoT, Machine Vision, Robotik und Automotive-Systemen befasst. Vom Marktführer im Sicherheitsbereich wird Hikvision mit Engagement, Leidenschaft und Kompetenz zu einem Hi-Tech-Unternehmen mit der Vision 4.0, immer mit hohen Zielen.

Setik fühlt sich daher geehrt, ein Hikvision-Vertriebspartner zu sein. Wir werden, wie immer, Produkte der neuesten Generation und die entsprechende technische und kommerzielle Unterstützung anbieten.

[short_description] =>

Videosorveglianza Hikvision

Hikvision wurde 2001 mit dem Ziel gegründet, komplette professionelle Videoüberwachungslösungen zu schaffen und zu entwickeln und wurde schnell zu einem führenden Unternehmen in der Sicherheitswelt.

[id_address] => [date_add] => 2020-03-26 09:28:09 [date_upd] => 2024-06-06 12:13:26 [link_rewrite] => hikvision [meta_title] => Hikvision [meta_keywords] => Hikvision [meta_description] => Hikvision wurde 2001 gegründet und wurde bald zu einem führenden Unternehmen in der Welt der Videoüberwachung. Entdecken Sie jetzt die Produkte im Katalog! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 26 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
INSTALLATEUR FINDEN


DS-K1104MK – VANDAL-PROOF M1 CARD READER - RS-485 & WIEGAND - 12-KEY KEYPAD - IK10

Hikvision

Hikvision DS-K1104MK is a vandal-proof M1 card reader for access control systems, equipped with a 12-key keypad and 13.56 MHz reading frequency. It integrates an acoustic buzzer , RS-485 and Wiegand interfaces and a robust PC + zinc alloy body with IK10 protection. Powered at 12 VDC with consumption ≤ 2 W , it supports ID configuration via DIP Switch and is suitable for professional installations that require reliability and resistance.

Main features:

  • Reader: M1 13.56 MHz
  • Keyboard: 12 keys
  • Protection: IK10
  • Interfaces: RS-485 / Wiegand
  • Buzzer: integrated
  • Material: PC + Zinc Alloy

Further details

✅ Reading frequency:
The Hikvision DS-K1104MK reader uses a 13.56 MHz frequency to read M1 cards , offering an identification mode dedicated to professional access control systems.
✅ Acoustic Buzzer:
It integrates an acoustic buzzer that provides audible feedback during use of the device, facilitating user interaction with the access control system.
✅ RS-485 :
The RS-485 interface allows the DS-K1104MK to be connected to compatible access control systems, providing a dedicated communication interface for integrating the reader into the system.
✅ Wiegand:
Support for the Wiegand interface expands the reader's connection options with access control devices and infrastructures that use this communication standard.
✅ Authentication :
The DS-K1104MK supports 13.56MHz M1 card authentication and features a 12-key keypad , consisting of the numbers 0-9 and the * and # keys, for system interaction.
✅ Material :
The body is made of PC + zinc alloy and features IK10 vandal-proof protection, designed to offer high mechanical resistance to impacts in access control installations.

Technical data sheet

DS-K1104MK
Authentication
Card reading frequency 13.56MHz
General
Power supply 12 VDC, ≤ 500 mA
Power consumption ≤ 2 W
Working temperature -20 °C to 65 °C (-4 °F to 149 °F)
Working humidity 10% to 90% (no condensation)
Dimensions 118 mm × 76 mm × 23 mm (4.65” × 2.99” × 0.91")
Installation Applied for 86 & 120 Gang Box
Weight ≤ 0.52 kg (1.1 lb)
Keypad Keypad with 12 keys (0 to 9, *, #)
Buzzer Support
Function
ID settings via DIP Switch
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
