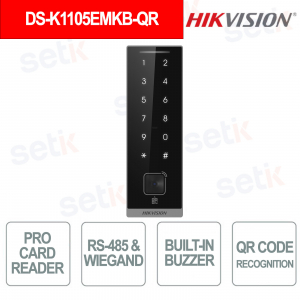

Hikvision QR Code Badge Reader, Bluetooth, RS-485 Wiegand OSDP for Professional Access Control

Hikvision QR Code Badge Reader, Bluetooth, RS-485 Wiegand OSDP for Professional Access Control

-35% Neu

DS-K1105EMKB-QR - The Pro Card Reader is an advanced access control solution that integrates RS-485, Wiegand (W26/W34), and OSDP protocols to ensure maximum compatibility and security in professional systems. Thanks to the M1 and EM dual-frequency reading module (13.56 MHz and 125 KHz) and support for QR codes, badges, PINs, and Bluetooth , it offers a complete and flexible authentication system. The device features a touch panel and integrated buzzer for intuitive use and immediate feedback, while the contactless opening function with motion detection improves the user experience. Designed for professional contexts, it supports online updates and guarantees reliable performance in various advanced security applications. Hikvision

Technical Data Sheet

Artikel-Nr.: DS-K1105EMKB-QR

Marke: Hikvision

EAN: 6936422139780

Manufacturer Object ( [id] => 42 [name] => Hikvision [description] =>

Seit ihrem Geburtsjahr ist ihr Ansehen so stark gewachsen, dass sie 2015 die erste globale Sicherheitsrealität sein wird.

Ab 2016 expandiert Hikvision seinen Markt und wird zum Total Solution Provider für den gesamten Sicherheitsmarkt. So tritt sie in die Welt der Intrusion Detection ein und nähert sich dann neuen Technologien und Intelligenz im Dienste der Menschheit, indem sie sich mit IoT, Machine Vision, Robotik und Automotive-Systemen befasst. Vom Marktführer im Sicherheitsbereich wird Hikvision mit Engagement, Leidenschaft und Kompetenz zu einem Hi-Tech-Unternehmen mit der Vision 4.0, immer mit hohen Zielen.

Setik fühlt sich daher geehrt, ein Hikvision-Vertriebspartner zu sein. Wir werden, wie immer, Produkte der neuesten Generation und die entsprechende technische und kommerzielle Unterstützung anbieten.

[short_description] =>

Videosorveglianza Hikvision

Hikvision wurde 2001 mit dem Ziel gegründet, komplette professionelle Videoüberwachungslösungen zu schaffen und zu entwickeln und wurde schnell zu einem führenden Unternehmen in der Sicherheitswelt.

[id_address] => [date_add] => 2020-03-26 09:28:09 [date_upd] => 2024-06-06 12:13:26 [link_rewrite] => hikvision [meta_title] => Hikvision [meta_keywords] => Hikvision [meta_description] => Hikvision wurde 2001 gegründet und wurde bald zu einem führenden Unternehmen in der Welt der Videoüberwachung. Entdecken Sie jetzt die Produkte im Katalog! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 26 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
INSTALLATEUR FINDEN


DS-K1105EMKB-QR – PRO CARD READER

Hikvision

The Hikvision DS-K1105EMKB-QR Pro Card Reader is an advanced access control solution that integrates RS-485, Wiegand (W26/W34), and OSDP protocols , ensuring high compatibility with professional systems and maximum security. Thanks to the M1 and EM dual-frequency reading module (13.56 MHz and 125 KHz) and support for multiple authentication with badges, PINs, QR codes, and Bluetooth , it offers operational flexibility in any context. The device features a touch panel with an integrated buzzer for intuitive use and immediate feedback, as well as contactless opening with motion detection for a modern and secure experience. It also supports online updates, making it ideal for advanced installations and integrated security systems.

Main features:

- Supports RS-485, Wiegand (W26/W34) and OSDP protocols

- M1 and EM dual frequency reader (13.56 MHz / 125 KHz)

- Multiple authentication: badge, PIN, QR code and Bluetooth

- Touch panel with integrated buzzer

- Contactless opening with motion detection

- Online update support


Further details

RS-485 :
Industrial RS-485 interface designed to ensure stable communication over long distances , ideal for professional access control systems , with support for the OSDP protocol for more secure and advanced device management .
Wiegand:
Compatibility with Wiegand protocol (W26/W34) which ensures immediate integration with existing systems , making it perfect for retrofit installations and guaranteeing reliable transmission of access credentials .
Authentication :
Advanced multiple authentication system that supports RFID M1 and EM badges, PIN, QR code and Bluetooth , offering maximum operational flexibility and security levels adaptable to different application scenarios .
Built-in Buzzer :
Presence of integrated buzzer that provides immediate acoustic feedback on the reading and authentication status, improving the usability of the device and real-time operational control .
QR code recognition :
Integrated QR code reading function that allows quick and contactless access , ideal for visitor management, temporary access and digitalized systems , increasing the efficiency and security of the entrances .

Technical data sheet

DS-K1105EMKB-QR
Interface
RS-485 Support
Wiegand Support
Authentication
Card type EM card; M1 card
General
Power supply

DC 12V

Power consumption

≤6W

Working temperature

-30 °C to 65 °C

Working humidity

10% to 90%

Dimensions

139×46×21.2mm(5.47×1.81×0.83inch)

Installation

Wall mounting

Protective level

IP66

Buzzer

Support

Weight

167.7g

Function
Barcode recognition Not supported
QR code recognition Support
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
