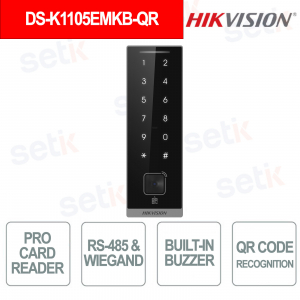

Hikvision QR Code Badge Reader, Bluetooth, RS-485 Wiegand OSDP for Professional Access Control

Hikvision QR Code Badge Reader, Bluetooth, RS-485 Wiegand OSDP for Professional Access Control

 
-35% nuevo

DS-K1105EMKB-QR - The Pro Card Reader is an advanced access control solution that integrates RS-485, Wiegand (W26/W34), and OSDP protocols to ensure maximum compatibility and security in professional systems. Thanks to the M1 and EM dual-frequency reading module (13.56 MHz and 125 KHz) and support for QR codes, badges, PINs, and Bluetooth , it offers a complete and flexible authentication system. The device features a touch panel and integrated buzzer for intuitive use and immediate feedback, while the contactless opening function with motion detection improves the user experience. Designed for professional contexts, it supports online updates and guarantees reliable performance in various advanced security applications. Hikvision

Technical Data Sheet

referencia : DS-K1105EMKB-QR

brand : Hikvision

EAN: 6936422139780

Manufacturer Object ( [id] => 42 [name] => Hikvision [description] =>

Desde el año de su nacimiento, su prestigio ha crecido tanto que en 2015 se convertirá en la primera realidad mundial en materia de seguridad.

A partir de 2016 Hikvision expande su mercado convirtiéndose en Proveedor de Soluciones Totales para todo el mercado de la seguridad. Así entra en el mundo de la detección de intrusos y luego se acerca a las nuevas tecnologías e inteligencia al servicio de la humanidad ocupándose de IO, Visión Artificial, Robótica y Sistemas Automovilísticos. De líder en seguridad, Hikvision se convierte con compromiso, pasión y competencia en una empresa de alta tecnología con una visión 4.0, siempre apuntando alto.

Por lo tanto, Setik se siente honrado de ser un distribuidor de Hikvision. Como siempre, ofreceremos productos de última generación y el apoyo técnico y comercial adecuado.

[short_description] =>

Videosorveglianza Hikvision

Hikvision fue fundada en 2001 con el objetivo de crear y desarrollar soluciones profesionales completas de videovigilancia, convirtiéndose rápidamente en un líder en el mundo de la seguridad.

[id_address] => [date_add] => 2020-03-26 09:28:09 [date_upd] => 2024-06-06 12:13:26 [link_rewrite] => hikvision [meta_title] => Seguridad hikvision [meta_keywords] => Seguridad hikvision [meta_description] => Hikvision fue fundada en 2001 y pronto se convirtió en líder del mundo de la videovigilancia. Descubra ahora los productos del catálogo! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

DS-K1105EMKB-QR – PRO CARD READER

Hikvision

The Hikvision DS-K1105EMKB-QR Pro Card Reader is an advanced access control solution that integrates RS-485, Wiegand (W26/W34), and OSDP protocols , ensuring high compatibility with professional systems and maximum security. Thanks to the M1 and EM dual-frequency reading module (13.56 MHz and 125 KHz) and support for multiple authentication with badges, PINs, QR codes, and Bluetooth , it offers operational flexibility in any context. The device features a touch panel with an integrated buzzer for intuitive use and immediate feedback, as well as contactless opening with motion detection for a modern and secure experience. It also supports online updates, making it ideal for advanced installations and integrated security systems.

Main features:

- Supports RS-485, Wiegand (W26/W34) and OSDP protocols

- M1 and EM dual frequency reader (13.56 MHz / 125 KHz)

- Multiple authentication: badge, PIN, QR code and Bluetooth

- Touch panel with integrated buzzer

- Contactless opening with motion detection

- Online update support

Further details

✅ RS-485 :
Industrial RS-485 interface designed to ensure stable communication over long distances , ideal for professional access control systems , with support for the OSDP protocol for more secure and advanced device management .
✅ Wiegand:
Compatibility with Wiegand protocol (W26/W34) which ensures immediate integration with existing systems , making it perfect for retrofit installations and guaranteeing reliable transmission of access credentials .
✅ Authentication :
Advanced multiple authentication system that supports RFID M1 and EM badges, PIN, QR code and Bluetooth , offering maximum operational flexibility and security levels adaptable to different application scenarios .
✅ Built-in Buzzer :
Presence of integrated buzzer that provides immediate acoustic feedback on the reading and authentication status, improving the usability of the device and real-time operational control .
✅ QR code recognition :
Integrated QR code reading function that allows quick and contactless access , ideal for visitor management, temporary access and digitalized systems , increasing the efficiency and security of the entrances .

Technical data sheet

DS-K1105EMKB-QR
Interface
RS-485 Support
Wiegand Support
Authentication
Card type EM card; M1 card
General
Power supply

DC 12V
Power consumption

≤6W
Working temperature

-30 °C to 65 °C
Working humidity

10% to 90%
Dimensions

139×46×21.2mm（5.47×1.81×0.83inch）
Installation

Wall mounting
Protective level

IP66
Buzzer

Support
Weight

167.7g
Function
Barcode recognition Not supported
QR code recognition Support
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
