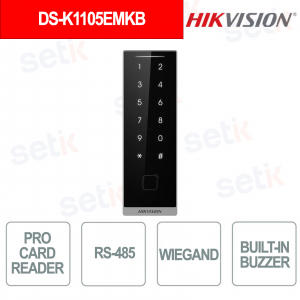

Professional RS-485 Wiegand OSDP Badge Reader with Bluetooth, PIN, and IP66 for Access Control - Hikvision

Professional RS-485 Wiegand OSDP Badge Reader with Bluetooth, PIN, and IP66 for Access Control - Hikvision

 
-35% Neu

DS-K1105EMKB - The Pro Card Reader is an advanced access control solution designed to ensure security and versatility thanks to the support for RS-485, Wiegand (W26/W34) and OSDP protocols, offering wide compatibility with various systems. It integrates an M1 and EM dual frequency reading module (13.56 MHz and 125 KHz) and allows multiple authentication via badge, PIN and Bluetooth , increasing the level of security. Equipped with a touch panel and integrated buzzer , it improves the user experience and operational feedback, while the contactless door opening function with motion detection via Bluetooth introduces a modern and hygienic interaction. Designed for demanding environments, it offers IP66 protection rating , resistance from -40°C to +65°C and wall installation, making it ideal for professional indoor and outdoor applications. Hikvision

Technical Data Sheet

Artikel-Nr.: DS-K1105EMKB

Marke: Hikvision

EAN: 6936422139766

Manufacturer Object ( [id] => 42 [name] => Hikvision [description] =>

Seit ihrem Geburtsjahr ist ihr Ansehen so stark gewachsen, dass sie 2015 die erste globale Sicherheitsrealität sein wird.

Ab 2016 expandiert Hikvision seinen Markt und wird zum Total Solution Provider für den gesamten Sicherheitsmarkt. So tritt sie in die Welt der Intrusion Detection ein und nähert sich dann neuen Technologien und Intelligenz im Dienste der Menschheit, indem sie sich mit IoT, Machine Vision, Robotik und Automotive-Systemen befasst. Vom Marktführer im Sicherheitsbereich wird Hikvision mit Engagement, Leidenschaft und Kompetenz zu einem Hi-Tech-Unternehmen mit der Vision 4.0, immer mit hohen Zielen.

Setik fühlt sich daher geehrt, ein Hikvision-Vertriebspartner zu sein. Wir werden, wie immer, Produkte der neuesten Generation und die entsprechende technische und kommerzielle Unterstützung anbieten.

[short_description] =>

Videosorveglianza Hikvision

Hikvision wurde 2001 mit dem Ziel gegründet, komplette professionelle Videoüberwachungslösungen zu schaffen und zu entwickeln und wurde schnell zu einem führenden Unternehmen in der Sicherheitswelt.

[id_address] => [date_add] => 2020-03-26 09:28:09 [date_upd] => 2024-06-06 12:13:26 [link_rewrite] => hikvision [meta_title] => Hikvision [meta_keywords] => Hikvision [meta_description] => Hikvision wurde 2001 gegründet und wurde bald zu einem führenden Unternehmen in der Welt der Videoüberwachung. Entdecken Sie jetzt die Produkte im Katalog! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 26 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
INSTALLATEUR FINDEN

DS-K1105EMKB – PRO CARD READER

Hikvision

The Hikvision DS-K1105EMKB Pro Card Reader is an advanced access control solution designed for professional environments thanks to its support for RS-485, Wiegand (W26/W34) and OSDP protocols, ensuring maximum compatibility and integration. It integrates a dual frequency M1 and EM reading module (13.56 MHz and 125 KHz) and offers multiple authentication via badge, PIN and Bluetooth , increasing security and flexibility. The device is equipped with a touch panel with an integrated buzzer for intuitive use and immediate feedback, as well as a hands-free function with motion detection via Bluetooth for contactless door opening. The robust structure with IP66 protection and operating range from -40°C to +65°C makes it ideal for high-performance indoor and outdoor installations.

Main features:

- Supports RS-485, Wiegand (W26/W34) and OSDP protocols

- M1 and EM dual frequency reader (13.56 MHz / 125 KHz)

- Multiple authentication: badge, PIN, Bluetooth

- Touch panel with integrated buzzer

- Contactless opening with motion detection

- IP66 protection and wide temperature range (-40°C +65°C)

Further details

✅ RS-485 :
Industrial RS-485 serial communication interface designed to ensure stable and reliable data transmission over long distances , ideal for professional access control systems with OSDP protocol support for greater security and advanced management.
✅ Wiegand:
Compatibility with Wiegand protocol (W26/W34) , a widespread standard in security systems, which allows easy integration with existing controllers and infrastructures , ensuring rapid and secure transmission of credentials.
✅ Authentication :
Advanced multiple authentication system that supports RFID badges (M1 and EM), PIN and Bluetooth , offering maximum operational flexibility and customizable security levels for each application context.
✅ Built-in Buzzer :
Built-in buzzer provides instant audible feedback on read and authentication status, improving user experience and facilitating real-time operation monitoring.

Technical data sheet

DS-K1105EMKB
Interface
RS-485 Support
Wiegand Support
Authentication
Card type EM card;M1 card
General
Power supply

DC 12V
Power consumption

≤6W
Working temperature

-30 °C to 65 °C
Working humidity

10% to 90%
Dimensions

139×46×21.2mm（5.47×1.81×0.83inch）
Installation

Wall mounting
Protective level

IP66
Buzzer

Support
Weight

167.7g
Time synchronization Support
