Professional RS-485 Wiegand OSDP Badge Reader with Bluetooth, PIN, and IP66 for Access Control - Hikvision

Professional RS-485 Wiegand OSDP Badge Reader with Bluetooth, PIN, and IP66 for Access Control - Hikvision

 
-35% nuevo

DS-K1105EMKB - The Pro Card Reader is an advanced access control solution designed to ensure security and versatility thanks to the support for RS-485, Wiegand (W26/W34) and OSDP protocols, offering wide compatibility with various systems. It integrates an M1 and EM dual frequency reading module (13.56 MHz and 125 KHz) and allows multiple authentication via badge, PIN and Bluetooth , increasing the level of security. Equipped with a touch panel and integrated buzzer , it improves the user experience and operational feedback, while the contactless door opening function with motion detection via Bluetooth introduces a modern and hygienic interaction. Designed for demanding environments, it offers IP66 protection rating , resistance from -40°C to +65°C and wall installation, making it ideal for professional indoor and outdoor applications. Hikvision

Technical Data Sheet

referencia : DS-K1105EMKB

brand : Hikvision

EAN: 6936422139766

Manufacturer Object ( [id] => 42 [name] => Hikvision [description] =>

Desde el año de su nacimiento, su prestigio ha crecido tanto que en 2015 se convertirá en la primera realidad mundial en materia de seguridad.

A partir de 2016 Hikvision expande su mercado convirtiéndose en Proveedor de Soluciones Totales para todo el mercado de la seguridad. Así entra en el mundo de la detección de intrusos y luego se acerca a las nuevas tecnologías e inteligencia al servicio de la humanidad ocupándose de IO, Visión Artificial, Robótica y Sistemas Automovilísticos. De líder en seguridad, Hikvision se convierte con compromiso, pasión y competencia en una empresa de alta tecnología con una visión 4.0, siempre apuntando alto.

Por lo tanto, Setik se siente honrado de ser un distribuidor de Hikvision. Como siempre, ofreceremos productos de última generación y el apoyo técnico y comercial adecuado.

[short_description] =>

Videosorveglianza Hikvision

Hikvision fue fundada en 2001 con el objetivo de crear y desarrollar soluciones profesionales completas de videovigilancia, convirtiéndose rápidamente en un líder en el mundo de la seguridad.

[id_address] => [date_add] => 2020-03-26 09:28:09 [date_upd] => 2024-06-06 12:13:26 [link_rewrite] => hikvision [meta_title] => Seguridad hikvision [meta_keywords] => Seguridad hikvision [meta_description] => Hikvision fue fundada en 2001 y pronto se convirtió en líder del mundo de la videovigilancia. Descubra ahora los productos del catálogo! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

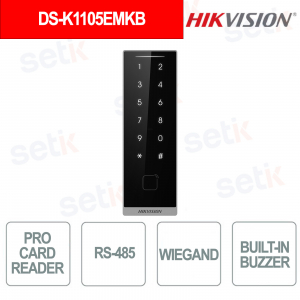

DS-K1105EMKB – PRO CARD READER

Hikvision

The Hikvision DS-K1105EMKB Pro Card Reader is an advanced access control solution designed for professional environments thanks to its support for RS-485, Wiegand (W26/W34) and OSDP protocols, ensuring maximum compatibility and integration. It integrates a dual frequency M1 and EM reading module (13.56 MHz and 125 KHz) and offers multiple authentication via badge, PIN and Bluetooth , increasing security and flexibility. The device is equipped with a touch panel with an integrated buzzer for intuitive use and immediate feedback, as well as a hands-free function with motion detection via Bluetooth for contactless door opening. The robust structure with IP66 protection and operating range from -40°C to +65°C makes it ideal for high-performance indoor and outdoor installations.

Main features:

- Supports RS-485, Wiegand (W26/W34) and OSDP protocols

- M1 and EM dual frequency reader (13.56 MHz / 125 KHz)

- Multiple authentication: badge, PIN, Bluetooth

- Touch panel with integrated buzzer

- Contactless opening with motion detection

- IP66 protection and wide temperature range (-40°C +65°C)

Further details

✅ RS-485 :
Industrial RS-485 serial communication interface designed to ensure stable and reliable data transmission over long distances , ideal for professional access control systems with OSDP protocol support for greater security and advanced management.
✅ Wiegand:
Compatibility with Wiegand protocol (W26/W34) , a widespread standard in security systems, which allows easy integration with existing controllers and infrastructures , ensuring rapid and secure transmission of credentials.
✅ Authentication :
Advanced multiple authentication system that supports RFID badges (M1 and EM), PIN and Bluetooth , offering maximum operational flexibility and customizable security levels for each application context.
✅ Built-in Buzzer :
Built-in buzzer provides instant audible feedback on read and authentication status, improving user experience and facilitating real-time operation monitoring.

Technical data sheet

DS-K1105EMKB
Interface
RS-485 Support
Wiegand Support
Authentication
Card type EM card;M1 card
General
Power supply

DC 12V
Power consumption

≤6W
Working temperature

-30 °C to 65 °C
Working humidity

10% to 90%
Dimensions

139×46×21.2mm（5.47×1.81×0.83inch）
Installation

Wall mounting
Protective level

IP66
Buzzer

Support
Weight

167.7g
Time synchronization Support
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
