147756.372.BL1 | 237mm Wall Mount for One IP Camera


Ajax

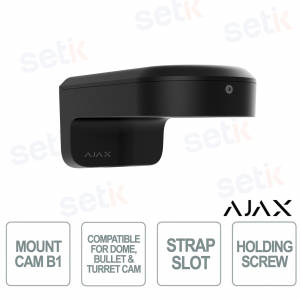

The Ajax MountCam B1, 147756.372.BL1, black , is a professional mounting bracket designed to ensure solid, tidy installations that integrate seamlessly with Ajax IP cameras. Its robust and discreet black design is suitable for both indoor and outdoor environments, ensuring stability even in difficult positions such as under eaves and ceilings. Thanks to pre-drilled holes, an internal cable gland, and a complete hardware kit, installation is quick and easy, even for a single installer. Compatible with numerous Ajax models, the MountCam B1 offers a durable, elegant mount that is ideal for any professional video surveillance system.

Main specifications:

- Black color with robust and compact design

- Pre-drilled holes for quick and precise installation

- Internal cable management for neat cable management

- Complete kit of accessories included

- Wall or ceiling mountable, suitable for indoor/outdoor

Further details

Sturdy and durable structure :
Ideal for critical locations such as under eaves, narrow walls and ceilings, maintaining a stable camera position.
Pre-drilled holes for quick assembly:
They simplify the installer's work and guarantee precise fixing in just a few steps.
Dedicated internal cable gland:
Useful for hiding and organizing cables inside the bracket, ensuring a clean aesthetic and greater protection.
Versatile installation :
Wall or ceiling mounted, making the bracket suitable for any video surveillance scenario.
Compatibility:
  • BulletCam, TurretCam, DomeCam Mini
  • BulletCam HL, TurretCam HL, DomeCam Mini HL

Technical data sheet

147756.372.BL1

Key features Strap slots
to secure the mount to a pole
Holding screw
to secure the mount to a bracket
Features for easy installation
  • pre-drilled fixing points
  • space for organizing cables inside the mount
  • captive screws
Recommendations The accessory is designed for indoor and outdoor use
MountCam B1 is sold separately from Ajax cameras.
Product

Dimensions:
96 × 117 × 237 mm
3.79" × 4.61" × 9.33"
Weight
810 g
1.79 lb
Operating temperature range
from −40 °C to +60 °C
from −40 °F to 140 °F

Colors Black
Complete set MountCam B1
Installation template
Installation kit
Quick start guide
Warranty 24 months
