Dahua SG5028FX is a 28-port Layer 2+ Manageable Network Switch: Port 1-24: 24 × RJ-45 10/100/1000 Mbps - Port 25-28: 4 × SFP+ 1/10 Gbps - MAC Table Size 32K - Packet Buffer 16Mbit - Switching Capacity 128Gbps - 1x Console Port - 2kV Lightning Proof - To extend your business network
TOTALER AUSVERKAUF ×
CLEARANCE SALE!
Take advantage of our must-see outing offers.
Discover the promo >>

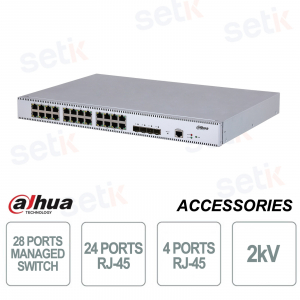

28 PORT POE NETWORK SWITCH + THUNDERPROOF 2KV - DAHUA - SG5028FX

- 24 × RJ-45 10/100/1000 Mbps - 4 × SFP+ 1/10 Gbps - Layer2- Manageable MAC Table Size 32K - Packet Buffer 16Mbit - Switching Capacity 128Gbps - 1x Console Port - Lightning Protection 2kV - To extend the corporate network - Dimensions 440 mm × 308.3 mm × 44.0 mm

- Network Switch - Dahua - SG5028FX
- 28 Ports 24 × RJ-45 10/100/1000 Mbps - 4 × SFP+ 1/10 Gbps
- Layer 2+
- Manageable
- 1x Console Port
- Packet buffer size 16Mbits
- MAC Table Size 32K
- 128Gbps switching capacity
- Consumption: Idling: 13W Full load: 48W
- Lightning protection: 4kV Common / 2kV Differential
- Dimensions: 440mm×308.3mm×44.0mm
- Product net weight: 3.3 kg
- Supported operating temperature: -20°C to 55°C
Technical data sheet
Model | SG5028FX |
Basic | |
Layer | Layer 2 |
Switching Capacity | 128 Gbps |
Packet Forwarding Rate | 95.232 Mpps |
Description of Function Slots | Port 1-24: 24 × RJ-45 10/100/1000 Mbps Port 25-28: 4 × SFP+ 1/10 Gbps |
Operating Temperature | –20 °C to +55 °C (–4 °F to +131 °F) |
Operating Humidity | 5%–95% (RH), non-condensing |
Storage Humidity | 5%–95% (RH), non-condensing |
Power Supply | 2 built-in power supplies: 100–240 VAC, 50/60 Hz, 0.8 A |
Power Consumption | Idling: ≤13W ; Full load: 48W |
Statics Protection | Air discharge: 8 kV; Contact discharge: 6 kV |
Lightning Protection | Common mode: 4 kV; Differential mode: 2 kV |
Net Weight | 3.3 kg (7.28 lb) |
Gross Weight | 4.8 kg (10.58 lb) |
Product Dimensions | 440 mm × 308.3 mm × 44.0 mm (17.32" × 12.14" × 1.73") (L × W × H) |
Packaging Dimensions | 528 mm × 412 mm × 112 mm (20.79" × 16.22" × 4.41") (L × W × H) |
Casing Material | Metal |
Installation | Rack mount; desktop mount |
Hardware | |
Ethernet Port | 24 |
Debugging | 1 × Console port |
Reset Button | 1 |
Performance | |
Packet Buffer Memory | 16 Mbit |
Jumbo Frame | 12288 Bytes |
MAC Table Size | 32K |
Communication Standard | IEEE 802.3; IEEE 802.3u; IEEE 802.3x; IEEE 802.3ab; IEEE 802.3z; IEEE 802.3ad |
VLAN Number | 4094 |
VLAN Interface | 10 |
Feature | |
Ethernet Loop Protection | STP/RSTP/ERPS |
VLAN Function | Port-based VLAN |
Link Aggregation | LACP Static link aggregation Dynamic link aggregation |
PortFeature | IEEE 802.3x flow control Unknown unicast suppression Multicast storm control Broadcast storm control |
IEEE 802.3x Flow Control | Yes |
Multicast | IGMP Snooping |
Routing | Static routing |
DHCP Function | DHCP Client |
Security | 802.1X Port isolation Radius HTTPS |
QoS/ACL | SP/WRR queue scheduling 802.1p and DSCP priority mapping Port speed limit |
Equipment Management | Cloud management; Web SNMP V1/V2C/V3 NTP Logs Ping |
General | |
Packing List | 1 × User Manual; 1 × Legal and Regulatory Information; 1 × Warranty Card 1 × List of Hazardous Substances; 1 × Power Cord; 1 × Rack Mounting Kit |
