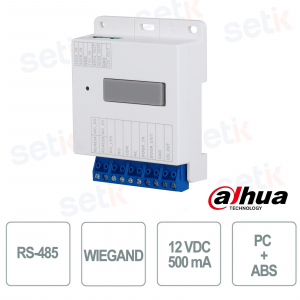

DEE111R | RS-485 EXPANSION MODULE

Dahua

The Dahua DEE111R extension module is designed for professional access control systems, with RS-485 communication and Wiegand support. Made of durable PC+ABS material, it ensures reliability in both indoor and outdoor environments and operates over a wide temperature range (-30°C to +60°C). It provides 12 VDC/500 mA power, supports up to 8 devices in cascade with stable transmission up to 100 meters and integrates functions such as lock control, exit button and door status detection .

Main specifications:

- Durable PC+ABS construction and CE EMC/LVD certifications

- RS-485 and Wiegand communication selectable via switch

- 12 VDC/500 mA power supply and support for up to 8 devices in cascade

- Stable transmission up to 100 m with 0.5 mm² RVV flexible cable

- Integrated functions: lock control, exit button, door status detection

Further details

RS-485 :
The module supports RS-485 communication, with dedicated input and output ports. This mode ensures stable transmission up to 100 meters, ideal for complex and professional access control systems.
Wiegand:
It features a Wiegand port that can be easily switched to RS-485 via a 1-bit switch. This flexibility allows for integration with various card readers and controllers, making the system scalable and versatile .
Power indicator light:
The module integrates a power indicator light that signals the operating status of the unit in real time, ensuring immediate control and reducing maintenance times .
Status indicator light:
A second indicator light dedicated to the operating status provides clear indications on the system's functioning and any anomalies, improving overall safety and reliability .
DEE111R dimensions

Technical data sheet

PFC300N

Performance

Casing Material

PC + ABS

Port

RS-485

1 for output, 1 for input, and 1 is the port for the RS-485 extension, which can be changed to Wiegand mode by toggling the 1-bit switch. If you toggle the 1-bit switch on the right to 0, RS-485 mode will be enabled.

Wiegand

1 port, which can be changed to RS-485 mode by toggling the 1-bit switch. If you toggle the 1-bit switch on the right to 1, Wiegand mode will be enabled.

Power Output

1 port (12 V, 500 mA)

Exit Button

1 channel

Door Status Detection

1 channel

Lock Control

1 channel

General

Appearance Color

White

Power Supply

12V, 1A

Power Adapter

Optional

Installation Surface Mount;Guide Rail Mount
Certifications CE EMC; CE LVD
Product Dimensions 82.6 mm × 65.0 mm × 25 mm (3.25" × 2.56" × 0.98")
Operating Temperature –30 °C to +60 °C (–22 °F to +140 °F)
Operating Humidity 10%–90% (RH), non-condensing
Operating Altitude 0 m–3,000 m (0 ft–9,842.52 ft)
Power Consumption ≤0.4 W (standby), ≤1.0 W (working, 12 V output with no load)
Gross Weight 0.15 kg (0.33 lb)
Storage Temperature 0 °C to +40 °C (+32 °F to +104 °F)
Storage Humidity 30%–75% (RH)
