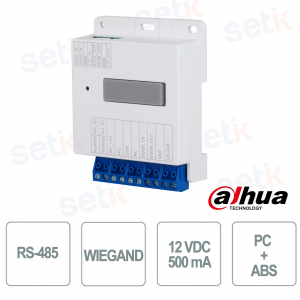

DEE111R | RS-485 EXPANSION MODULE

The Dahua DEE111R extension module is designed for professional access control systems, with RS-485 communication and Wiegand support. Made of durable PC+ABS material, it ensures reliability in both indoor and outdoor environments and operates over a wide temperature range (-30°C to +60°C). It provides 12 VDC/500 mA power, supports up to 8 devices in cascade with stable transmission up to 100 meters and integrates functions such as lock control, exit button and door status detection .
Main specifications:
- Durable PC+ABS construction and CE EMC/LVD certifications
- RS-485 and Wiegand communication selectable via switch
- 12 VDC/500 mA power supply and support for up to 8 devices in cascade
- Stable transmission up to 100 m with 0.5 mm² RVV flexible cable
- Integrated functions: lock control, exit button, door status detection
Further details

Technical data sheet
PFC300N | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Performance |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Casing Material |
PC + ABS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Port |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
RS-485 |
1 for output, 1 for input, and 1 is the port for the RS-485 extension, which can be changed to Wiegand mode by toggling the 1-bit switch. If you toggle the 1-bit switch on the right to 0, RS-485 mode will be enabled. |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Wiegand |
1 port, which can be changed to RS-485 mode by toggling the 1-bit switch. If you toggle the 1-bit switch on the right to 1, Wiegand mode will be enabled. |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Output |
1 port (12 V, 500 mA) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Exit Button |
1 channel |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Door Status Detection |
1 channel |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Lock Control |
1 channel |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
General |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Appearance Color |
White |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Supply |
12V, 1A |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Adapter |
Optional |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Installation | Surface Mount;Guide Rail Mount | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Certifications | CE EMC; CE LVD | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Product Dimensions | 82.6 mm × 65.0 mm × 25 mm (3.25" × 2.56" × 0.98") | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Temperature | –30 °C to +60 °C (–22 °F to +140 °F) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Humidity | 10%–90% (RH), non-condensing | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Altitude | 0 m–3,000 m (0 ft–9,842.52 ft) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Consumption | ≤0.4 W (standby), ≤1.0 W (working, 12 V output with no load) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gross Weight | 0.15 kg (0.33 lb) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage Temperature | 0 °C to +40 °C (+32 °F to +104 °F) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage Humidity | 30%–75% (RH) |
