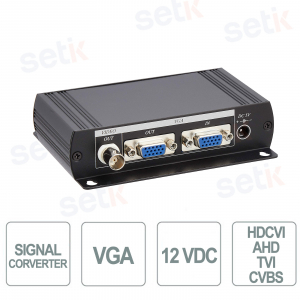

VC01 VGA-CVBS Video Converter with BNC Output, VGA Loop-Out and HD-CVI Support up to 500m

VC01 VGA-CVBS Video Converter with BNC Output, VGA Loop-Out and HD-CVI Support up to 500m

-57%

VC01 - The video converter converts VGA signals to CVBS with BNC output, supports resolutions up to 1024x768 at 75Hz and HD-CVI signals over UTP cable up to 500 meters. It includes VGA loop-out for dual displays, a built-in OSD, advanced image adjustments (brightness, contrast, sharpness), Windows/iOS compatibility, and simple installation, making it ideal for video surveillance and professional applications. Dahua

Technical Data Sheet

referencia : VC01

brand : Dahua

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

La empresa asiática, fundada en 2001, debe su reputación a la excelente calidad de sus productos en términos de rendimiento y capacidad. La gama de productos de Dahua abarca desde los sistemas clásicos de CCTV hasta los sistemas de seguridad más complejos y articulados: no sólo la videovigilancia, sino también el control de acceso, los sistemas de videoportería, los productos de detección térmica y mucho más. La fiabilidad, la tecnología de punta y los precios competitivos que ofrece Dahua son sólo algunas de las razones por las que Setik siempre ha elegido distribuir la marca. Dahua es desde hace años un sólido punto de referencia en el mercado internacional de los circuitos cerrados de televisión, gracias a las enormes inversiones que cada año se dedican a la investigación y el desarrollo. Las cifras hablan por sí mismas: desde 2016 hasta hoy Dahua ha registrado más de 800 patentes con su propia marca. Actualmente Dahua puede presumir de estar entre los 10 primeros líderes mundiales en el mundo de la seguridad. Este año Dahua fue premiado con el 2º puesto en el ranking "2019 TOP SECURITY 50".

Los productos de la marca Dahua vendidos por Setik SRL pueden ser entregados como productos OEM, es decir, productos que a todos los efectos son productos originales de Dahua, pero que tienen una apariencia estética diferente reservada para el mercado en línea (generalmente en términos de logotipo y embalaje). Esto no afecta en modo alguno a la garantía y a las características técnicas del producto, que es siempre genuino de Dahua, ni a las actualizaciones y la funcionalidad.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. es uno de los principales proveedores mundiales de soluciones de videovigilancia, con más de 13.000 empleados y 35 filiales activas en todo el mundo.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-06-24 15:40:21 [link_rewrite] => dahua [meta_title] => Los mejores productos Dahua: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Productos Dahua para la videovigilancia digital IP, HYBRIDA, HD-SDI, HDCVI, como cámaras, grabadoras, control de acceso, accesorios y videointercomunicadores wifi. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR


LIQUIDACION TOTAL ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

VC01 | VIDEO SIGNAL CONVERTER - VGA INPUT - 1280x1024 RESOLUTION - HDMI/CVBS OUTPUTS


Dahua

The VC01 video converter converts VGA signals to CVBS with a BNC output, offering high compatibility with Windows and iOS systems. It supports resolutions up to 1024x768 at 75Hz and HD-CVI signals up to 500 meters via UTP cable. It includes an OSD function and advanced adjustments for clear, customized images. Ideal for video surveillance systems and professional AV applications.

Main specifications:

- VGA Input / BNC Output

- Resolution up to 1024x768 @75Hz

- VGA loop-out output for dual displays

- Supports OSD and image adjustments

- Compatible with Windows and iOS

- HD-CVI signal up to 500m on UTP

Further details

VGA input:
The device features a VGA video input via a 15-pin D-sub female connector , compatible with major video output devices such as PCs, DVRs, media players, or embedded systems. This input enables stable, high-quality conversion of the VGA signal to analog CVBS standards, with both NTSC and PAL support .
Maximum resolution :
The converter supports VGA resolutions up to 1024 x 768 pixels at 75Hz , ensuring smooth transmission and optimal video quality even with high-frequency signals. This makes it perfect for professional scenarios where image definition is essential.

Technical data sheet

Model VC01
Technical specifications
Maximum Resolution VGA at 1024 x 768, CVBS at NTSC/PAL
Video Input 1 x 15 pin D female
Video Output 1 x BNC
Video Loop-out 1 x 15 pin D female
Diet DC 5V 1A Regulated
Power consumption 500mA
Temperature Operation: 0 to 55°C
Box: -20 to 85°C
Humidity: Up to 95%
Dimensions mm

125 x 95 x 30

Weight g

256
