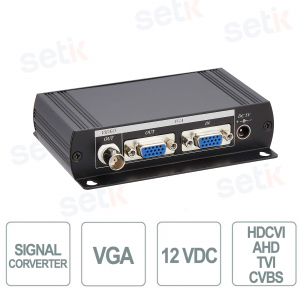

VC01 VGA-CVBS Video Converter with BNC Output, VGA Loop-Out and HD-CVI Support up to 500m

VC01 VGA-CVBS Video Converter with BNC Output, VGA Loop-Out and HD-CVI Support up to 500m

-57%

VC01 - The video converter converts VGA signals to CVBS with BNC output, supports resolutions up to 1024x768 at 75Hz and HD-CVI signals over UTP cable up to 500 meters. It includes VGA loop-out for dual displays, a built-in OSD, advanced image adjustments (brightness, contrast, sharpness), Windows/iOS compatibility, and simple installation, making it ideal for video surveillance and professional applications. Dahua

Technical Data Sheet

Artikel-Nr.: VC01

Marke: Dahua

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

Das 2001 gegründete asiatische Unternehmen verdankt seinen Ruf der hervorragenden Qualität seiner Produkte in Bezug auf Leistung und Kapazität. Die Produktpalette von Dahua reicht von klassischen CCTV-Systemen bis hin zu komplexeren und gegliederten Sicherheitssystemen: nicht nur Videoüberwachung, sondern auch Zutrittskontrolle, Video-Zugangssysteme, Produkte zur Wärmeerkennung und vieles mehr. Die Zuverlässigkeit, die hochmoderne Technologie und die wettbewerbsfähigen Preise, die Dahua bietet, sind nur einige der Gründe, warum Setik sich immer für den Vertrieb der Marke entschieden hat. Dahua ist seit Jahren ein solider Bezugspunkt auf dem internationalen CCTV-Markt, dank der enormen Investitionen, die jedes Jahr in Forschung und Entwicklung fließen. Die Zahlen sprechen für sich: von 2016 bis heute hat Dahua mehr als 800 Patente unter seiner eigenen Marke angemeldet. Gegenwärtig kann sich Dahua rühmen, zu den 10 weltweit führenden Unternehmen in der Welt der Sicherheit zu gehören. In diesem Jahr wurde Dahua mit dem 2. Platz in der Rangliste "2018 TOP SECURITY 50" ausgezeichnet.

Die Produkte der Marke Dahua, die von Setik SRL verkauft werden, können als OEM-Produkte geliefert werden, d.h. Produkte, die vollständig original Dahua-Produkte sind, aber ein anderes ästhetisches Erscheinungsbild haben, das dem Online-Markt vorbehalten ist (im Allgemeinen in Bezug auf Logo und Verpackung). Dies beeinträchtigt in keiner Weise die Garantie und die technischen Eigenschaften des Produkts, das immer ein Original Dahua ist, noch irgendwelche Aktualisierungen und Funktionalitäten.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. ist einer der weltweit führenden Anbieter von Videoüberwachungslösungen mit mehr als 13.000 Mitarbeitern und 35 aktiven Tochtergesellschaften weltweit.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-06-24 15:40:21 [link_rewrite] => dahua [meta_title] => Die besten Dahua-Produkte: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Dahua-Produkte für die digitale Videoüberwachung IP, HYBRIDA, HD-SDI, HDCVI, wie z.B. Kameras, Rekorder, Zugangskontrolle, Zubehör und Wifi-Videosprechanlagen. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 26 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
INSTALLATEUR FINDEN


TOTALER AUSVERKAUF ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

VC01 | VIDEO SIGNAL CONVERTER - VGA INPUT - 1280x1024 RESOLUTION - HDMI/CVBS OUTPUTS


Dahua

The VC01 video converter converts VGA signals to CVBS with a BNC output, offering high compatibility with Windows and iOS systems. It supports resolutions up to 1024x768 at 75Hz and HD-CVI signals up to 500 meters via UTP cable. It includes an OSD function and advanced adjustments for clear, customized images. Ideal for video surveillance systems and professional AV applications.

Main specifications:

- VGA Input / BNC Output

- Resolution up to 1024x768 @75Hz

- VGA loop-out output for dual displays

- Supports OSD and image adjustments

- Compatible with Windows and iOS

- HD-CVI signal up to 500m on UTP

Further details

VGA input:
The device features a VGA video input via a 15-pin D-sub female connector , compatible with major video output devices such as PCs, DVRs, media players, or embedded systems. This input enables stable, high-quality conversion of the VGA signal to analog CVBS standards, with both NTSC and PAL support .
Maximum resolution :
The converter supports VGA resolutions up to 1024 x 768 pixels at 75Hz , ensuring smooth transmission and optimal video quality even with high-frequency signals. This makes it perfect for professional scenarios where image definition is essential.

Technical data sheet

Model VC01
Technical specifications
Maximum Resolution VGA at 1024 x 768, CVBS at NTSC/PAL
Video Input 1 x 15 pin D female
Video Output 1 x BNC
Video Loop-out 1 x 15 pin D female
Diet DC 5V 1A Regulated
Power consumption 500mA
Temperature Operation: 0 to 55°C
Box: -20 to 85°C
Humidity: Up to 95%
Dimensions mm

125 x 95 x 30

Weight g

256
