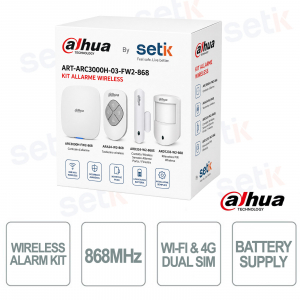

Dahua ART-ARC3000H-03-FW2-868 4G LTE Wireless Alarm Kit with PIR, Magnetic Contact and Remote Control

Dahua ART-ARC3000H-03-FW2-868 4G LTE Wireless Alarm Kit with PIR, Magnetic Contact and Remote Control

 
EN PROMOCIÓN -60%

ART-ARC3000H-03-FW2-868 - The wireless alarm kit is a professional solution for protecting homes and businesses, consisting of a 4G HUB control panel , wireless PIR sensor , door/window magnetic contact and wireless remote control . Thanks to Ethernet, Wi-Fi and 4G LTE connectivity with Dual SIM , it offers reliable communications and remote management via App with real-time notifications, SMS and calls. The PIR sensor guarantees coverage of up to 12 meters with immunity to pets up to 18 kg , while the magnetic contact detects openings and tampering attempts. AES128 technology, two-way communication , frequency hopping and support for up to 150 wireless devices ensure an advanced, stable and easily expandable security system. Dahua


DOWNLOAD THE DAHUA ALARM PRICE LIST TO DISCOVER ALL THE ACCESSORIES! BROCHURE


Technical Data Sheet


FREE DAHUA STICKER SIGN!


referencia : ART-ARC3000H-03-FW2-868

brand : Dahua

EAN: 6923172504999

Disponibilità: 1

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

La empresa asiática, fundada en 2001, debe su reputación a la excelente calidad de sus productos en términos de rendimiento y capacidad. La gama de productos de Dahua abarca desde los sistemas clásicos de CCTV hasta los sistemas de seguridad más complejos y articulados: no sólo la videovigilancia, sino también el control de acceso, los sistemas de videoportería, los productos de detección térmica y mucho más. La fiabilidad, la tecnología de punta y los precios competitivos que ofrece Dahua son sólo algunas de las razones por las que Setik siempre ha elegido distribuir la marca. Dahua es desde hace años un sólido punto de referencia en el mercado internacional de los circuitos cerrados de televisión, gracias a las enormes inversiones que cada año se dedican a la investigación y el desarrollo. Las cifras hablan por sí mismas: desde 2016 hasta hoy Dahua ha registrado más de 800 patentes con su propia marca. Actualmente Dahua puede presumir de estar entre los 10 primeros líderes mundiales en el mundo de la seguridad. Este año Dahua fue premiado con el 2º puesto en el ranking "2019 TOP SECURITY 50".

Los productos de la marca Dahua vendidos por Setik SRL pueden ser entregados como productos OEM, es decir, productos que a todos los efectos son productos originales de Dahua, pero que tienen una apariencia estética diferente reservada para el mercado en línea (generalmente en términos de logotipo y embalaje). Esto no afecta en modo alguno a la garantía y a las características técnicas del producto, que es siempre genuino de Dahua, ni a las actualizaciones y la funcionalidad.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. es uno de los principales proveedores mundiales de soluciones de videovigilancia, con más de 13.000 empleados y 35 filiales activas en todo el mundo.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2026-02-19 16:06:32 [link_rewrite] => dahua [meta_title] => Los mejores productos Dahua: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Productos Dahua para la videovigilancia digital IP, HYBRIDA, HD-SDI, HDCVI, como cámaras, grabadoras, control de acceso, accesorios y videointercomunicadores wifi. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR


ART-ARC3000H-03-FW2-868 | DAHUA ALARM KIT - WIFI & 4G DUAL-SIM - FREQUENCY 868MHz


Dahua

DOWNLOAD THE DAHUA ALARM PRICE LIST TO DISCOVER ALL THE ACCESSORIES! BROCHURE


FREE DAHUA STICKER SIGN!


The Dahua ART-ARC3000H-03-FW2-868 wireless alarm kit represents a complete and professional solution for the security of homes, offices and shops, integrating a 4G LTE HUB control panel , wireless PIR sensor , door/window magnetic contact and wireless remote control . Thanks to Ethernet, Wi-Fi and 4G cellular network connectivity with Dual SIM , it guarantees reliable communications and remote management via App with push notifications, SMS and calls. The PIR detector offers coverage of up to 12 meters , pet immunity up to 18 kg and digital temperature compensation, while the system uses AES128 encryption , two-way communication and frequency hopping for advanced and stable protection.

Main specifications:

- Complete kit: 4G HUB, PIR, magnetic contact, remote control

- Connectivity: Ethernet, Wi-Fi, 4G LTE Dual SIM

- PIR coverage: up to 12m

- Animal immunity: up to 18 kg

- Security: AES128 and two-way communication

- Remote management: Apps, SMS and calls

- Expandability: up to 150 wireless devices

- Protection: SOS alarm and anti-sabotage

Further details

  • Alarm center
  • 868MHz wireless communication (two-way): with FHSS technology for greater safety and stability
  • Compatible with 2.4GHz Wi-Fi: for easy, cable-free connection
  • Mobile and cloud communication support: remote access and management via mobile app
  • Compact and elegant design: easy to install and suitable for any environment
  • Wide compatibility with Dahua sensors and accessories: for customizable and modular protection
  • Wireless keypad
  • Two-way wireless communication protocol: 868MHz frequency
  • Operating status indicator (green for normal, red for abnormal)
  • Coverage up to 900 meters in open space
  • 4 buttons (Home, Away, Disarm, SOS)
  • SOS emergency alarm (via dedicated button)
  • 868MHz Wireless Door/Window Alarm Sensor Contact
  • Detects opening, shocks and tilts up to 25°
  • Two-way communication with AES128 encryption
  • Wireless range up to 1,200 m in open field
  • Overheating alarm and temperature detection
  • Long-lasting battery up to 3 years
  • Easy setup via App
  • Wireless PIR Detector
  • Two-way wireless communication frequency 868Mhz
  • Distance up to 1,600m in open field without obstacles
  • Pet Immune (immune to pet detection)
  • Frequency Hopping
  • Powered by CR123A battery
  • Alarm indicator light (green)

Technical data sheet

Model ART-ARC3000H-03-FW2-868
Input and Output
Wireless Protection Zone Hub: 150-channel wireless peripherals (6 sirens, 64 wireless keyfobs)
Port
Buzzer Hub: Built-in
Button Hub: 1 × reset, 1 × power, 1 × AP
Keyfob: 4 (Home, Away, Disarm, and SOS)
Door Detector: 1 × power button
PIR Detector: 1 × power button
Indicator Light Hub: 1 for multiple statuses (alarm, arming, disarming, networking, and malfunction)
Keyfob: 1 × two-color status indicator (green: normal, red: abnormal)
Door Detector: 1 × green alarm indicator
PIR Detector: 1 × green alarm indicator
Storage battery Hub: Built-in lithium battery
Network Mode Hub: Ethernet, Wi-Fi and Cellular network (Supports installation of dual SIM cards. Only one card can be enabled at a time)
Network Port Hub: 1 RJ-45, 10Mbps/100Mbps Ethernet port
Function
Network Protocol Hub: TCP/IP, including PPTP, L2TP, DHCP, UPNP, and NTP
Offline Cache Hub: Max. 50 entries (ANR)
Power Failure Protection for Configured Parameters Hub: Yes
Remote Update All: Cloud update
Video Linkage Hub: Yes
SMS Hub: Yes (up to 5 phone numbers)
Phone Call Hub: Yes (up to 5 phone numbers)
Low Battery Alarm All: Yes
Tamper Hub: Yes
Door Detector: Yes
PIR Detector: Yes
User Management Hub: Share function for App users
Search Hub: Searching push messages, device status, and program version. Detecting signal strength.
Keyfob: Signal strength detection
Door Detector: Signal strength detection
PIR Detector: Signal strength detection
Arm and Disarm Hub: App; keyfob; schedule
Wireless
Carrier Frequency All: 868.0 MHz–868.6 MHz
Transmitter Power (EIRP) All: Limit 25 mW
Communication Distance Hub: Up to 2,000 m (6561.68 ft) in an open space.
Keyfob: Up to 900 m (2952.76 ft) in an open space.
Door Detector: Up to 1,200 m (3937.01 ft) in an open space
PIR Detector: Up to 1,600 m (5249.34 ft) in an open space
Communication Mechanism All: Two-way
Encryption Mode All: AES128
Frequency Hopping All: Yes
Wi-Fi
Standard Wi-Fi IEEE 802.11b/g/n
Wi-Fi Frequency Range 2400-2483.5 MHz
Wi-Fi Power Transmission ≤20 [email protected] MHz
Cellular Network
Cellular Network Standard GSM/WCDMA/LTE
Frequency Range Hub:
4G: FDD-LTE: B1/B3/B7/B8/B20; TDD-LTE: B38/B40/B41;
3G: WCDMA: B1/B5/B8;
2G: GSM: 1,800/900 MHz
Frequency Range (EIRP) Hub:
4G: Power class3: 23 dBm±2 dB
3G: Power class3: 24 dBm+1/-3 dB
2G: Power class0: 30 dBm±3 dB (GSM900)
Power class5: 33 dBm±3 dB (GSM1800)
Peripherals
External Zone Door Detector: 1-channel dry contact input
Temperature
Measuring Range (Temperature) Door Detector: –15 °C to +65 °C (+18.8 °F to +149 °F) (indoor)
PIR Detector: –15 °C to +65 °C (+18.8 °F to +149 °F) (indoor)
Measuring Precision (Temperature) Door Detector: ± 1 °C (± 33.8 °F)
PIR Detector: ±1°C (±33.8°F)
Resolution (Temperature) Door Detector: 1 °C (33.8 °F)
PIR Detector: 1 °C (33.8 °F)
Specification
Sensor Door Detector: Reed switch
PIR Detector: Dual elements low-noise PIR sensor
Test Mode Door Detector: Yes
PIR Detector: Yes
Scenario Door Detector: Non-metal doors
Movement Distance Door Detector: < 40 mm (1.57")
Detection Mode PIR Detector: PIR
Detection Range PIR Detector: 12 m (39.37 ft) (90°) with installation height of 2.2 m (7.21 ft)
Detection Speed PIR Detector: 0.3 m/s–3 m/s (0.98 ft/s–9.84 ft/s)
Pet Immunity Level PIR Detector: ≤ 18 kg (39.68 lb)
White Light Resistance Level PIR Detector: 6500 lx
Two-way Digital Temperature Compensation PIR Detector: Yes, no attenuation of detection distance in high temperature
Sensitivity PIR Detector: 3 levels adjustable
General
Power Supply Hub: 12 V DC, 1.5 A (Europe, UK and USA power adapters are optional)
Keyfob: CR2032 battery
Door Detector: CR123A battery
PIR Detector: CR123A battery
Battery Life Hub: Storage battery standby for 12 Hours
Keyfob: 5 years
Door Detector: 4 years
PIR Detector: 5 years
Power Consumption Keyfob: 100 mW
Door Detector: Max. 125 mW
PIR Detector: Max. 120 mW
Operating Temperature Hub: –10 °C to +50 °C (+14 °F to +122 °F) (indoor)
Keyfob: –10 °C to +55 °C (+14 °F to +131 °F) (indoor)
Door Detector: –10 °C to +55 °C (+14 °F to +131 °F) (indoor)
PIR Detector: –10 °C to +55 °C (+14 °F to +131 °F) (indoor)
Operating Humidity All: 10%–90% (RH)
Product Dimensions Hub: 163.0 mm × 163.0 mm × 32.0 mm (6.42"" × 6.42"" × 1.26"") (L × W × H)
Keyfob: 60.0 mm × 39.5 mm × 15.0 mm (2.36" × 1.56" × 0.59") (L × W × H)
Door Detector: 100.2 mm × 20.8 mm × 20.3 mm (3.94" × 0.82" × 0.80") (L × W × H)
PIR Detector: 104.0 mm × 60.0 mm × 50.0 mm (4.09" × 2.36" × 1.97") (L × W × H)
Packaging Dimensions Hub: 219.0 mm × 187.0 mm × 91.0 mm (8.62"" × 7.36"" × 3.58"") (L × W × H)
Keyfob: 135.0 mm × 98.5 mm × 27.8 mm (5.31"" × 3.88"" × 1.09"") (L × W × H)
Door Detector: 135.0 mm × 98.5 mm × 27.8 mm (5.31"" × 3.88"" × 1.09"") (L × W × H)
PIR Detector: 135.0 mm × 98.5 mm × 56.8 mm (5.31"" × 3.88"" × 2.24"") (L × W × H)
Installation Hub: Wall mount; Desktop
Door Detector: Bracket mount
PIR Detector: Wall mount
Net Weight Hub: 0.38 Kg (0.84 lb)
Keyfob: 20 g (0.04 lb)
Door Detector: 70 g (0.15 lb)
PIR Detector: 100 g (0.22 lb)
Gross Weight Hub: 0.8 Kg (1.76 lb)
Keyfob: 65 g (0.14 lb)
Door Detector: 115 g (0.25 lb)
PIR Detector: 170 g (0.37 lb)
Casing Material All: PC + ABS
Certifications All: CE
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
