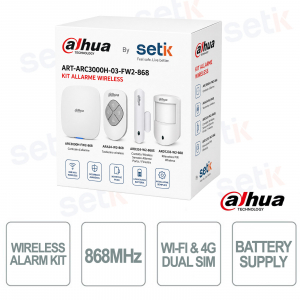

ART-ARC3000H-03-FW2-868 - Il kit allarme wireless è una soluzione professionale per la protezione di abitazioni e attività commerciali, composta da centrale HUB 4G, sensore PIR wireless, contatto magnetico porta/finestra e telecomando wireless. Grazie alla connettività Ethernet, Wi-Fi e 4G LTE con Dual SIM, offre comunicazioni affidabili e gestione remota tramite App con notifiche in tempo reale, SMS e chiamate. Il sensore PIR garantisce una copertura fino a 12 metri con immunità agli animali domestici fino a 18 kg, mentre il contatto magnetico rileva aperture e tentativi di manomissione. La tecnologia AES128, la comunicazione bidirezionale, il frequency hopping e il supporto fino a 150 dispositivi wireless assicurano un sistema di sicurezza avanzato, stabile e facilmente espandibile. Dahua
SCARICA IL LISTINO ALLARMI DAHUA PER SCOPRIRE TUTTI GLI ACCESSORI! DEPLIANT
CARTELLO ADESIVO DAHUA IN REGALO!
Riferimento: ART-ARC3000H-03-FW2-868
Marca: Dahua
EAN: 6923172504999
Disponibilità: 1
ART-ARC3000H-03-FW2-868 | KIT ALLARME DAHUA - WIFI & 4G DUAL-SIM - FREQUENZA 868MHz

SCARICA IL LISTINO ALLARMI DAHUA PER SCOPRIRE TUTTI GLI ACCESSORI! DEPLIANT
CARTELLO ADESIVO DAHUA IN REGALO!
Il kit allarme wireless Dahua ART-ARC3000H-03-FW2-868 rappresenta una soluzione completa e professionale per la sicurezza di abitazioni, uffici e negozi, integrando centrale HUB 4G LTE, sensore PIR wireless, contatto magnetico porta/finestra e telecomando wireless. Grazie alla connettività Ethernet, Wi-Fi e rete cellulare 4G con Dual SIM, garantisce comunicazioni affidabili e gestione remota tramite App con notifiche push, SMS e chiamate. Il rilevatore PIR offre copertura fino a 12 metri, immunità agli animali domestici fino a 18 kg e compensazione digitale della temperatura, mentre il sistema utilizza crittografia AES128, comunicazione bidirezionale e frequency hopping per una protezione avanzata e stabile.
Specifiche principali:
- Kit completo: HUB 4G, PIR, contatto magnetico, telecomando
- Connettività: Ethernet, Wi-Fi, 4G LTE Dual SIM
- Copertura PIR: fino a 12 m
- Immunità animali: fino a 18 kg
- Sicurezza: AES128 e comunicazione bidirezionale
- Gestione remota: App, SMS e chiamate
- Espandibilità: fino a 150 dispositivi wireless
- Protezione: allarme SOS e antisabotaggio
Ulteriori dettagli
- Centrale d'allarme
- Comunicazione wireless a 868 MHz (bidirezionale): con tecnologia FHSS per maggiore sicurezza e stabilità
- Compatibile con Wi-Fi 2.4GHz: per una connessione facile e senza cablaggi
- Supporto per comunicazione mobile e cloud: accesso da remoto e gestione tramite app mobile
- Design compatto ed elegante: facile da installare e adatta a qualsiasi ambiente
- Ampia compatibilità con sensori e accessori Dahua: per una protezione personalizzabile e modulare
- Tastierino wireless
- Protocollo di comunicazione wireless bidirezionale: frequenza 868MHz
- Indicatore di stato di funzionamento (verde per normaple, rosso per anomalo)
- Copertura fino a 900 metri in spazio aperto
- 4 pulsanti (Home, Away, Disarm, SOS)
- Allarme emergenza SOS (tramite pulsante dedicato)
- Contatto Wireless Sensore Allarme Porta / Finestra 868MHz
- Rilevamento apertura, urti e inclinazioni fino a 25°
- Comunicazione bidirezionale con crittografia AES128
- Portata wireless fino a 1.200 m in campo aperto
- Allarme surriscaldamento e rilevamento temperatura
- Batteria a lunga durata fino a 3 anni
- Configurazione semplice tramite App
- Rilevatore PIR Wireless
- Frequenza bidirezionale di comunicazione senza fili 868Mhz
- Distanza fino a 1.600m in campo aperto senza ostacoli
- Pet Immune (immune alla rilevazione degli animali domestici)
- Frequency Hopping
- Alimentazione con batteria CR123A
- Indicatore luminoso di allarme (verde)
Scheda tecnica
| Model | ART-ARC3000H-03-FW2-868 |
| Input and Output | |
| Wireless Protection Zone | Hub: 150-channel wireless peripherals (6 sirens, 64 wireless keyfobs) |
| Port | |
| Buzzer | Hub: Built-in |
| Button | Hub: 1 × reset, 1 × power, 1 × AP Keyfob: 4 (Home, Away, Disarm, and SOS) Door Detector: 1 × power button PIR Detector: 1 × power button |
| Indicator Light | Hub: 1 for multiple statuses (alarm, arming, disarming, networking, and malfunction) Keyfob: 1 × two-color status indicator (green: normal, red: abnormal) Door Detector: 1 × green alarm indicator PIR Detector: 1 × green alarm indicator |
| Storage battery | Hub: Built-in lithium battery |
| Network Mode | Hub: Ethernet, Wi-Fi and Cellular network (Supports installation of dual SIM cards. Only one card can be enabled at a time) |
| Network Port | Hub: 1 RJ-45, 10 Mbps/100 Mbps Ethernet port |
| Function | |
| Network Protocol | Hub: TCP/IP, including PPTP, L2TP, DHCP, UPNP, and NTP |
| Offline Cache | Hub: Max. 50 entries (ANR) |
| Power Failure Protection for Configured Parameters | Hub: Yes |
| Remote Update | All: Cloud update |
| Video Linkage | Hub: Yes |
| SMS | Hub: Yes (up to 5 phone numbers) |
| Phone Call | Hub: Yes (up to 5 phone numbers) |
| Low Battery Alarm | All: Yes |
| Tamper | Hub: Yes Door Detector: Yes PIR Detector: Yes |
| User Management | Hub: Share function for App users |
| Search | Hub: Searching push messages, device status, and program version. Detecting signal strength. Keyfob: Signal strength detection Door Detector: Signal strength detection PIR Detector: Signal strength detection |
| Arm and Disarm | Hub: App; keyfob; schedule |
| Wireless | |
| Carrier Frequency | All: 868.0 MHz–868.6 MHz |
| Transmitter Power (EIRP) | All: Limit 25 mW |
| Communication Distance | Hub: Up to 2,000 m (6561.68 ft) in an open space. Keyfob: Up to 900 m (2952.76 ft) in an open space. Door Detector: Up to 1,200 m (3937.01 ft) in an open space PIR Detector: Up to 1,600 m (5249.34 ft) in an open space |
| Communication Mechanism | All: Two-way |
| Encryption Mode | All: AES128 |
| Frequency Hopping | All: Yes |
| Wi-Fi | |
| Wi-Fi Standard | IEEE 802.11b/g/n |
| Wi-Fi Frequency Range | 2400-2483.5 MHz |
| Wi-Fi Power Transmission | ≤20 [email protected] MHz |
| Cellular Network | |
| Cellular Network Standard | GSM/WCDMA/LTE |
| Frequency Range | Hub: 4G: FDD-LTE: B1/B3/B7/B8/B20; TDD-LTE: B38/B40/B41; 3G: WCDMA: B1/B5/B8; 2G: GSM: 1,800/900 MHz |
| Frequency Range (EIRP) | Hub: 4G: Power class3: 23 dBm±2 dB 3G: Power class3: 24 dBm+1/-3 dB 2G: Power class0: 30 dBm±3 dB (GSM900) Power class5: 33 dBm±3 dB (GSM1800) |
| Peripherals | |
| External Zone | Door Detector: 1-channel dry contact input |
| Temperature | |
| Measuring Range (Temperature) | Door Detector: –15 °C to +65 °C (+18.8 °F to +149 °F) (indoor) PIR Detector: –15 °C to +65 °C (+18.8 °F to +149 °F) (indoor) |
| Measuring Precision (Temperature) | Door Detector: ± 1 °C (± 33.8 °F) PIR Detector: ± 1 °C (± 33.8 °F) |
| Resolution (Temperature) | Door Detector: 1 °C (33.8 °F) PIR Detector: 1 °C (33.8 °F) |
| Specification | |
| Sensor | Door Detector: Reed switch PIR Detector: Dual elements low-noise PIR sensor |
| Test Mode | Door Detector: Yes PIR Detector: Yes |
| Scenario | Door Detector: Non-metal doors |
| Movement Distance | Door Detector: < 40 mm (1.57") |
| Detection Mode | PIR Detector: PIR |
| Detection Range | PIR Detector: 12 m (39.37 ft) (90°) with installtion height of 2.2 m (7.21 ft) |
| Detection Speed | PIR Detector: 0.3 m/s–3 m/s (0.98 ft/s–9.84 ft/s) |
| Pet Immunity Level | PIR Detector: ≤ 18 kg (39.68 lb) |
| White Light Resistance Level | PIR Detector: 6500 lx |
| Two-way Digital Temperature Compensation | PIR Detector: Yes, no attenuation of detection distance in high temperature |
| Sensitivity | PIR Detector: 3 levels adjustable |
| General | |
| Power Supply | Hub: 12 V DC, 1.5 A (Europe, UK and USA power adapters are optional) Keyfob: CR2032 battery Door Detector: CR123A battery PIR Detector: CR123A battery |
| Battery Life | Hub: Storage battery standby for 12 Hours Keyfob: 5 years Door Detector: 4 years PIR Detector: 5 years |
| Power Consumption | Keyfob: 100 mW Door Detector: Max. 125 mW PIR Detector: Max. 120 mW |
| Operating Temperature | Hub: –10 °C to +50 °C (+14 °F to +122 °F) (indoor) Keyfob: –10 °C to +55 °C (+14 °F to +131 °F) (indoor) Door Detector: –10 °C to +55 °C (+14 °F to +131 °F) (indoor) PIR Detector: –10 °C to +55 °C (+14 °F to +131 °F) (indoor) |
| Operating Humidity | All: 10%–90% (RH) |
| Product Dimensions | Hub: 163.0 mm × 163.0 mm × 32.0 mm (6.42"" × 6.42"" × 1.26"") (L × W × H) Keyfob: 60.0 mm × 39.5 mm × 15.0 mm (2.36" × 1.56" × 0.59") (L × W × H) Door Detector: 100.2 mm × 20.8 mm × 20.3 mm (3.94" × 0.82" × 0.80") (L × W × H) PIR Detector: 104.0 mm × 60.0 mm × 50.0 mm (4.09" × 2.36" × 1.97") (L × W × H) |
| Packaging Dimensions | Hub: 219.0 mm × 187.0 mm × 91.0 mm (8.62"" × 7.36"" × 3.58"") (L × W × H) Keyfob: 135.0 mm × 98.5 mm × 27.8 mm (5.31"" × 3.88"" × 1.09"") (L × W × H) Door Detector: 135.0 mm × 98.5 mm × 27.8 mm (5.31"" × 3.88"" × 1.09"") (L × W × H) PIR Detector: 135.0 mm × 98.5 mm × 56.8 mm (5.31"" × 3.88"" × 2.24"") (L × W × H) |
| Installation | Hub: Wall mount; Desktop Door Detector: Bracket mount PIR Detector: Wall mount |
| Net Weight | Hub: 0.38 Kg (0.84 lb) Keyfob: 20 g (0.04 lb) Door Detector: 70 g (0.15 lb) PIR Detector: 100 g (0.22 lb) |
| Gross Weight | Hub: 0.8 Kg (1.76 lb) Keyfob: 65 g (0.14 lb) Door Detector: 115 g (0.25 lb) PIR Detector: 170 g (0.37 lb) |
| Casing Material | All: PC + ABS |
| Certifications | All: CE |
