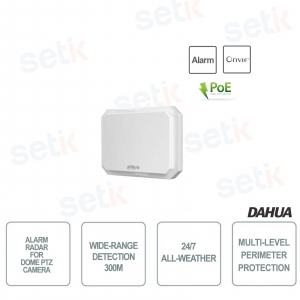

Dahua radar alarm for dome PTZ cameras 24/7 - up to 300m

Dahua radar alarm for dome PTZ cameras 24/7 - up to 300m

-57%

Dahua PFR4K-D300 24Ghz ONVIF PoE Radar Alarm compatible with Dome PTZ Camera. Wide range detection (300m people / 450m vehicles). 24/7 operation. High precision . Target filtering , PTZ radar linkage, front-end PTZ control. Centralized management and Smart Tracking . Multi-level Protection : Different alarm priorities, external alarm linkage, people/vehicle filtering and vehicle detection with low and medium speed. 1 Alarm input / 5 Alarm outputs. 1 256GB microSD slot. 1 RJ 45 (10Base-T/100Base-TX). IP67/IK10 protection. CE RED certification. Dahua Technology

referencia : PFR4K-D300

brand : Dahua

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

La empresa asiática, fundada en 2001, debe su reputación a la excelente calidad de sus productos en términos de rendimiento y capacidad. La gama de productos de Dahua abarca desde los sistemas clásicos de CCTV hasta los sistemas de seguridad más complejos y articulados: no sólo la videovigilancia, sino también el control de acceso, los sistemas de videoportería, los productos de detección térmica y mucho más. La fiabilidad, la tecnología de punta y los precios competitivos que ofrece Dahua son sólo algunas de las razones por las que Setik siempre ha elegido distribuir la marca. Dahua es desde hace años un sólido punto de referencia en el mercado internacional de los circuitos cerrados de televisión, gracias a las enormes inversiones que cada año se dedican a la investigación y el desarrollo. Las cifras hablan por sí mismas: desde 2016 hasta hoy Dahua ha registrado más de 800 patentes con su propia marca. Actualmente Dahua puede presumir de estar entre los 10 primeros líderes mundiales en el mundo de la seguridad. Este año Dahua fue premiado con el 2º puesto en el ranking "2019 TOP SECURITY 50".

Los productos de la marca Dahua vendidos por Setik SRL pueden ser entregados como productos OEM, es decir, productos que a todos los efectos son productos originales de Dahua, pero que tienen una apariencia estética diferente reservada para el mercado en línea (generalmente en términos de logotipo y embalaje). Esto no afecta en modo alguno a la garantía y a las características técnicas del producto, que es siempre genuino de Dahua, ni a las actualizaciones y la funcionalidad.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. es uno de los principales proveedores mundiales de soluciones de videovigilancia, con más de 13.000 empleados y 35 filiales activas en todo el mundo.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-06-24 15:40:21 [link_rewrite] => dahua [meta_title] => Los mejores productos Dahua: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Productos Dahua para la videovigilancia digital IP, HYBRIDA, HD-SDI, HDCVI, como cámaras, grabadoras, control de acceso, accesorios y videointercomunicadores wifi. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR


DAHUA: DEBAJO DEL COSTE×


 DESCUENTOS INCREÍBLES
en una selección de productos DAHUA
 Descubre la promoción ahora >>

LIQUIDACION TOTAL ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

24 GHz RADAR ALARM - ONVIF® POE - UP TO 300M - DOME PTZ CAMERA COMPATIBLE - 24/7 - MULTI-LEVEL PROTECTION - DAHUA

Dahua Technology
24 Ghz ONVIF® PoE Radar Alarm - Dahua
Wide range detection (300m people / 450m vehicles) - Compatible with PTZ Camera - 24/7 operation - High accuracy - Target filtering - PTZ radar connection - Front-end PTZ control - Centralized management - Smart Tracking - 1 Alarm input / 5 Alarm outputs - 1 256 GB microSD slot - 1 RJ 45 (10Base-T/100Base-TX) - IP67 / IK10 protection
Multi-level Perimeter Protection: Different alarm priorities, external alarm linkage, people/vehicle filtering and low and medium speed vehicle detection - CE RED certification

Product details

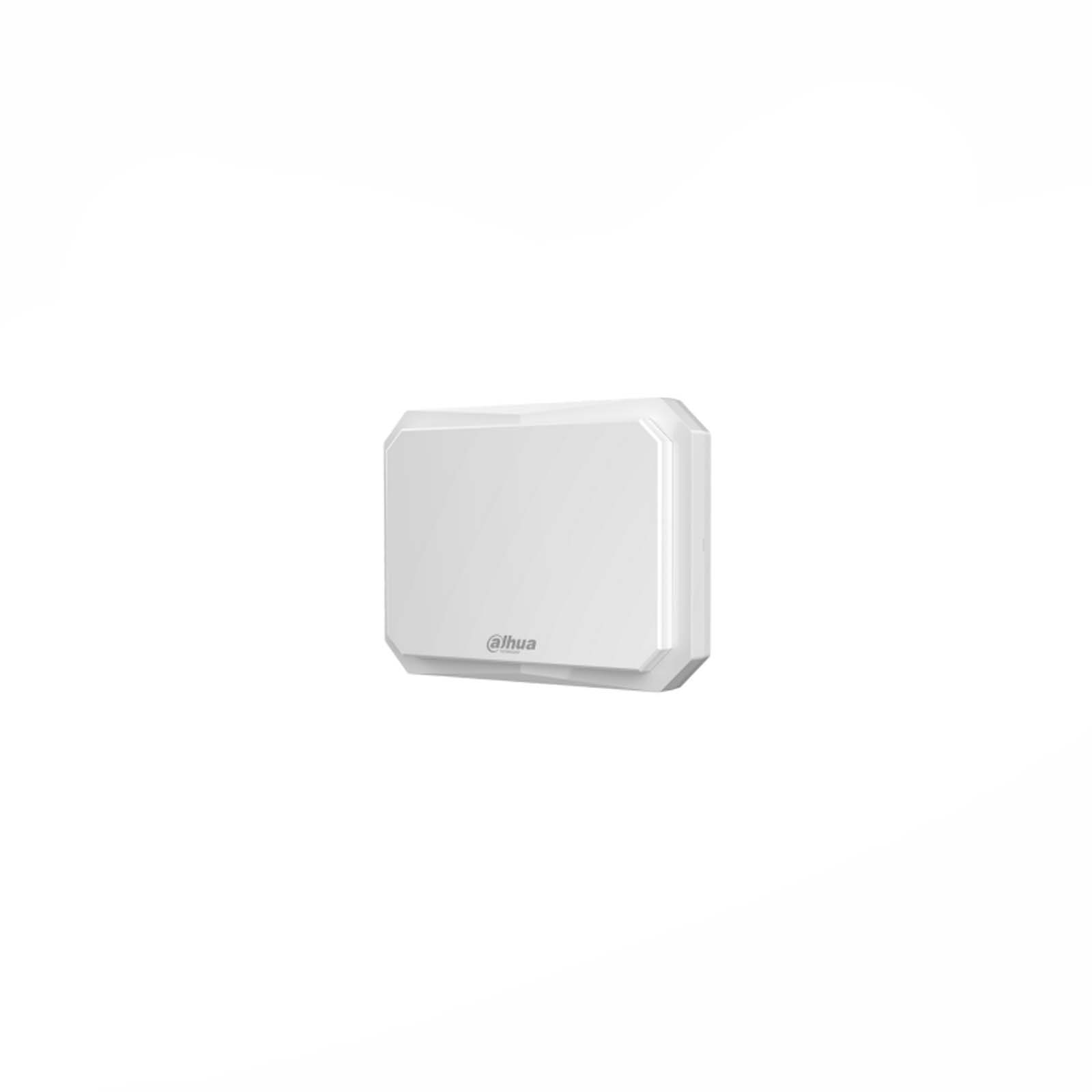

allarme radar dahua per dome ptz camera 24/7 - fino a 300m
  • 24 Ghz ONVIF® PoE Radar Alarm - Dahua
  • Wide range detection (300m people/450m vehicles)
  • Compatible with Dome PTZ Camera
  • 24/7 Operation
  • High precision
  • Target Filtering
  • PTZ radar connection
  • Front-end PTZ control
  • Centralized management
  • Smart Tracking
  • 1 input/5 outputs Alarm
  • 1 x 256GB microSD slot
  • 1 RJ 45 (10Base-T/100Base-TX)
  • IP67/IK10 protection
  • Multi-level Perimeter Protection: Different alarm priorities, external alarm linkage, people/vehicle filtering and low and medium speed vehicle detection
  • CE RED Certification
  • 24 month warranty

Technical data sheet

Model PFR4K-D300
Performance
Max. Number of Targets 32
Detection Distance Human: 300.0 m (984.25 ft)
Vehicle: 450.0 m (1476.38 ft)
Detection Angle Horizontal: 90°
Vertical: 13°
Max. Detection Speed 80 km/h, continuous trajectory
Min. Detection Speed 1.8 km/h, continuous trajectory
Distance Accuracy ± 1.5 m (± 4.92 ft)
Angle Accuracy ± 1°
Max. Number of Areas 10
Modulation Type FMCW
Scan Frequency 8 Hz
Operating Frequency 24 GHz
Detection Target Type Human and vehicle
Network
Ethernet RJ-45 (10Base-T/100Base-TX)
Protocol IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, and 802.1x
Interoperability ONVIF® Profile S&G, CGI
User/Host 19
Storage NAS; FTP; micro SD card (256G)
Browser IE: Versions later than IE7
Google: Versions earlier than Chrome45
Firefox: Versions earlier than Firefox46
Matched Platform DSS
Port
Alarm Input 1 channel (support 5V DC potential and 5mA current)
Alarm Output 5 channels (wet contact; support max 12V DC potential and max 300mA current)
Alarm Linkage Snapshots, radar-PTZ linkage, SD card record, alarm triggering output, electronic map displaying, and email sending
Alarm Event Radar alarm, no SD card, insufficient SD card storage, SD card error, network disconnection, IP conflict, full disk, and illegal access
SD card Yes
Indicator Light Network connection: Yellow
Running status: Red/Green
Power: Green
Power
Power Supply Basic: 20W
Power Consumption Max.: 24W
Environment
Operating Temperature –40°C to +65°C (–40°F to +149°F)
Operating Humidity ≤95% (RH)
Storage Temperature –40°C to +80°C (–40°F to +176°F)
Storage Humidity ≤95% (RH)
Ingress Protection IP67/IK10
ESD Contact discharge: 6k
Air discharge: 8k
Surge Protection Grade Common mode: ± 6kV
Differential Mode: ± 2kV
Structure
Product Color White
Casing ADC12+PC
Product Dimensions 244.9 mm × 184.9 mm × 61.2 mm (9.64" × 7.28" × 2.41")
Packaging Dimensions 328.0 mm × 146.0 mm × 278.0 mm (12.90" × 5.75" × 10.95")
Net Weight 2.0 kg (4.41 lb)
Gross Weight 3.2 kg (7.06 lb)
Installation Method Wall mount, ceiling mount, pole mount
Installation Height 3.0 m to 5.0 m (3.0 m recommended) (9.84 ft to 16.40 ft) (9.84 ft recommended)
Installation Position Separate or integrated installation
Certifications
Certifications CE: EN 50385; EN 55032; EN 55024; EN 55035; EN 50130-4; ETSI EN 301 489-1; ETSI EN 301 489-3; EN 60950-1
CE RED: EN 300440

Further details

ONVIF® Standard Onvif , the absolute standard for IP cameras. Being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a stand-alone camera that can never be used with recording systems.
- Smart Tracking
- Multi-level Protection: Different alarm priorities, external alarm connection, people/vehicle filtering and low and medium speed vehicle detection.
This camera features alarm inputs and outputs This camera has 1 input + 5 alarm outputs
IP67 protection IP67 protection from water and dust

IK 10 is the highest level of protection against direct damage. This allows for use even where there is a risk of vandalism.

1x SD Card Slot (Max 256GB)

12VDC_Power

PoE power supply

Power supply DC 12V (±30%), AC 24V (±30%), PoE (802.3at)
Italian Guarantee Icon This product is covered by a 24 month warranty.

Download

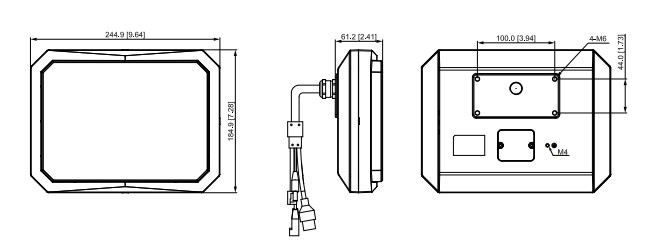

Dahua Radar Alarm Dimensions for 24/7 PTZ Dome Cameras - Up to 300m
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
