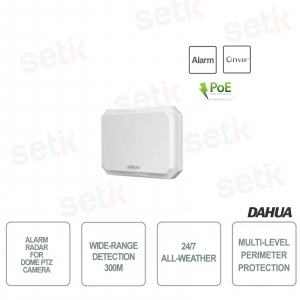

Allarme Radar 24 Ghz ONVIF PoE Dahua PFR4K-D300 compatibile con Dome PTZ Camera. Rilevamento ad ampio raggio (300m persone/450m veicoli). Funzionamento 24/7. Alta precisone. Filtraggio Target, Collegamento radar PTZ, Controllo PTZ front-end. Gestione centralizzata e Smart Tracking. Multi-level Protecion: Diverse priorità di allarme, collegamento di allarmi esterni, filtraggio persone/veicoli e rilevamento veicoli con bassa e media velocità. 1 ingresso/5 uscite Allarme. 1 slot microSD da 256 GB. 1 RJ 45 (10Base-T/100Base-TX). Protezione IP67/ IK10. Certificazione CE RED. Dahua Technology
FUORI TUTTO ×
  FUORI TUTTO!
Approfitta della imperdibile offerte del nostro outlet
  Scopri la promo >>
ALLARME RADAR 24 GHz - ONVIF® POE - FINO A 300M - COMPATIBILE DOME PTZ CAMERA - 24/7 - MULTI-LEVEL PROTECTION - DAHUA
Allarme Radar 24 Ghz ONVIF® PoE - DahuaDettagli Prodotto:
-
Allarme Radar 24 Ghz ONVIF® PoE - Dahua
 -
Rilevamento ad ampio raggio (300m persone/450m veicoli)
 -
Compatibile con Dome PTZ Camera
 -
Funzionamento 24/7
 -
Alta precisone
 -
Filtraggio Target
 -
Collegamento radar PTZ
 -
Controllo PTZ front-end
 -
Gestione centralizzata
 -
Smart Tracking
 -
1 ingresso/5 uscite Allarme
 -
1 slot microSD da 256 GB
 -
1 RJ 45 (10Base-T/100Base-TX)
 -
Protezione IP67/ IK10
 -
Multi-level Perimeter Protection: Diverse priorità di allarme, collegamento di allarmi esterni, filtraggio persone/veicoli e rilevamento veicoli con bassa e media velocità
 -
Certificazione CE RED
 - Garanzia 24 mesi

Scheda tecnica
| Model | PFR4K-D300 |
| Performance | |
| Max. Number of Targets | 32 |
| Detection Distance |
 Human: 300.0 m (984.25 ft) Vehicle: 450.0 m (1476.38 ft)  |
| Detection Angle |
 Horizontal: 90° Vertical: 13°  |
| Max. Detection Speed | 80 km/h, continuous trajectory |
| Min. Detection Speed | 1.8 km/h, continuous trajectory |
| Distance Accuracy | ± 1.5 m (± 4.92 ft) |
| Angle Accuracy | ± 1° |
| Max. Number of Areas | 10 |
| Modulation Type | FMCW |
| Scan Frequency | 8 Hz |
| Operating Frequency | 24 GHz |
| Detection Target Type | Human and vehicle |
| Function | |
| Radar+PTZ Smart Tracking | Supported on web manager |
| Track Mode | Tour, distance priority, and time priority |
| Region Setting | Alarm area, pre-warning area, and shield area |
| Target Filtering | Human and vehicle filtering |
| Record Mode | Manual record, scheduled record, and alarm record Record priority: Manual>Alarm>Scheduled |
| Restore to Factory Default | Restore to default settings with one click |
| Security Mode | Authorized username and password, MAC address binding, HTTPS encryption, IEEE 802.1x, and network access control |
| Positioning | GPS, Glonass |
| Map Encoding | Yes |
| Network | |
| Ethernet | RJ-45 (10Base-T/100Base-TX) |
| Protocol | IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, and 802.1x |
| Interoperability |
 ONVIF® Profile S&G, CGI  |
| User/Host | 19 |
| Storage | NAS; FTP; micro SD card (256 G) |
| Browser |
 IE: Versions later than IE7 Google: Versions earlier than Chrome45 Firefox: Versions earlier than Firefox46  |
| Matched Platform | DSS |
| Port | |
| Alarm Input | 1 channel (support 5V DC potential and 5mA current) |
| Alarm Output |
 5 channels (wet contact; support max 12V DC potential and max 300mA current)  |
| Alarm Linkage | Snapshots, radar-PTZ linkage, SD card record, alarm triggering output, electronic map displaying, and email sending |
| Alarm Event | Radar alarm, no SD card, insufficient SD card storage, SD card error, network disconnection, IP conflict, full disk, and illegal access |
| SD Card | Yes |
| Indicator Light |
 Network connection:Yellow Running status: Red/Green Power: Green  |
| Power | |
| Power Supply | DC 12V (±30%), AC 24V (±30%), PoE (802.3at) |
| Power Consumption |
 Basic: 20W Max.: 24W  |
| Environment | |
| Operating Temperature | –40°C to +65°C (–40°F to +149°F) |
| Operating Humidity | ≤95% (RH) |
| Storage Temperature | –40°C to +80°C (–40°F to +176°F) |
| Storage Humidity | ≤95% (RH) |
| Ingress Protection | IP67/IK10 |
| ESD |
 Contact discharge: 6k Air discharge: 8k  |
| Surge Protection Grade |
 Common mode: ± 6kV Differential Mode: ± 2kV  |
| Structure | |
| Product Color | White |
| Casing | ADC12+PC |
| Product Dimensions | 244.9 mm × 184.9 mm × 61.2 mm (9.64" × 7.28" × 2.41") |
| Packaging Dimensions | 328.0 mm × 146.0 mm × 278.0 mm (12.90" × 5.75" × 10.95") |
| Net Weight | 2.0 kg (4.41 lb) |
| Gross Weight | 3.2 kg (7.06 lb) |
| Installation Method | Wall mount, ceiling mount, pole mount |
| Installation Height | 3.0 m to 5.0 m (3.0 m recommended) (9.84 ft to 16.40 ft) (9.84 ft recommended) |
| Installation Position | Separate or integrated installation |
| Certifications | |
| Certifications |
 CE: EN 50385; EN 55032; EN 55024; EN 55035; EN 50130-4; ETSI EN 301 489-1; ETSI EN 301 489-3; EN 60950-1 CE RED: EN 300440  |
Ulteriori dettagli
![]()  |
Onvif, lo standard in assoluto per le telecamere IP. Essere Onvif garantisce compatibilità con qualsiasi sistema di registrazione moderno. NON essere Onvif, significa avere una telecamera fine a se stessa che non potrà mai essere utilizzata insieme a sistemi di registrazione. |
 ![]()  |
 - Smart Tracking - Multi-level Protecion: Diverse priorità di allarme, collegamento di allarmi esterni, filtraggio persone/veicoli e rilevamento veicoli con bassa e media velocità.  |
![]()  |
Questa telecamera presenta 1 ingressi + 5 uscite allarme |
![]()  |
Protezione IP67 da acqua e polvere |
![]()  |
 IK 10 è il massimo livello di protezione da danno diretto. Questo permette l'utilizzo anche se sono presenti rischi di vandalismo

  |
![]()  |
1x Slot SD Card (Max 256GB) |
|


  |
Alimentazione DC 12V (±30%), AC 24V (±30%), PoE (802.3at) |
| Questo prodotto è coperto da Garanzia di 24 mesi. |
