Dahua Complete Alarm Kit - 868MHz Frequency FW2

Dahua Complete Alarm Kit - 868MHz Frequency FW2

BEST PRICE -35%

ART-ARC3000H-03-FW2-868 Dahua Alarm Kit: 1x Alarm Hub ARC3000H-FW2-868. 1x Radio Control ARA24-W2-868, 1x Magnetic Door Contact ARD323-W2-868, 1x PIR Sensor ARD1233-W2-868, Frequency 868MHz Dahua Security


FREE DAHUA CARBON MONOXIDE! CODE: DAHUA-GIFT



FREE DAHUA STICKER SIGN!


referencia : ART-ARC3000H-03-FW2-868

brand : Dahua

EAN: 6923172504999

Disponibilità: 6

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

La empresa asiática, fundada en 2001, debe su reputación a la excelente calidad de sus productos en términos de rendimiento y capacidad. La gama de productos de Dahua abarca desde los sistemas clásicos de CCTV hasta los sistemas de seguridad más complejos y articulados: no sólo la videovigilancia, sino también el control de acceso, los sistemas de videoportería, los productos de detección térmica y mucho más. La fiabilidad, la tecnología de punta y los precios competitivos que ofrece Dahua son sólo algunas de las razones por las que Setik siempre ha elegido distribuir la marca. Dahua es desde hace años un sólido punto de referencia en el mercado internacional de los circuitos cerrados de televisión, gracias a las enormes inversiones que cada año se dedican a la investigación y el desarrollo. Las cifras hablan por sí mismas: desde 2016 hasta hoy Dahua ha registrado más de 800 patentes con su propia marca. Actualmente Dahua puede presumir de estar entre los 10 primeros líderes mundiales en el mundo de la seguridad. Este año Dahua fue premiado con el 2º puesto en el ranking "2019 TOP SECURITY 50".

Los productos de la marca Dahua vendidos por Setik SRL pueden ser entregados como productos OEM, es decir, productos que a todos los efectos son productos originales de Dahua, pero que tienen una apariencia estética diferente reservada para el mercado en línea (generalmente en términos de logotipo y embalaje). Esto no afecta en modo alguno a la garantía y a las características técnicas del producto, que es siempre genuino de Dahua, ni a las actualizaciones y la funcionalidad.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. es uno de los principales proveedores mundiales de soluciones de videovigilancia, con más de 13.000 empleados y 35 filiales activas en todo el mundo.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-06-24 15:40:21 [link_rewrite] => dahua [meta_title] => Los mejores productos Dahua: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Productos Dahua para la videovigilancia digital IP, HYBRIDA, HD-SDI, HDCVI, como cámaras, grabadoras, control de acceso, accesorios y videointercomunicadores wifi. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR


DAHUA: DEBAJO DEL COSTE×


 DESCUENTOS INCREÍBLES
en una selección de productos DAHUA
 Descubre la promoción ahora >>

LIQUIDACION TOTAL ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

DAHUA ALARM KIT - WIFI - 868MHz FREQUENCY - ART-ARC3000H-03-FW2-868


FREE DAHUA CARBON MONOXIDE! CODE: DAHUA-GIFT


FREE DAHUA ADHESIVE SIGN

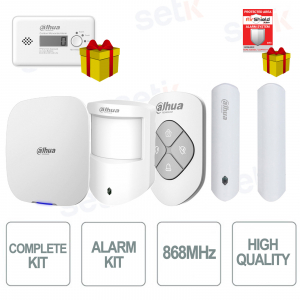

WHAT DOES THIS KIT INCLUDE?
-
1x ARC3000H-FW2-868 Alarm HUB
- 1x Radio control ARA24-W2-868
- 1x Magnetic door contact ARD323-W2-868
- 1x ARD1233-W2-868 PIR sensor
>> 1x Dahua Adhesive Sign | Gift! <<



SUPER GIFT | 1x DAHUA PROTECTED AREA ADHESIVE SIGN

DAHUA Customized Intrusion Detection System Protected Area Adhesive Sign
Durable and with customizable text. Dimensions: A5 21 x 14.8 cm.

Wireless Alarm Hub - 868MHz Dahua ARC3000H-FW2-868

Postazione esterna dahua ARC3000H-FW2-868

1x Alarm Hub - Wireless - 868MHz - 2.4GHz - Up to 150 Devices - ARC3000H-FW2-868

Alarm Control Panel - Dahua
> Wired, wireless, 4G/3G, GPRS mode
> Wi-Fi frequency: 2.4Ghz
> Alarm notifications via call or SMS (up to 5 numbers can be registered)
> Status display (battery level, signal strength, temperature, program version)
> Supports up to 150 devices (including 6 sirens and 64 keyfobs)
> ANR: Automatic Network Replenishment
> Low battery alarm
> LAN RJ45 100M
> Tamper
> Video Linkage on App
> Cloud Update
> Communication distance up to 2,000m in open field without obstacles
> Operating temperature: –10 °C to +50 °C
> Power supply: 12 V DC, 1.5 A
> Net weight: 0.38Kg
> For desk or wall mounting
> Dimensions: 163.0mm × 163.0mm × 32.0mm

1X Dahua 4-Button Remote Control - ARA24-W2-868

ARA24-W2-868

1x 4-Button Remote Control - ARA24-W2-868

> Dahua Wireless Keypad
> Two-way wireless communication protocol: 868MHz frequency
>
Operating status indicator (green for normal, red for abnormal)
> Coverage up to 900 meters in open space
> 4 buttons (Home, Away, Disarm, SOS)
> SOS emergency alarm (via dedicated button)
> Built-in tamper switch
> Power supply: CR2032 batteries
> Average battery life: 5 years
> Net weight: 20g
> Dimensions: 60.0mm × 39.5mm × 15.0mm
> Supported operating temperature: –10 °C to +55 °C
> Housing material: Polycarbonate and ABS

1X Magnetic Door Contact - Wireless - ARD323-W2-868
ARD323-W2-868

1x Dahua 868MHz Wireless Door/Window Alarm Sensor Contact . ARD323-W2-868

> Two-Way Wireless Door/Window Contact - Dahua
> 868MHz two-way wireless communication protocol
Transmission up to 1,200m (in open space, without obstacles)
> Tamper sabotage
> Power button (Power on/off)
> Alarm indicator light (green)
> Encryption: AES128
> Power supply: 1 CR123A battery
> Material: Polycarbonate and ABS
> Appearance: white color
> Reed Switch Sensor
> Temperature measurement: –15 °C to +65 °C
> Operating temperature: –10 °C to +55 °C
> Item weight (net): 70g
> Dimensions: 100.2mm × 20.8mm × 20.3mm
> Relative humidity: 10%–90%

1X
Wireless PIR Detector - Pet Immune - ARD1233-W2-868
ARD1233-W2-868

1x PIR Detector - 12M Range - Two-Way Wireless 868MHz - PET IMMUNE Dahua . ARD1233-W2-868

> Wireless PIR Detector - Dahua
> 868Mhz two-way wireless communication frequency
> Distance up to 1,600m in open field without obstacles
> Detection range 12m
> Pet Immune (immune to pet detection)
> Frequency Hopping
> Powered by CR132A battery
> Average battery life 4 years
> Low battery alarm
> Alarm indicator light (green)
> Power button
> AES128 encryption
> 3 adjustable detection sensitivity levels
> Dimensions: 104.0mm × 60.0mm × 50.0mm
> Net weight of the item: 100g
> Appearance: white color
> Manufacturing material: Polycarbonate and ABS
> Operating temperature: –10 °C to +55 °C

Technical data sheet

Model ART-ARC3000H-03-FW2-868
Wireless Protection Zone Hub: 150-channel wireless peripherals (6 sirens, 64 wireless keyfobs)
Buzzer Hub: Built-in
Button Hub: 1 × reset, 1 × power, 1 × AP Keyfob: 4 (Home, Away, Disarm, and SOS) Door Detector: 1 × power button PIR Detector: 1 × power button
Indicator Light Hub: 1 for multiple statuses (alarm, arming, disarming, networking, and malfunction) Keyfob: 1 × two-color status indicator (green: normal, red: abnormal) Door Detector: 1 × green alarm indicator PIR Detector: 1 × green alarm indicator
Storage battery Hub: Built-in lithium battery
Network Mode Single SIM (GSM:900/1800 MHz, WCDMA:B1/B5/B8, LTE-FDD:B1/B3/B5/B7/B8/B20, LTE-TDD:B38/B40/B41); dual SIM single standby
Network Port Hub: 1 × RJ-45 10M/100M Ethernet port
Network Protocol Hub: TCP/IP, including PPTP, L2TP, DHCP, UPNP, and NTP
Offline Cache Hub: Max. 50 entries (ANR)
Power Failure Protection for Configured Parameters Hub: Yes
Remote Update All: Cloud update
Video Linkage Hub: Yes
SMS Hub: Yes (up to 5 phone numbers)
Phone Call Hub: Yes (up to 5 phone numbers)
Low Battery Alarm All: Yes
Tamper Alarm Hub: Yes Door Detector: Yes PIR Detector: Yes
User Management Hub: Share function for App users
Search Hub: Searching push messages, device status, and program version. Detecting signal strength. Keyfob: Signal strength detection Door Detector: Signal strength detection PIR Detector: Signal strength detection
Arm and Disarm Hub: App; keyfob; schedule
Carrier Frequency All: 868.0 MHz–868.6 MHz
Communication Distance Hub: Up to 2,000 m (6,561.68 ft) in an open space Keyfob: Up to 900 m (2,952.76 ft) in an open space Door Detector: Up to 1,200 m (3,937.01 ft) in an open space PIR Detector: Up to 1,600 m (5,249.34 ft) in an open space
Communication Mechanism All: Two-way
Encryption Mode All: AES128
Frequency Hopping All: Yes
Wi-Fi Hub: 2.4G
External Zone Door Detector: 1-channel dry contact input
Measuring Range (Temperature) Door Detector: –15 °C to +65 °C (+18.8 °F to +149 °F) (indoor) PIR Detector: –15 °C to +65 °C (+18.8 °F to +149 °F) (indoor)
Measuring Precision (Temperature) Door Detector: ± 1 °C (± 33.8 °F) PIR Detector: ± 1 °C (± 33.8 °F)
Resolution (Temperature) Door Detector: 1 °C (33.8 °F) PIR Detector: 1 °C (33.8 °F)
Sensor Door Detector: Reed switch PIR Detector: Dual elements low-noise PIR sensor
Test Mode Door Detector: Yes PIR Detector: Yes
Scenario Door Detector: Non-metal doors
Movement Distance Door Detector: < 40 mm (1.57")
Detection Mode PIR Detector: PIR
Detection Range PIR Detector: 12 m (39.37 ft) (90°) with installation height of 2.2 m (7.21 ft)
Detection Speed PIR Detector: 0.3 m/s–3 m/s (0.98 ft/s–9.84 ft/s)
Pet Immunity Level PIR Detector: ≤ 18 kg (39.68 lb)
White Light Resistance Level PIR Detector: 6500 lx
Two-way Digital Temperature Compensation PIR Detector: Yes, no attenuation of detection distance in high temperature
Sensitivity PIR Detector: 3 levels adjustable
Power Supply Hub: 12 V DC, 1.5 A (Europe, UK and USA power adapters are optional) Keyfob: CR2032 battery Door Detector: CR123A battery PIR Detector: CR123A battery
Battery Life Hub: Storage battery standby for 12 Hours Keyfob: 5 years Door Detector: 5 years PIR Detector: 4 years
Power Consumption Keyfob: Max. 100 mW Door Detector: Max. 125 mW PIR Detector: Max. 120 mW
Operating environment Hub: –10 °C to +50 °C (+14 °F to +122 °F) (indoor) Keyfob: –10 °C to +55 °C (+14 °F to +131 °F) (indoor) Door Detector: –10 °C to +55 °C (+14 °F to +131 °F) (indoor) PIR Detector: –10 °C to +55 °C (+14 °F to +131 °F) (indoor)
Operating Humidity All: 10%–90% (RH)
Product Dimensions Hub: 163.0 mm × 163.0 mm × 32.0 mm (6.42"" × 6.42"" × 1.26"") (L × W × H) Keyfob: 60.0 mm × 39.5 mm × 15.0 mm (2.36"" × 1.56"" × 0.59"") (L × W × H) Door Detector: 100.2 mm × 20.8 mm × 20.3 mm (3.94"" × 0.82"" × 0.80"") (L × W × H) PIR Detector: 104.0 mm × 60.0 mm × 50.0 mm (4.09"" × 2.36"" × 1.97"") (L × W × H)
Packaging Dimensions Hub: 219.0 mm × 187.0 mm × 91.0 mm (8.62"" × 7.36"" × 3.58"") (L × W × H) Keyfob: 135.0 mm × 98.5 mm × 27.8 mm (5.31"" × 3.88"" × 1.09"") (L × W × H) Door Detector: 135.0 mm × 98.5 mm × 27.8 mm (5.31"" × 3.88"" × 1.09"") (L × W × H) PIR Detector: 135.0 mm × 98.5 mm × 56.8 mm (5.31"" × 3.88"" × 2.24"") (L × W × H)
Installation Hub: Wall mount; Desktop Door Detector: Bracket mount PIR Detector: Wall mount
Net Weight Hub: 0.38 Kg (0.84 lb) Keyfob: 20 g (0.04 lb) Door Detector: 70 g (0.15 lb) PIR Detector: 100 g (0.22 lb)
Gross Weight Hub: 0.8 Kg (1.76 lb) Keyfob: 65 g (0.14 lb) Door Detector: 115 g (0.25 lb) PIR Detector: 170 g (0.37 lb)
Casing All: PC + ABS
Certifications All: CE

Further details


Download

Download the English Brochure
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form

Otros productos relacionados con este artículo:
