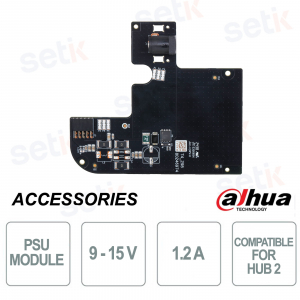

ARA62 | PSU MODULE 9 - 15V


Dahua

The Dahua ARA62 power supply module is designed to connect the Hub2 to a 9–15 VDC power supply, ensuring a stable and reliable solution even in challenging environments. With the ability to replace the original AC module and the option to use an external round-hole connector compatible with a 2-pin terminal block, this PSU offers greater installation flexibility. Its compact size, low weight, and corrosion protection make it ideal for professional installations where continuity, compatibility, and durability are essential.

Main specifications:

- Input power 9–15 VDC with output up to 1.2 A

- Replaces the Hub2 AC module for added versatility

- Compatible with external round hole connector for 2-pin terminal

- Reliable operation in temperatures from –10 °C to +55 °C

- Compact design: 89 × 79 × 12 mm, with anti-corrosion protection

- Ultra-light weight of 20g, ideal for integrated installations

Further details

✅ Input power:
The Dahua ARA62 module supports input power ranging from 9 to 15 VDC , ensuring maximum operational stability even in systems with uneven power supplies. This wide voltage tolerance allows for easy adaptation to various electrical configurations, making the module a versatile and reliable component for properly powering Hub2 even in professional settings.
✅ Maximum output load :
Designed for high performance, the module delivers a maximum output load of 1.2 A , sufficient to safely and consistently power Hub2. This capacity ensures continuity even under heavy use, protecting the system from power surges or shortages and ensuring stable operation of the entire security infrastructure.
✅ Compatibility :
The ARA62 is fully compatible with Hub2 , replacing the original AC module and offering a direct connection via 9–15 VDC power. Furthermore, thanks to the support for an external round-hole connector that can be connected to a 2-pin terminal block, it can also be easily integrated into custom installations, expanding the mounting and adaptation possibilities in various technical scenarios.
ARA62 dimensions

Technical data sheet

ARA62

Technical

Output Voltage

9-15 VDC

Maximum Load Output

1.2 A

General

Power Supply

 9–15 VDC power input

Operating Temperature

-10 °C to +55 °C (+14 °F to +131 °F)

Operating Humidity

10%–90% (RH)

Product Dimensions

89 mm × 79 mm × 12 mm (3.50" × 3.11" × 0.47")

Net Weight

20.00 g (0.04 lb)

Gross Weight

66.35 g (0.15 lb)

Anti-corrosion Level

Basic Protection

Packaging Dimensions

Single Device in inner box: 106 mm × 90 mm × 45 mm (4.17" × 3.54" × 1.77")
Protective case: 339 mm × 291 mm × 261 mm (13.35" × 11.46" × 10.28")
