9–15V PSU Module - ARA62 - for Safe Power Supply of Hub2 - Dahua

9–15V PSU Module - ARA62 - for Safe Power Supply of Hub2 - Dahua

-56% New

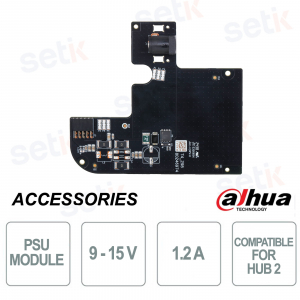

ARA62 - The power module is designed to provide a stable and safe solution for connecting the Hub2 to a 9–15 VDC power supply, ensuring operational continuity even in professional installations. It supports an output of up to 1.2 A , replacing the original AC module and offering the option of using an external round-hole connector compatible with a 2-pin terminal block. The compact design, anti-corrosion protection, and wide operating temperature range ensure maximum reliability in different environments. Easy to install, the module integrates seamlessly into the Dahua security system, improving power versatility and flexibility. Dahua

Technical Data Sheet

Reference: ARA62

Brand: Dahua

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

The Asian Company, born in 2001, is famous because of the excellent quality of its product in terms of performances and potential.

The range of products made by Dahua includes not only classic CCTV systems but also more complex and articulate systems: not only video surveillance, indeed, but also access control, video intercoms, thermal cameras and much more.

The reliability, the cutting-edge technologies and the competitive prices offered by Dahua are only some of the reasons why Setik has always chosen to distribute this brand. Dahua has been for years a reference point in the international CCTV market, due to the huge investments dedicated every year to Research and Development. Numbers are clear: since 2016, Dahua has registered more than 800 patents with its own brand.

The Dahua-branded products sold by Setik Srl could eventually be delivered as OEM: this means that the items are absolutely original and made by Dahua, but characterized by a different aesthetic look reserved for the online market (generally as far as the logo and the package are regarded).

This has no effects on the warranty and on the technical specifications nor even on the possible updates and functionalities, because the products are authentic Dahua’s ones.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. is one of the leading solution providers in video surveillance industry, with more than 13,000 employees and 35 active branches all over the world.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-06-24 15:40:21 [link_rewrite] => dahua [meta_title] => Best Dahua Products: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua, dahuatech, dahua distribution, dahua national supplier [meta_description] => Dahua, TVCC manufacturer, IP, Analogue and SDI,HD-CVI [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

ARA62 | PSU MODULE 9 - 15V


Dahua

The Dahua ARA62 power supply module is designed to connect the Hub2 to a 9–15 VDC power supply, ensuring a stable and reliable solution even in challenging environments. With the ability to replace the original AC module and the option to use an external round-hole connector compatible with a 2-pin terminal block, this PSU offers greater installation flexibility. Its compact size, low weight, and corrosion protection make it ideal for professional installations where continuity, compatibility, and durability are essential.

Main specifications:

- Input power 9–15 VDC with output up to 1.2 A

- Replaces the Hub2 AC module for added versatility

- Compatible with external round hole connector for 2-pin terminal

- Reliable operation in temperatures from –10 °C to +55 °C

- Compact design: 89 × 79 × 12 mm, with anti-corrosion protection

- Ultra-light weight of 20g, ideal for integrated installations

Further details

Input power:
The Dahua ARA62 module supports input power ranging from 9 to 15 VDC , ensuring maximum operational stability even in systems with uneven power supplies. This wide voltage tolerance allows for easy adaptation to various electrical configurations, making the module a versatile and reliable component for properly powering Hub2 even in professional settings.
Maximum output load :
Designed for high performance, the module delivers a maximum output load of 1.2 A , sufficient to safely and consistently power Hub2. This capacity ensures continuity even under heavy use, protecting the system from power surges or shortages and ensuring stable operation of the entire security infrastructure.
Compatibility :
The ARA62 is fully compatible with Hub2 , replacing the original AC module and offering a direct connection via 9–15 VDC power. Furthermore, thanks to the support for an external round-hole connector that can be connected to a 2-pin terminal block, it can also be easily integrated into custom installations, expanding the mounting and adaptation possibilities in various technical scenarios.

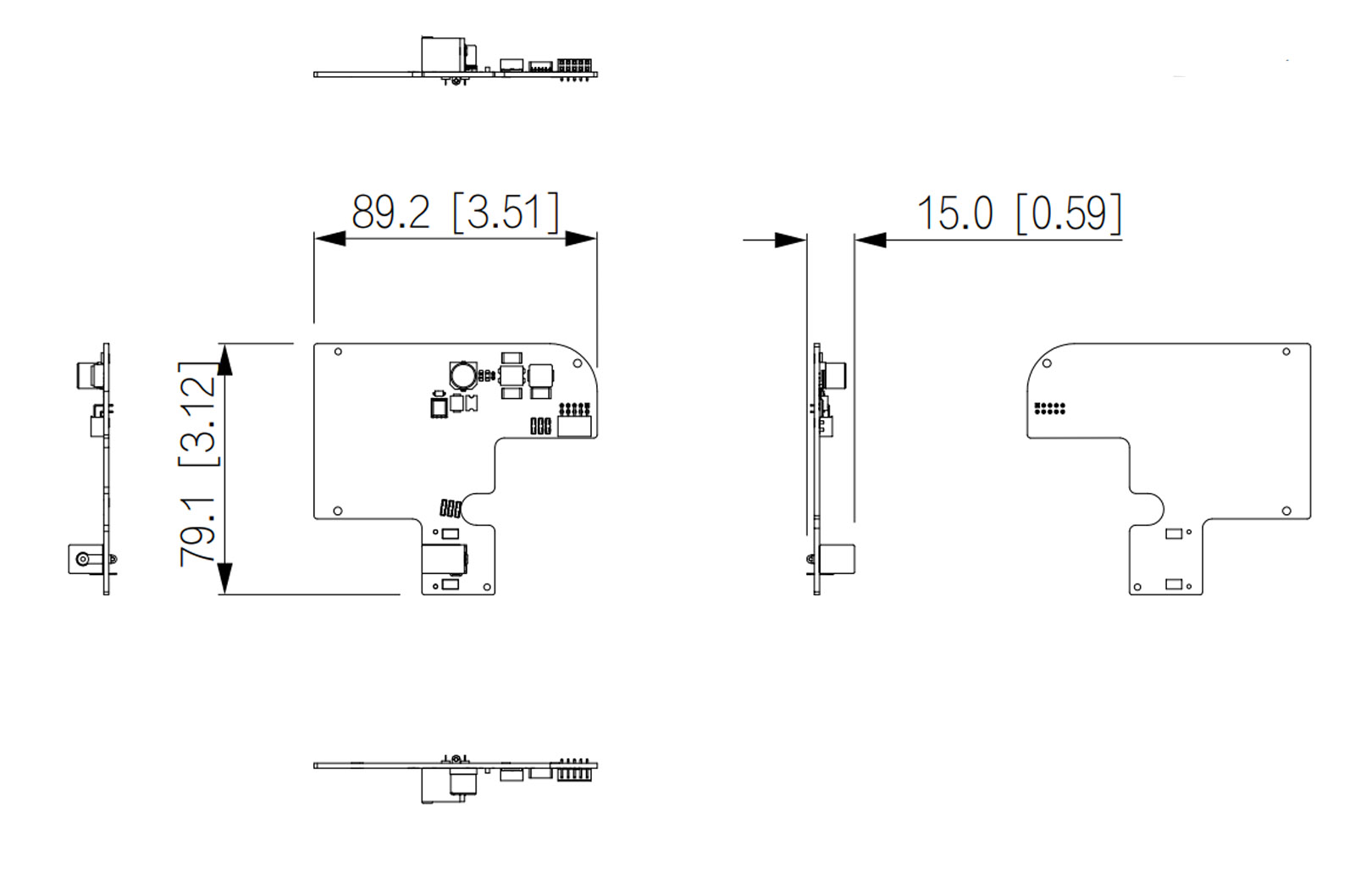

ARA62 dimensions

Technical data sheet

ARA62

Technical

Output Voltage

9-15 VDC

Maximum Load Output

1.2 A

General

Power Supply

9–15 VDC power input

Operating Temperature

-10 °C to +55 °C (+14 °F to +131 °F)

Operating Humidity

10%–90% (RH)

Product Dimensions

89 mm × 79 mm × 12 mm (3.50" × 3.11" × 0.47")

Net Weight

20.00 g (0.04 lb)

Gross Weight

66.35 g (0.15 lb)

Anti-corrosion Level

Basic Protection

Packaging Dimensions

Single Device in inner box: 106 mm × 90 mm × 45 mm (4.17" × 3.54" × 1.77")
Protective case: 339 mm × 291 mm × 261 mm (13.35" × 11.46" × 10.28")
