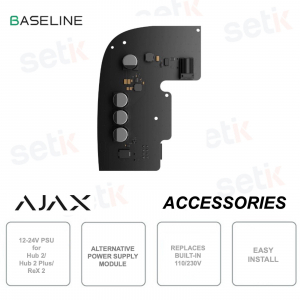

Ajax 12–24V PSU Low Voltage Power Supply for Hub and ReX with Battery Power

Ajax 12–24V PSU Low Voltage Power Supply for Hub and ReX with Battery Power

 

59359.94.NC # 59359 | Ajax 12–24V PSU is a low-voltage power supply designed to ensure the continuity of Ajax security systems in environments with no or unstable power supply, replacing the standard 110/230V power supply. It allows Hub and ReX to operate from batteries or low-voltage networks, making it ideal for warehouses, vehicles, yachts and remote installations. 8–32 V input power , stable 4.8 V output , compatibility with Hub and ReX Jeweler , quick indoor installation , continuous 24/7 operation , and reliability in environments without a power grid make this module a professional and flexible solution for advanced security installations. Ajax

Technical Data Sheet

referencia : 59359.94.NC

brand : Ajax Systems

EAN: 4823114036989

Disponibilità: 5

Manufacturer Object ( [id] => 31 [name] => Ajax Systems [description] =>

Establecido en 2011, Ajax Systemconstruye sistemas inalámbricos de incendio y alarma con la tecnología inalámbrica JEWELLER que le permite monitorear de manera segura todos los dispositivos de red conectados. Ajax System ofrece soluciones para el hogar, la oficina o las actividades comerciales, gestionables a través de la App, siempre actualizadas y compatibles con los sistemas iOS y Android. Los sistemas de alarma de Ajax System son fáciles de instalar, de hecho sólo toma 15 segundos conectar la unidad de control a los sensores. Además, pueden integrarse con las cámaras de vigilancia, tienen un margen de error casi nulo y, en caso de peligro, en menos de 150 milisegundos envían una notificación (sms, push o call).

[short_description] =>

Ajax SystemsAjax Systems


Los sistemas de alarma Ajax system utilizan la última tecnología inalámbrica que hace que todos los productos sean fiables y estén siempre conectados. Además de su excelente rendimiento, los sistemas de alarma Ajax se distinguen por su diseño moderno y elegante.

[id_address] => [date_add] => 2019-01-15 15:51:16 [date_upd] => 2025-06-11 12:47:32 [link_rewrite] => ajax-systems [meta_title] => Sistemas de incendio y alarma de última generación - Ajax System [meta_keywords] => sistemi allarme ajax,sicurezza ajax,allarmi ajax,ajax security system,ajax security,ajax system [meta_description] => I sistemi allarme Ajax system sono dispositivi wireless affidabili e innovativi, non producono falsi allarmi e si installano in 15 secondi. Scoprili su Setik.biz! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

CARTEL GRATUITO DE TVCC×

Con todos >> KITS AJAX

LIQUIDACION TOTAL ×

 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

59359.94.NC | POWER SUPPLY FOR OPERATION OF THE DEVICE FROM A LOW VOLTAGE POWER SOURCE

Ajax

The Ajax 12–24V PSU, 59359.94.NC, is a low-voltage power supply designed to ensure the continued operation of Ajax security systems in environments with no or unstable power supply. It replaces the standard 110/230V power supply and allows hubs and signal extenders to operate from batteries or low-voltage networks, ensuring 24/7 protection in environments such as warehouses, vehicles, construction sites, and boats. Extended compatibility with the Ajax Jeweler range, combined with simple indoor installation and stable electrical performance, make this solution ideal for professional and specialty installations.

Main specifications:

- Compatibility with Hub and ReX Ajax Jeweler

- Input power supply 8–32 V DC

- Stable output voltage 4.8V ±5%

- Output current up to 1.5 A

- Replacement of the integrated 110/230V power supplyA

- Quick internal installation with included adapter

Further details

✅ Compatibility:
The Ajax 12–24V PSU (Type A) is fully compatible with the Hub (4G) Jeweller, Hub 2 (2G/4G) Jeweller, Hub 2 Plus Jeweller control panels and the ReX 2 Jeweller signal extender, enabling the creation of flexible and scalable security systems even in professional, mobile or unpowered environments.
✅ Input power :
The unit supports an input voltage between 8 and 32 V DC , allowing connection to batteries, vehicle systems or low voltage networks, with automatic management of the on and off thresholds to ensure operational stability and protection of the connected devices.
✅ Output power :
The power supply provides a stable output voltage of 4.8 V ±5% with a current of up to 1.5 A , ensuring reliable and continuous power supply to Ajax Hubs and extenders even under conditions of variable load or inconsistent power supply.

Technical data sheet

59359.94.NC
Input
Voltage 8–32 V⎓
Current up to 1 A
Turn-on voltage 8 V⎓ ± 2.5%
Turn-off voltage 7—7.5 V⎓
Depends on the load
Output
Voltage 4.8 V⎓ ± 5%
Current up to 1.5 A
Installation
Installation method into the hub or range extender enclosure by replacing the bundled power supply board
Operating temperature range from -10°C to +40°C
from 14 °F to 104 °F
Operating humidity up to 75%
Connection to the power supply
Connector slot 6.5 × 2 mm
0.26″ × 0.079″
Power jack (female)
Connector 5.5 × 2.1 mm
0.23″ × 0.083″
Power jack (male)
Enclosure
Dimension 98 × 70 × 17 mm
3.9″ × 2.8″ × 0.67″
Weight 26 g
0.917 oz
Complete set 12-24V PSU (type A)
Terminal adapter
Quick start guide
Warranty 24 months
