59359.94.NC | POWER SUPPLY FOR OPERATION OF THE DEVICE FROM A LOW VOLTAGE POWER SOURCE

Ajax

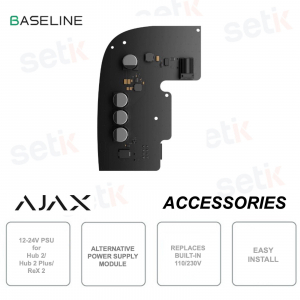

The Ajax 12–24V PSU, 59359.94.NC, is a low-voltage power supply designed to ensure the continued operation of Ajax security systems in environments with no or unstable power supply. It replaces the standard 110/230V power supply and allows hubs and signal extenders to operate from batteries or low-voltage networks, ensuring 24/7 protection in environments such as warehouses, vehicles, construction sites, and boats. Extended compatibility with the Ajax Jeweler range, combined with simple indoor installation and stable electrical performance, make this solution ideal for professional and specialty installations.

Main specifications:

- Compatibility with Hub and ReX Ajax Jeweler

- Input power supply 8–32 V DC

- Stable output voltage 4.8V ±5%

- Output current up to 1.5 A

- Replacement of the integrated 110/230V power supplyA

- Quick internal installation with included adapter

Further details

Compatibility:
The Ajax 12–24V PSU (Type A) is fully compatible with the Hub (4G) Jeweller, Hub 2 (2G/4G) Jeweller, Hub 2 Plus Jeweller control panels and the ReX 2 Jeweller signal extender, enabling the creation of flexible and scalable security systems even in professional, mobile or unpowered environments.
Input power :
The unit supports an input voltage between 8 and 32 V DC , allowing connection to batteries, vehicle systems or low voltage networks, with automatic management of the on and off thresholds to ensure operational stability and protection of the connected devices.
Output power :
The power supply provides a stable output voltage of 4.8 V ±5% with a current of up to 1.5 A , ensuring reliable and continuous power supply to Ajax Hubs and extenders even under conditions of variable load or inconsistent power supply.

Technical data sheet

59359.94.NC
Input
Voltage 8–32 V⎓
Current up to 1 A
Turn-on voltage 8 V⎓ ± 2.5%
Turn-off voltage 7—7.5 V⎓
Depends on the load
Output
Voltage 4.8 V⎓ ± 5%
Current up to 1.5 A
Installation
Installation method into the hub or range extender enclosure by replacing the bundled power supply board
Operating temperature range from -10°C to +40°C
from 14 °F to 104 °F
Operating humidity up to 75%
Connection to the power supply
Connector slot 6.5 × 2 mm
0.26″ × 0.079″
Power jack (female)
Connector 5.5 × 2.1 mm
0.23″ × 0.083″
Power jack (male)
Enclosure
Dimension 98 × 70 × 17 mm
3.9″ × 2.8″ × 0.67″
Weight 26 g
0.917 oz
Complete set 12-24V PSU (type A)
Terminal adapter
Quick start guide
Warranty 24 months
