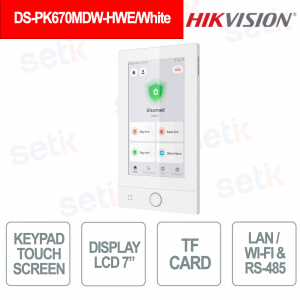

Hikvision 7" White WiFi LAN Touchscreen Keypad with Tag Reader and Advanced Security Control

Hikvision 7" White WiFi LAN Touchscreen Keypad with Tag Reader and Advanced Security Control

 
-35%

DS-PK670MDW-HWE/White - This white touchscreen keypad represents an advanced solution for security systems thanks to its 7-inch high-resolution LCD touch display that ensures intuitive and immediate control, integrating LAN, Wi-Fi, and RS-485 bus connectivity for flexible and scalable installation. Equipped with live video preview from cameras and event recording on TF card , it allows for complete and verifiable system management, while the integrated tag reader and PIN or keyfob authentication ensure high security standards. The presence of 2 wired zones and 1 relay output allows for integration with external devices, making it ideal for modern and connected professional indoor environments. Hikvision

Technical Data Sheet

referencia : DS-PK670MDW-HWE/White

brand : Hikvision

EAN: 6942640552423

Manufacturer Object ( [id] => 42 [name] => Hikvision [description] =>

Desde el año de su nacimiento, su prestigio ha crecido tanto que en 2015 se convertirá en la primera realidad mundial en materia de seguridad.

A partir de 2016 Hikvision expande su mercado convirtiéndose en Proveedor de Soluciones Totales para todo el mercado de la seguridad. Así entra en el mundo de la detección de intrusos y luego se acerca a las nuevas tecnologías e inteligencia al servicio de la humanidad ocupándose de IO, Visión Artificial, Robótica y Sistemas Automovilísticos. De líder en seguridad, Hikvision se convierte con compromiso, pasión y competencia en una empresa de alta tecnología con una visión 4.0, siempre apuntando alto.

Por lo tanto, Setik se siente honrado de ser un distribuidor de Hikvision. Como siempre, ofreceremos productos de última generación y el apoyo técnico y comercial adecuado.

[short_description] =>

Videosorveglianza Hikvision

Hikvision fue fundada en 2001 con el objetivo de crear y desarrollar soluciones profesionales completas de videovigilancia, convirtiéndose rápidamente en un líder en el mundo de la seguridad.

[id_address] => [date_add] => 2020-03-26 09:28:09 [date_upd] => 2024-06-06 12:13:26 [link_rewrite] => hikvision [meta_title] => Seguridad hikvision [meta_keywords] => Seguridad hikvision [meta_description] => Hikvision fue fundada en 2001 y pronto se convirtió en líder del mundo de la videovigilancia. Descubra ahora los productos del catálogo! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

DS-PK670MDW-HWE/White – TOUCHSCREEN KEYBOARD - 7" LCD DISPLAY - LAN, WI-FI AND RS-485 BUS CONNECTIVITY

Hikvision

The Hikvision DS-PK670MDW-HWE/ White touchscreen keypad is the ideal solution for advanced security systems thanks to its 7” high-resolution LCD touch display that offers an intuitive and modern interface, combined with LAN, Wi-Fi and RS-485 bus connectivity for flexible installations. It supports live camera preview and event recording with TF memory , ensuring immediate control and verification, while the integrated tag reader with PIN and keyfob authentication ensures secure access. The presence of 2 wired zones and 1 relay output allows for complete integration with external devices in professional indoor environments.

Main features:

- 7” high resolution LCD touchscreen display (600x1024)

- LAN, Wi-Fi and RS-485 bus connectivity

- Live video preview and event recording on TF card up to 128GB

- Integrated tag reader with M1/DESFire, PIN and 868MHz keyfob support

- 2 wired zones and 1 relay output for system integration

- Wall mounted, white design for professional indoor environments

Further details

✅ Areas:
Advanced management with 2 onboard wired zones that allow the direct connection of sensors and security devices, offering a flexible and integrated configuration for professional systems.
✅ Event log:
Internal memory with up to 200 event records , ideal for reliable and continuous historical monitoring and verification of alarm system activities.
✅ Interfaces:
 Full support for 10/100 Mbps LAN/Ethernet and 2.4GHz Wi-Fi , ensuring stable and versatile connectivity for modern installations and remote system management.
✅ Authentication :
Secure access systems via M1/DESFire tag reader, 4-6 digit PIN and wireless keyfob , ensuring high standards of security and user control.
✅ Bus interconnection :
Communication via half-duplex RS-485 bus with 4-wire wiring , ideal for reliable integration with other devices in the intrusion detection system.
✅ Indication :
 Signaling system with multicolor LED indicators (yellow, green, red) for quick viewing of device status and events.
✅ Hardware :
Fully equipped with microSD support up to 128GB, built-in speaker and debug port , designed to ensure high performance and advanced system management.

Technical data sheet

DS-PK670MDW-HWE/White
Inputs (zones)
Max. Zones 2
On-board zones 2
Outputs
Max. Zones 1
Peripherals
Wireless keyfob 64
Event logs
Event log records 200
User interface
Display 7" Colorful LCD with resolution 600*1024
Indication 1 indicator (Yellow\Green\Red)
Key button 1
Authentication
Tags Supported M1/DESFire® Card
Keyfob 64
PIN 4~6 digits

Bus interconnection
Bus extender x
Bus technology Half-Duplex RS-485
Bus wiring 4-Core Alarm Cable (at least 2 × 0.5 mm² + 2 × 0.22 mm²)
Wireless interconnection
Frequency 868Mhz
Wireless technology R
Transmission modulation GFSK
Transmission range 800m (open area)

Communication interfaces
LAN/Ethernet Supported, 10/100 Mbps self-adaptive
Wi-Fi Supported,802.11b/g/n (2.4GHz)
Power supply - general
Quiescent current 270mA@12VDC
Input voltage 12 VDC nominal (9~24 VDC), powered by bus
Max. current 400mA@12VDC
Relay output
Relay output 1.1A 30VDC
Environmental
Operating temperature -10°C to 50°C
Storage temperature -10°C to 50°C
Relative humidity 10% ~ 90% non-condensing
Physical
Dimensions (W × H × D) 122mmx218.7mmx27mm
Weight 400 g
Installation method Wall mounting
Tamper-proof Front and Rear
Compliance
Electrical compliance CE, CB
EN 50131 Security Grade 2, Environmental Class II
Indication
LED indication Supported
Hardware features
SD card FAT32 up to 128G
Loudspeaker Supported
Mic Reserved
Debugging port 2
General
Application scenario Indoor
Shell material Plastic
Color White
