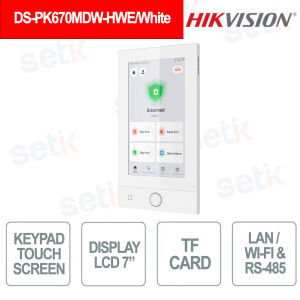

DS-PK670MDW-HWE/White - This white touchscreen keypad represents an advanced solution for security systems thanks to its 7-inch high-resolution LCD touch display that ensures intuitive and immediate control, integrating LAN, Wi-Fi, and RS-485 bus connectivity for flexible and scalable installation. Equipped with live video preview from cameras and event recording on TF card , it allows for complete and verifiable system management, while the integrated tag reader and PIN or keyfob authentication ensure high security standards. The presence of 2 wired zones and 1 relay output allows for integration with external devices, making it ideal for modern and connected professional indoor environments. Hikvision
DS-PK670MDW-HWE/White – TOUCHSCREEN KEYBOARD - 7" LCD DISPLAY - LAN, WI-FI AND RS-485 BUS CONNECTIVITY

The Hikvision DS-PK670MDW-HWE/ White touchscreen keypad is the ideal solution for advanced security systems thanks to its 7” high-resolution LCD touch display that offers an intuitive and modern interface, combined with LAN, Wi-Fi and RS-485 bus connectivity for flexible installations. It supports live camera preview and event recording with TF memory , ensuring immediate control and verification, while the integrated tag reader with PIN and keyfob authentication ensures secure access. The presence of 2 wired zones and 1 relay output allows for complete integration with external devices in professional indoor environments.
Main features:
- 7” high resolution LCD touchscreen display (600x1024)
- LAN, Wi-Fi and RS-485 bus connectivity
- Live video preview and event recording on TF card up to 128GB
- Integrated tag reader with M1/DESFire, PIN and 868MHz keyfob support
- 2 wired zones and 1 relay output for system integration
- Wall mounted, white design for professional indoor environments
Further details
Full support for 10/100 Mbps LAN/Ethernet and 2.4GHz Wi-Fi , ensuring stable and versatile connectivity for modern installations and remote system management.
Signaling system with multicolor LED indicators (yellow, green, red) for quick viewing of device status and events.
Technical data sheet
| DS-PK670MDW-HWE/White | |
| Inputs (zones) | |
| Max. Zones | 2 |
| On-board zones | 2 |
| Outputs | |
| Max. Zones | 1 |
| Peripherals | |
| Wireless keyfob | 64 |
| Event logs | |
| Event log records | 200 |
| User interface | |
| Display | 7" Colorful LCD with resolution 600*1024 |
| Indication | 1 indicator (Yellow\Green\Red) |
| Key button | 1 |
| Authentication | |
| Tags | Supported M1/DESFire® Card |
| Keyfob | 64 |
| PIN | 4~6 digits |
|
Bus interconnection |
|
| Bus extender | x |
| Bus technology | Half-Duplex RS-485 |
| Bus wiring | 4-Core Alarm Cable (at least 2 × 0.5 mm² + 2 × 0.22 mm²) |
| Wireless interconnection | |
| Frequency | 868Mhz |
| Wireless technology | R |
| Transmission modulation | GFSK |
| Transmission range | 800m (open area) |
|
Communication interfaces |
|
| LAN/Ethernet | Supported, 10/100 Mbps self-adaptive |
| Wi-Fi | Supported,802.11b/g/n (2.4GHz) |
| Power supply - general | |
| Quiescent current | 270mA@12VDC |
| Input voltage | 12 VDC nominal (9~24 VDC), powered by bus |
| Max. current | 400mA@12VDC |
| Relay output | |
| Relay output | 1.1A 30VDC |
| Environmental | |
| Operating temperature | -10°C to 50°C |
| Storage temperature | -10°C to 50°C |
| Relative humidity | 10% ~ 90% non-condensing |
| Physical | |
| Dimensions (W × H × D) | 122mmx218.7mmx27mm |
| Weight | 400 g |
| Installation method | Wall mounting |
| Tamper-proof | Front and Rear |
| Compliance | |
| Electrical compliance | CE, CB |
| EN 50131 | Security Grade 2, Environmental Class II |
| Indication | |
| LED indication | Supported |
| Hardware features | |
| SD card | FAT32 up to 128G |
| Loudspeaker | Supported |
| Mic | Reserved |
| Debugging port | 2 |
| General | |
| Application scenario | Indoor |
| Shell material | Plastic |
| Color | White |
