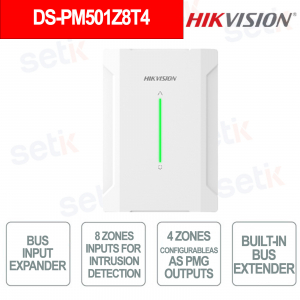

DS-PM501Z8T4 – EXPANSION MODULE

Hikvision

The Hikvision DS-PM501Z8T4 expansion module is designed to enhance intrusion detection systems with 8 zone inputs for intrusion detection and 4 programmable PGM outputs , offering maximum flexibility in system management. It integrates a half-duplex RS-485 bus with bus extender function to extend communication over long distances, as well as a 12V AUX output for powering sensors up to 500 mA . Compatible with numerous third-party wired detectors, it guarantees reliable performance and easy installation in professional indoor environments.

Main features:

- 8 zone inputs for high reliability intrusion detection

- 4 programmable PGM outputs for automation and device control

- RS-485 bus with extender function for communication extension

- AUX output 12V 500 mA for powering detectors

- Compatibility with third-party wired sensors

- Wall installation and professional indoor use

Further details

✅ Areas:
The module integrates 8 wired zone inputs designed for intrusion detection , allowing the direct connection of sensors and devices for complete and reliable management of the security system.
✅ PGM output:
 It has 4 programmable PGM outputs (Z5–Z8) that allow the control of external devices and automations , offering operational flexibility and advanced customization of the system.
✅ Bus interconnection :
RS-485 half-duplex bus communication with built-in bus extender function , ideal for extending connection distance and improving system stability , using 4-wire wiring for professional installations.

Technical data sheet

DS-PM501Z8T4
Inputs (Zones)
Max. Zones 8
On-board zones 8
Outputs
Max. outputs 4
On-board PGM outputs 4 (Z5~Z8 programmable)

Bus interconnection
Bus extender Yes
Bus technology Half-Duplex RS-485
Bus wiring 4-Core Alarm Cable (at least 2 × 0.5 mm² + 2 × 0.22 mm²)
Power supply - general
Input voltage 12 VDC nominal (9~16 VDC), powered by bus
Quiescent current 80 mA @12VDC
Max. current 150 mA @12VDC
Power supply - auxiliary power output
Output capacity 12VDC nominal (9~16 VDC), 500mA
Output protection 500 mA PPTC
PGM output
Output capacity 0 VDC with switched (NPN output)
Max. current 200 mA per output
Environmental
Operating temperature -10°C to 50°C (14°F to 122°F), indoor use only
Storage temperature -20°C to 60°C (-4°F to 140°F)
Relative humidity 10% ~ 90% non-condensing
Physical
Dimensions (W × H × D) 110 × 155 × 31 mm
Weight 225 g
Tamper-proof Front and Rear
Installation method Wall mount
Compliance
Electrical compliance CE, CB
EN 50131 Security Grade 2, Environmental Class II
