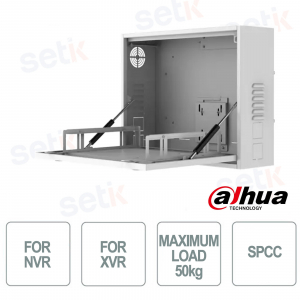

PFC301N | ALL-IN-ONE WALL-MOUNTED CCTV CABINET, WHITE

The Dahua PFC301N wall-mounted cabinet is designed for professional video surveillance systems, constructed from high-strength galvanized steel to ensure reliability and security. It can accommodate DVRs and NVRs, supports monitors up to 22" with VESA 75/100 mounts, and offers a 90° opening design for easy installation and maintenance. Equipped with double locks, integrated PDU sockets, passive ventilation, and a load capacity of up to 50 kg, it represents a complete solution for protecting and organizing security devices .
Main specifications:
- Made of galvanized steel with IP20 protection rating
- Supports DVR/NVR and monitors up to 22" VESA 75/100
- 90° opening structure for quick and easy installation
- Load capacity up to 50 kg with double safety lock
- Passive ventilation and provision for additional fan
Further details

Technical data sheet
PFC301N | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
General |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Material |
SPCC (The thickness is 1.2 mm) (0.05") |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Appearance Color |
White |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Installation |
Wall mount |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Protection Grade |
IP20 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Load Bearing Capacity |
50 kg (110.23 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Cabinet Lock |
2 × Locks on front door |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm |
1 × Alarm Signal Output |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Compatibility |
NVR/DVR base: Supports the installation of Dahua storage devices, with a maximum compatible storage device size: 375 mm × 329.6 mm × 53 mm (14.76" × 12.99" × 2.09") (L × W × H) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Temperature |
–35 °C to +70 °C (– 31 °F to +158 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Humidity |
<90% (RH) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage Temperature |
–40 °C to +60 °C (–40 °F to +140 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage Humidity |
10%–90% (RH) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Net Weight |
13.5 kg ± 0.5 kg (29.76 lb ± 1.10 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gross Weight |
14.5 kg ± 0.5 kg (31.97 lb ± 1.10 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Packaging |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

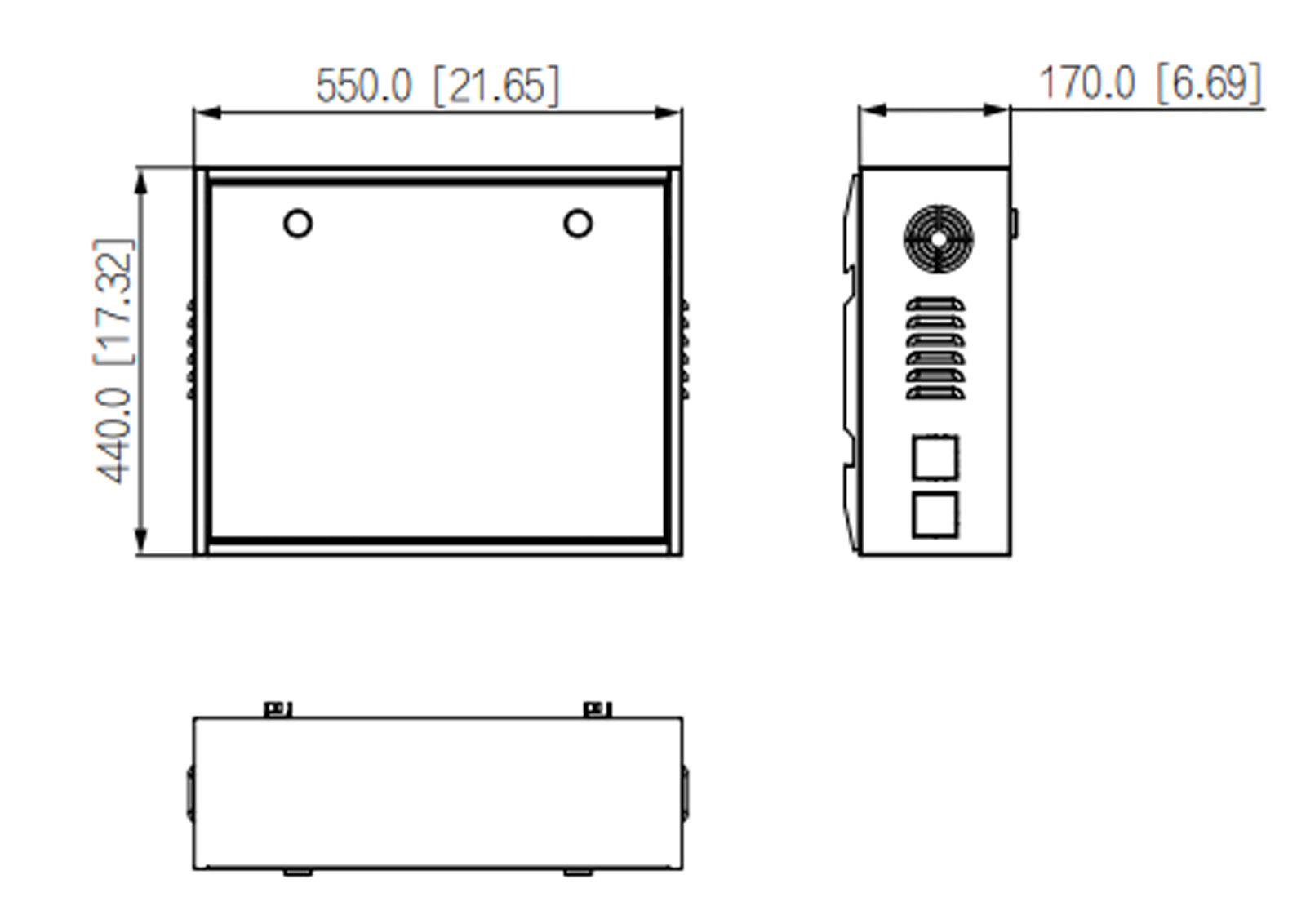

Product Dimensions (W × H × D) |
550 mm × 440 mm × 170 mm (21.65" × 17.32" × 6.69") |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Packaging Dimensions (W × H × D) |
651 mm × 552 mm × 271 mm (25.63" × 21.73" × 10.67") |
