PFC301N - Safe and Reliable Wall-Mounted CCTV Cabinet for DVR/NVR - Dahua

PFC301N - Safe and Reliable Wall-Mounted CCTV Cabinet for DVR/NVR - Dahua

-56% Neu

PFC301N- is a wall-mounted cabinet for video surveillance systems, made of high-quality galvanized steel to ensure resistance and safety. Designed to house DVRs and NVRs , it supports monitors up to 22" with VESA 75/100 mount and includes a double lock for maximum data protection. Thanks to its compact design and 90° opening, it facilitates installation and maintenance, with a load capacity of up to 50 kg . It is equipped with integrated PDU sockets, passive ventilation and fan provision, ensuring reliability even in critical environments. With an IP20 protection rating and modular compatibility, it is perfectly suited to various professional security needs. Dahua

Technical Data Sheet

Artikel-Nr.: PFC301N

Marke: Dahua

EAN: 6939554957130

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

Das 2001 gegründete asiatische Unternehmen verdankt seinen Ruf der hervorragenden Qualität seiner Produkte in Bezug auf Leistung und Kapazität. Die Produktpalette von Dahua reicht von klassischen CCTV-Systemen bis hin zu komplexeren und gegliederten Sicherheitssystemen: nicht nur Videoüberwachung, sondern auch Zutrittskontrolle, Video-Zugangssysteme, Produkte zur Wärmeerkennung und vieles mehr. Die Zuverlässigkeit, die hochmoderne Technologie und die wettbewerbsfähigen Preise, die Dahua bietet, sind nur einige der Gründe, warum Setik sich immer für den Vertrieb der Marke entschieden hat. Dahua ist seit Jahren ein solider Bezugspunkt auf dem internationalen CCTV-Markt, dank der enormen Investitionen, die jedes Jahr in Forschung und Entwicklung fließen. Die Zahlen sprechen für sich: von 2016 bis heute hat Dahua mehr als 800 Patente unter seiner eigenen Marke angemeldet. Gegenwärtig kann sich Dahua rühmen, zu den 10 weltweit führenden Unternehmen in der Welt der Sicherheit zu gehören. In diesem Jahr wurde Dahua mit dem 2. Platz in der Rangliste "2018 TOP SECURITY 50" ausgezeichnet.

Die Produkte der Marke Dahua, die von Setik SRL verkauft werden, können als OEM-Produkte geliefert werden, d.h. Produkte, die vollständig original Dahua-Produkte sind, aber ein anderes ästhetisches Erscheinungsbild haben, das dem Online-Markt vorbehalten ist (im Allgemeinen in Bezug auf Logo und Verpackung). Dies beeinträchtigt in keiner Weise die Garantie und die technischen Eigenschaften des Produkts, das immer ein Original Dahua ist, noch irgendwelche Aktualisierungen und Funktionalitäten.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. ist einer der weltweit führenden Anbieter von Videoüberwachungslösungen mit mehr als 13.000 Mitarbeitern und 35 aktiven Tochtergesellschaften weltweit.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-06-24 15:40:21 [link_rewrite] => dahua [meta_title] => Die besten Dahua-Produkte: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Dahua-Produkte für die digitale Videoüberwachung IP, HYBRIDA, HD-SDI, HDCVI, wie z.B. Kameras, Rekorder, Zugangskontrolle, Zubehör und Wifi-Videosprechanlagen. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 26 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
INSTALLATEUR FINDEN


TOTALER AUSVERKAUF ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

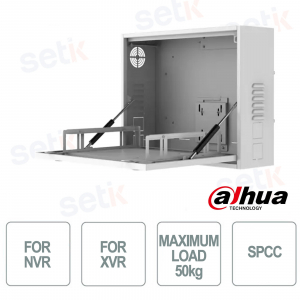

PFC301N | ALL-IN-ONE WALL-MOUNTED CCTV CABINET, WHITE

Dahua

The Dahua PFC301N wall-mounted cabinet is designed for professional video surveillance systems, constructed from high-strength galvanized steel to ensure reliability and security. It can accommodate DVRs and NVRs, supports monitors up to 22" with VESA 75/100 mounts, and offers a 90° opening design for easy installation and maintenance. Equipped with double locks, integrated PDU sockets, passive ventilation, and a load capacity of up to 50 kg, it represents a complete solution for protecting and organizing security devices .

Main specifications:

- Made of galvanized steel with IP20 protection rating

- Supports DVR/NVR and monitors up to 22" VESA 75/100

- 90° opening structure for quick and easy installation

- Load capacity up to 50 kg with double safety lock

- Passive ventilation and provision for additional fan

Further details

Material :
Constructed from 1.2mm thick SPCC galvanized steel, the cabinet guarantees sturdiness and durability. The structure is designed to withstand harsh indoor environments, with IP20 protection and a load capacity of up to 50kg, ensuring maximum reliability and safety.
NVR Compatibility:
It supports the installation of Dahua NVR storage devices with dimensions up to 375 × 329.6 × 53 mm, providing dedicated and protected space. Thanks to the double lock design, it helps protect sensitive data and ensure video surveillance system continuity .
XVR Compatibility:
Designed for versatility, the cabinet is also compatible with Dahua DVR/XVR solutions, allowing integration with hybrid recording systems. This makes it suitable for both professional and residential settings, improving security management with a single centralized infrastructure .
PFC301N dimensions

Technical data sheet

PFC301N

General

Material

SPCC (The thickness is 1.2 mm) (0.05")

Appearance Color

White

Installation

Wall mount

Protection Grade

IP20

Load Bearing Capacity

50 kg (110.23 lb)

Cabinet Lock

2 × Locks on front door

Alarm

1 × Alarm Signal Output

Compatibility

NVR/DVR base: Supports the installation of Dahua storage devices, with a maximum compatible storage device size: 375 mm × 329.6 mm × 53 mm (14.76" × 12.99" × 2.09") (L × W × H)
Monitor: Fits up to 22" monitor, with 75/100 VESA mounts.
Ventilation: 1 × Fan.
Power: 1 × PDU with 4 outlets
(The above compatible devices are all Dahua devices)

Operating Temperature

–35 °C to +70 °C (– 31 °F to +158 °F)

Operating Humidity

<90% (RH)

Storage Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Storage Humidity

10%–90% (RH)

Net Weight

13.5 kg ± 0.5 kg (29.76 lb ± 1.10 lb)

Gross Weight

14.5 kg ± 0.5 kg (31.97 lb ± 1.10 lb)

Packaging

Product Dimensions (W × H × D)

550 mm × 440 mm × 170 mm (21.65" × 17.32" × 6.69")

Packaging Dimensions (W × H × D)

651 mm × 552 mm × 271 mm (25.63" × 21.73" × 10.67")

All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
