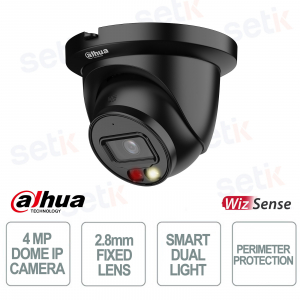

Dahua IPC-HDW2449TM-S-IL-B 4MP Black AI Camera with 2.8mm Lens

Dahua IPC-HDW2449TM-S-IL-B 4MP Black AI Camera with 2.8mm Lens
-56%

The IPC-HDW2449TM-S-IL-B is a black camera with a 2.8 mm fixed lens offering 4MP resolution and clear images even in low light conditions thanks to Full-Color and Starlight technology. Equipped with Smart Dual Light, it combines IR LEDs and intelligent white light to ensure color footage only when needed, reducing light pollution. Integrated AI functions include perimeter protection and SMD Plus for accurate detection of people and vehicles, minimizing false alarms. With a built-in microphone, H.265 compression and IP67 protection, it is ideal for indoor and outdoor installations. Dahua

Technical Data Sheet

referencia : IPC-HDW2449TM-S-IL-B

brand : Dahua

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

La empresa asiática, fundada en 2001, debe su reputación a la excelente calidad de sus productos en términos de rendimiento y capacidad. La gama de productos de Dahua abarca desde los sistemas clásicos de CCTV hasta los sistemas de seguridad más complejos y articulados: no sólo la videovigilancia, sino también el control de acceso, los sistemas de videoportería, los productos de detección térmica y mucho más. La fiabilidad, la tecnología de punta y los precios competitivos que ofrece Dahua son sólo algunas de las razones por las que Setik siempre ha elegido distribuir la marca. Dahua es desde hace años un sólido punto de referencia en el mercado internacional de los circuitos cerrados de televisión, gracias a las enormes inversiones que cada año se dedican a la investigación y el desarrollo. Las cifras hablan por sí mismas: desde 2016 hasta hoy Dahua ha registrado más de 800 patentes con su propia marca. Actualmente Dahua puede presumir de estar entre los 10 primeros líderes mundiales en el mundo de la seguridad. Este año Dahua fue premiado con el 2º puesto en el ranking "2019 TOP SECURITY 50".

Los productos de la marca Dahua vendidos por Setik SRL pueden ser entregados como productos OEM, es decir, productos que a todos los efectos son productos originales de Dahua, pero que tienen una apariencia estética diferente reservada para el mercado en línea (generalmente en términos de logotipo y embalaje). Esto no afecta en modo alguno a la garantía y a las características técnicas del producto, que es siempre genuino de Dahua, ni a las actualizaciones y la funcionalidad.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. es uno de los principales proveedores mundiales de soluciones de videovigilancia, con más de 13.000 empleados y 35 filiales activas en todo el mundo.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-06-24 15:40:21 [link_rewrite] => dahua [meta_title] => Los mejores productos Dahua: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Productos Dahua para la videovigilancia digital IP, HYBRIDA, HD-SDI, HDCVI, como cámaras, grabadoras, control de acceso, accesorios y videointercomunicadores wifi. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR


LIQUIDACION TOTAL ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

IPC-HDW2449TM-S-IL-B | 4MP IP CAMERA WITH 2.8mm FIXED LENS - STARLIGHT - FULLCOLOR - VIDEO ANALYSIS


Dahua

The black Dahua IPC-HDW2449TM-S-IL-B camera with a 2.8 mm fixed lens offers 4MP resolution and clear images even in low light conditions thanks to Full-Color and Starlight technology. With Smart Dual Light, it uses IR LEDs and white light only when necessary, ensuring crisp color footage while reducing light pollution. Integrated AI features include perimeter protection, person/vehicle detection, and SMD Plus to reduce false alarms. A built-in microphone, H.265 compression, and IP67 protection complete a professional solution suitable for indoor and outdoor installations.

Main specifications:

- 4MP resolution (2688 × 1520) with 1/2.9" CMOS sensor

- 2.8 mm fixed optics, 95° horizontal viewing angle

- Product color: black

- Full-Color and Smart Dual Light technology up to 30 m

- AI with perimeter protection and SMD Plus

- Audio with built-in microphone

- Network camera with PoE, microSD slot up to 256GB

- IP67 certification for outdoor use

Further details

Resolution:
Equipped with a 1/2.9” CMOS sensor with a maximum resolution of 4MP (2688 × 1520), it guarantees high definition images and sharp details even in low light conditions, supporting up to 30 fps .
Optics :
2.8mm wide-angle fixed lens with 95° horizontal field of view, perfect for video surveillance of large environments, reducing blind spots and ensuring complete monitoring.
Intelligence :
Thanks to the deep learning algorithm and WizSense technology, the camera supports advanced AI functions such as accurate human and vehicle detection, behavioral analysis and smart search for professional-grade security .
Perimeter Protection :
Perimeter protection dramatically reduces false alarms by recognizing intrusions and line crossings, intelligently distinguishing humans and vehicles in sensitive areas.

Smart Dual Light:
Dual illumination technology uses IR LEDs during night surveillance and activates the white light only when a target is detected, ensuring color images of important events and reducing light pollution.
Audio:
Built-in microphone with support for major codecs (G.711a, G.711Mu, PCM, G.726), for clear and reliable audio-video synchronized recordings .

Network Camera:
Compatible with standard network protocols (IPv4/IPv6, ONVIF, RTSP, HTTP), it supports PoE for easy installation and is equipped with a MicroSD slot up to 256GB, as well as storage on NAS or FTP, offering great flexibility of use.
IPC-HDW2449TM-S-IL-B dimensions

Technical data sheet

MODEL IPC-HDW2449TM-S-IL-B
Room
Image Sensor 1/2.9" CMOS
Max. Resolution 2688 (H) × 1520 (V)
ROM 128 MB
RAM 128 MB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s–1/100000 s
Min. Illumination 0.006 lux@F1.6 (Color, 30 IRE)
0.0006 lux@F1.6 (B/W, 30 IRE)
0 lux (Illuminator on)
S/N Ratio > 56 dB
Illumination Distance up to 30 m (98.43 ft) (IR); up to 30 m (98.43 ft) (Warm light)
Illuminator On/Off Control Auto/Manual
Illuminator Number 1 (IR LED); 1 (Warm light)
Pan/Tilt/Rotation Range Pan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°
Lens
Lens Type Fixed-focal
Mount Type M12
Focal Length 2.8 mm
Max. Openings F1.6
Field of View H: 95°; V: 52°; D: 114°
Iris Type Fixed
Close Focus Distance 0.9 m (2.95 ft)
Intelligence
IVS (Perimeter Protection) Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)
Smart Search Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
Video
Video Compression H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)
Smart Codec Smart H.265+/ Smart H.264+
Video Frame Rate Main stream: 2688 × 1520@(1–20 fps)/2560 × 1440@(1–25/30 fps)
sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity
Streaming Capability 2 stream
Resolution 4M (2688 × 1520/2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280×960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control CBR; VBR
Video Bit Rate H.264: 32 kbps–6144 kbps
H.265: 12 kbps–6144 kbps
Day/Night Auto(ICR)/Color/B/W
BLC Yes
HLC Yes
WDR 120 dB
White Balance Auto/natural/street lamp/outdoor/manual/regional custom
Gain Control Manual/Auto
Noise Reduction 3D NR
Motion Detection OFF/ON (4 areas, rectangular)
Region of Interest (RoI) Yes (4 areas)
Smart Lighting Yes
Smart Dual Light Yes
Image Rotation 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower)
Mirror Yes
Privacy Masking 4 areas
Audio
Built-in MIC Yes, built-in Mic
Audio Compression G.711a; G.711Mu; PCM; G.726
Alarm
Alarm Event No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; voltage detection; security exception; SMD
Network
Network RJ-45 (10/100 Base-T)
SDK and API Yes
Protocol IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; P2P RTMP; SMTP; FTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP; P2P
Interoperability ONVIF (Profile S/Profile G/Profile T); CGI
User/Host 6 (Total bandwidth: 36 M)
Storage FTP; SFTP; Micro SD card (support max. 256GB)
Browser IE
Chrome
Firefox
Management Software DSS;DMSS
Mobile Client Android; iOS
Cyber Security Configuration encryption; Trusted execution; Digests; Security logs; WSSE; Account lockout; syslog; Video encryption; 802.1x; IP/MAC filtering; HTTPS; Trusted upgrades; Trusted boot; Generation and importing of X.509 certification
Certification
Certifications CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B;
UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14
Power
Power Supply 12V DC/POE (802.3af)
Power Consumption Basic: 2.1W (12VDC); 2.5W (PoE)
Max. (H.265 + intelligence on + WDR + warm light): 4.4 W (12 VDC); 5.2W (PoE)
Environment
Operating Temperature –40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity ≤95%
Strorage Temperature –40 °C to +60 °C (–40 °F to +140 °F)
Protection IP67
Structure
Casing Material Inner core: Metal;
Cover: Metal;
Decoration ring: Plastic
Product Dimensions 99.1 mm × Φ121.9 mm (3.90" × Φ4.80")
Net Weight 0.46 kg (1.01 lb)
Gross Weight 0.65 kg (1.43 lb)
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
