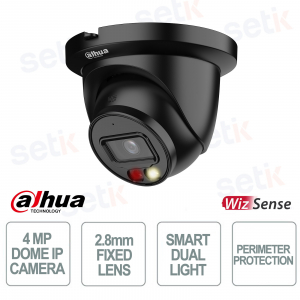

IPC-HDW2449TM-S-IL-B | TELECAMERA IP 4MP OTTICA FISSA 2.8mm - STARLIGHT - FULLCOLOR - VIDEO ANALISI

La telecamera Dahua IPC-HDW2449TM-S-IL-B nera con ottica fissa da 2.8 mm offre risoluzione 4MP e immagini chiare anche in condizioni di bassa luminosità grazie alla tecnologia Full-Color e Starlight. Con Smart Dual Light utilizza LED IR e luce bianca solo quando necessario, garantendo riprese a colori nitide riducendo l’inquinamento luminoso. Le funzioni AI integrate includono protezione perimetrale, rilevamento persone/veicoli e SMD Plus per ridurre i falsi allarmi. Microfono integrato, compressione H.265 e protezione IP67 completano una soluzione professionale adatta a installazioni interne ed esterne.
Specifiche principali:
- Risoluzione 4MP (2688 × 1520) con sensore CMOS 1/2.9"
- Ottica fissa 2.8 mm, angolo di visione 95° orizzontale
- Colore prodotto: nero
- Tecnologia Full-Color e Smart Dual Light fino a 30 m
- AI con protezione perimetrale e SMD Plus
- Audio con microfono integrato
- Network camera con PoE, slot microSD fino a 256GB
- Certificazione IP67 per uso esterno
Ulteriori dettagli
✅ Smart Dual Light:
✅ Network Camera:

Scheda tecnica
MODEL | IPC-HDW2449TM-S-IL-B |
Camera | |
Image Sensor | 1/2.9" CMOS |
Max. Resolution | 2688 (H) × 1520 (V) |
ROM | 128 MB |
RAM | 128 MB |
Scanning System | Progressive |
Electronic Shutter Speed | Auto/Manual 1/3 s–1/100000 s |
Min. Illumination | 0.006 lux@F1.6 (Color, 30 IRE) 0.0006 lux@F1.6 (B/W, 30 IRE) 0 lux (Illuminator on) |
S/N Ratio | > 56 dB |
Illumination Distance | up to 30 m (98.43 ft) (IR); up to 30 m (98.43 ft) (Warm light) |
Illuminator On/Off Control | Auto/Manual |
Illuminator Number | 1 (IR LED); 1 (Warm light) |
Pan/Tilt/Rotation Range | Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360° |
Lens | |
Lens Type | Fixed-focal |
Mount Type | M12 |
Focal Length | 2.8 mm |
Max. Aperture | F1.6 |
Field of View | H: 95°; V: 52°; D: 114° |
Iris Type | Fixed |
Close Focus Distance | 0.9 m (2.95 ft) |
Intelligence | |
IVS (Perimeter Protection) | Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human) |
Smart Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
Video | |
Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) |
Smart Codec | Smart H.265+/ Smart H.264+ |
Video Frame Rate | Main stream: 2688 × 1520@(1–20 fps)/2560 × 1440@(1–25/30 fps) sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity |
Streaming Capability | 2 stream |
Resolution | 4M (2688 × 1520/2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
Bit Rate Control | CBR; VBR |
Video Bit Rate | H.264: 32 kbps–6144 kbps H.265: 12 kbps–6144 kbps |
Day/Night | Auto(ICR)/Color/B/W |
BLC | Yes |
HLC | Yes |
WDR | 120 dB |
White Balance | Auto/natural/street lamp/outdoor/manual/regional custom |
Gain Control | Manual/Auto |
Noise Reduction | 3D NR |
Motion Detection | OFF/ON (4 areas, rectangular) |
Region of Interest(RoI) | Yes (4 areas) |
Smart Illumination | Yes |
Smart Dual Light | Yes |
Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower) |
Mirror | Yes |
Privacy Masking | 4 areas |
Audio | |
Built-in MIC | Yes, built-in Mic |
Audio Compression | G.711a; G.711Mu; PCM; G.726 |
Alarm | |
Alarm Event | No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; voltage detection; security exception; SMD |
Network | |
Network | RJ-45 (10/100 Base-T) |
SDK and API | Yes |
Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; P2P RTMP; SMTP; FTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP; P2P |
Interoperability | ONVIF (Profile S/Profile G/Profile T); CGI |
User/Host | 6 (Total bandwidth: 36 M) |
Storage | FTP; SFTP; Micro SD card (support max. 256 GB) |
Browser | IE Chrome Firefox |
Management Software | DSS;DMSS |
Mobile Client | Android;iOS |
Cyber Security | Configuration encryption; Trusted execution; Digest; Security logs; WSSE; Account lockout; syslog; Video encryption; 802.1x; IP/MAC filtering; HTTPS; Trusted upgrade; Trusted boot; Generation and importing of X.509 certification |
Certification | |
Certifications | CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B; UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14 |
Power | |
Power Supply | 12V DC/POE (802.3af) |
Power Consumption | Basic: 2.1 W (12 VDC); 2.5 W (PoE) Max. (H.265 + intelligence on + WDR + warm light): 4.4 W (12 VDC); 5.2 W (PoE) |
Environment | |
Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
Operating Humidity | ≤95% |
Strorage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
Protection | IP67 |
Structure | |
Casing Material | Inner core: Metal; Cover: Metal; Decoration ring: Plastic |

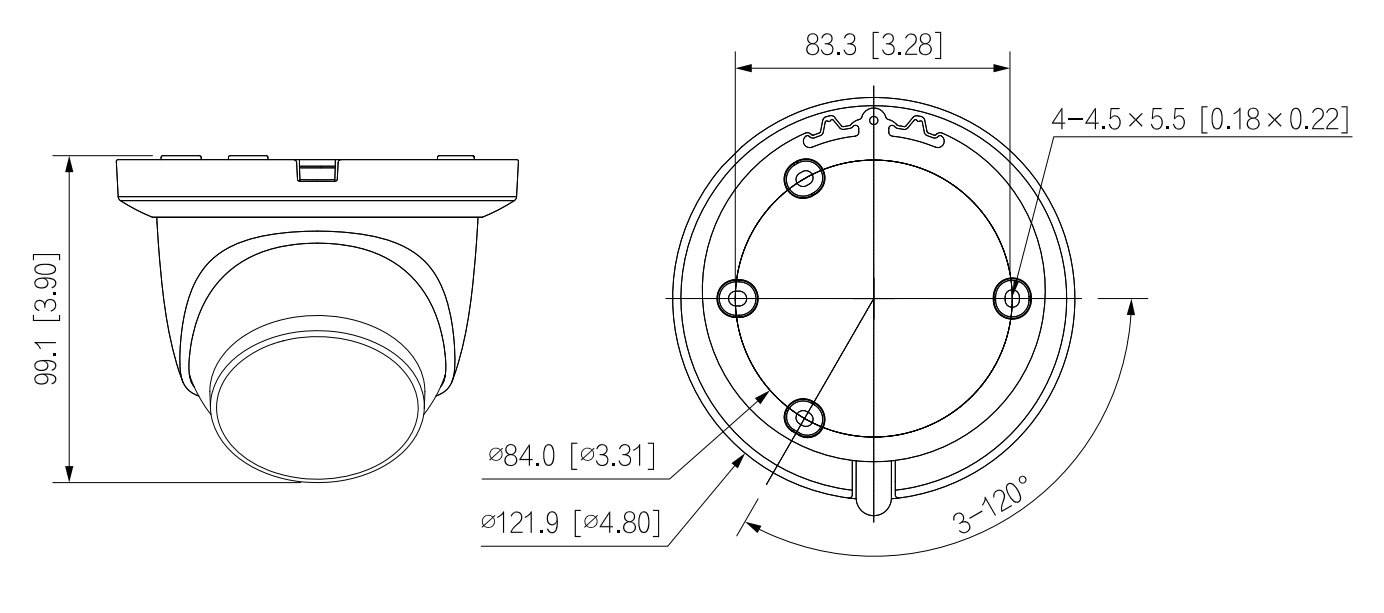

Product Dimensions | 99.1 mm × Φ121.9 mm (3.90" × Φ4.80") |
Net Weight | 0.46 kg (1.01 lb) |
Gross Weight | 0.65 kg (1.43 lb) |
