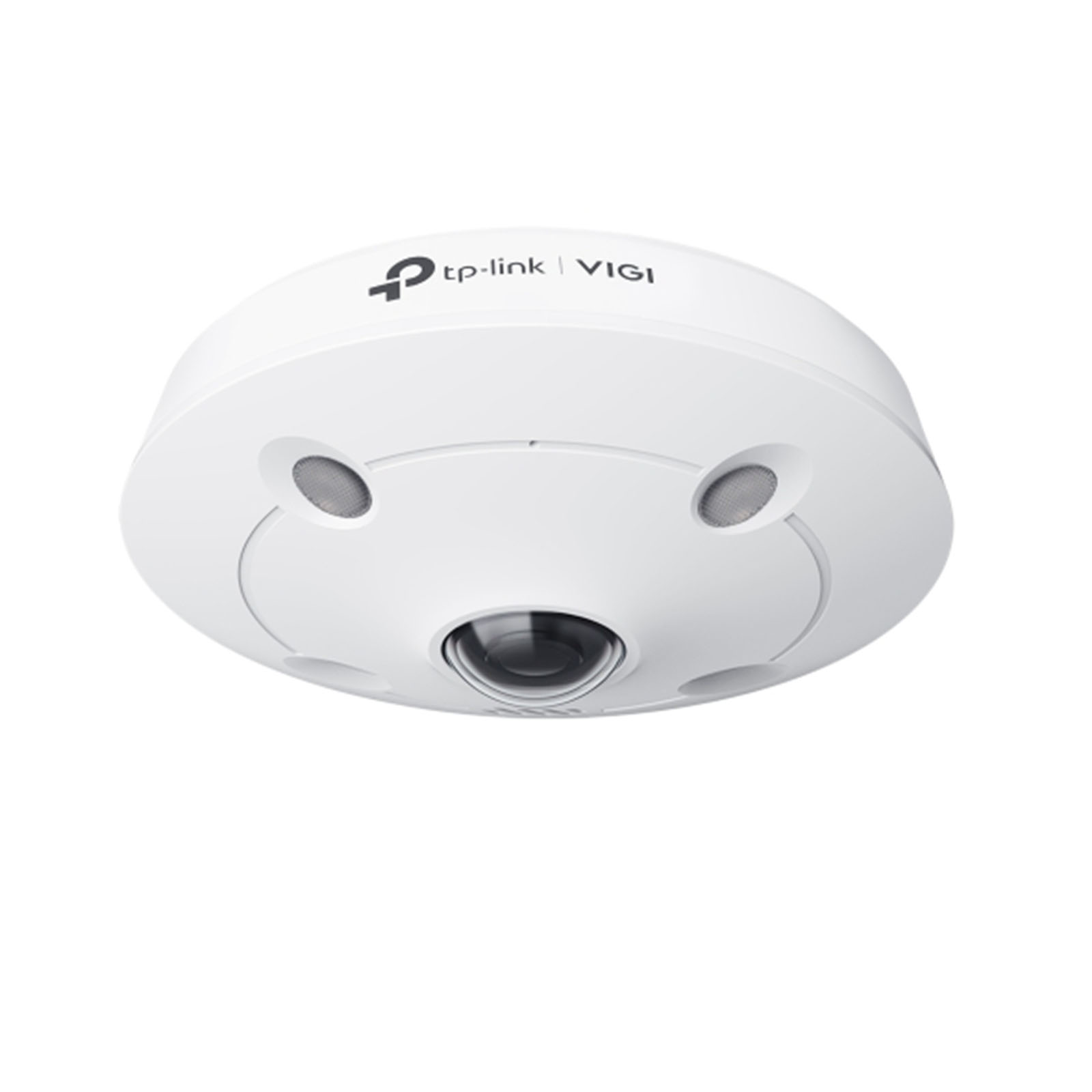

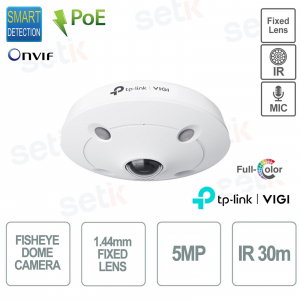

Fisheye Dome Camera TP Link InSight S655I ViGi 5MP 1.44mm 360° Coverage Night Vision IP67 & IK10

Fisheye Dome Camera TP Link InSight S655I ViGi 5MP 1.44mm 360° Coverage Night Vision IP67 & IK10
ANUNCIOS -45%

VIGI InSight S655I TP-Link VIGI 5MP Fisheye Dome Camera S655I IP ONVIF PoE with Night Vision 5Megapixel, 1.44mm fixed lens, H.265+, Smart IR with white light up to 30M. Motion detection, Smart Detection, remote monitoring, BLC, 3D DNR, HLC, WDR, reset button. IP67 & IK10 protection. Dimensions: 132 × 132 × 56mm


3 Year Warranty


referencia : InSight S655I

brand : VIGI

EAN: 8885020627848

Manufacturer Object ( [id] => 52 [name] => VIGI [description] =>

La historia de VIGI se remonta a la creciente demanda de soluciones de seguridad de video de alta calidad. Con el aumento de la conciencia sobre la seguridad, las personas buscaban soluciones confiables para monitorear y proteger sus espacios. TP-Link respondió a esta necesidad mediante la introducción de la marca VIGI.
Los productos VIGI incluyen varios tipos de cámaras de vigilancia, como cámaras bullet, cámaras domo, cámaras PTZ y más. Estas cámaras vienen con características avanzadas como resolución de video de alta definición, visión nocturna, detección de movimiento, notificaciones push y mucho más. Además, muchas cámaras VIGI ofrecen la opción de almacenar videos en tarjetas microSD o utilizar servicios de almacenamiento en la nube.
TP-Link se ha ganado una reputación de confiabilidad y calidad en la industria de redes, y la marca VIGI ha continuado esta tradición en el sector de seguridad de video. Con un compromiso constante con la innovación y la calidad, TP-Link continúa expandiendo la línea de productos VIGI para satisfacer las crecientes necesidades de seguridad del mercado.

[short_description] =>


La marca VIGI fue lanzada por TP-Link como una línea de productos de vigilancia de video avanzados, enfocados en la seguridad doméstica y comercial. Esta línea de productos fue diseñada para ofrecer soluciones de vigilancia de video confiables, de alto rendimiento y fáciles de usar para ayudar a las personas a proteger sus hogares, negocios y propiedades.

[id_address] => [date_add] => 2024-06-11 17:20:54 [date_upd] => 2025-02-18 16:36:33 [link_rewrite] => vigi [meta_title] => [meta_keywords] => [meta_description] => [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR


LIQUIDACION TOTAL ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

S655I bunner


InSight S655I 5MP TP LINK VIGI DOME CAMERA WITH NIGHT VISION - ACTIVE DETERRENCE

Made VIGI

TP-Link VIGI 5MP Dome IP ONVIF Fisheye Camera - InSight S655I
5 Megapixel resolution - 1.4mm fixed lens - H.265+ compression - 1/2.7" Progressive Scan CMOS sensor
Night Vision and White Light IR : Up to 30 meters - SmartVid : Smart IR, WDR, 3D DNR, HLC
Video Analysis and Human/Vehicle Classification - Smart Detection
Remote Monitoring - 3 Year Warranty

PRODUCT DETAILS

S655I


|| Technical Specifications:

  • Video Resolution: H.265+/H.265/H.264+/H.264
  • Sensor: 1/2.7" Progressive Scan CMOS
  • Illumination: Color: 0.1 Lux; 0 Lux with IR
  • Frame Rate: 2560 × 1920, 2256 × 1696, 2048 × 1536, 1280 × 960
  • Power supply: 12V DC/PoE
  • Lens: 1.44mm fixed lens

|| Main Features:

  • Full-Color and IR Night Vision: Up to 30 meters away for clear images even in the dark.
  • Custom Patrol: Configure custom monitoring routes.
  • Active Defense: Built-in audible and visual alarms to respond to suspicious events.
  • On-Board Storage: Supports micro-SD cards for local storage.
  • Intelligent Detection: Includes human-classified motion detection, camera tampering, line crossing and area intrusion.
  • SmartVid: Advanced technologies such as Smart IR, WDR, 3D DNR and BLC improve video quality.
  • ONVIF Compatibility: Interoperability with other security devices.
  • Remote Monitoring: Access via the VIGI app, web interface and VIGI Security Manager.
  • 3 Year Warranty

TECHNICAL DATA SHEET

ROOM
Image Sensor 1/2.7” Progressive Scan CMOS
Shutter Speed 1/3 to 1/10000 s
Slow Shutter Yes
Min. Illumination Color: 0.1 Lux; 0 Lux with IR
Digital Noise Reduction 3D DNR
Day/Night Switch Unified/ Scheduled/ Auto
LENS
Type Fixed Focal Lens
Focal Length 1.44 mm
Openings F2.0
FOV Horizontal FOV: 180°, Vertical FOV: 180°, Diagonal FOV:180°
Lens Mount M12
DORI Distance Detect: 28.8 m (94 ft)
Observe:12 m (39 ft)
Recognize: 5.7 m (19 ft)
Identify: 2.8 m (9 ft)
FISHEYE DISPLAY
Installation Ceiling Mount; WallMount; Pendant Mount
Display Mode Ceiling Mount:
Fisheye, AR Dewarp, 180 Panorama, 360 Panorama
Cylinder, 2PTZ, 4PTZ, Fisheye + 8PTZ, Fisheye + 3PTZ, 360 Panorama + 8PTZ, 360 Panorama + 6PTZ, 360 Panorama + PTZ
Wall Mount:
Fisheye, 360 Panoramic Unwrap, 360 Panoramic Unwrap+3PTZ, 360 Panoramic Unwrap+8PTZ, 4PTZ, Fisheye + 3PTZ, Fisheye + 8PTZ
ANGLE ADJUSTMENT (MANUAL)
Range N/A
ILLUMINATOR
IR LED Quantity: 4
Range: 30m
Wavelength: 850nm
White LED N/A
Illuminator On/Off Control Auto/Scheduled/Always on/Always off
VIDEO
Max. Resolution 2560 × 1920
Main Stream Frame Rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Resolution:
2560 × 1920, 2256 × 1696, 2048 × 1536, 1280 × 960

Note:
If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
If WDR is on, the frame rate only supports up to 15fps.
Sub-Stream Frame Rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Resolution:
640 × 480, 320 × 240

Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
If WDR is on, the frame rate only supports up to 15fps.
Bit Rate Control CBR, VBR
Video Compression Main Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264
H.264 Type High Profile
H.264+ Main Stream Supported
H.265 Type Main Profile
H.265+ Main Stream Supported
Video Bit Rate Main Stream: 256 Kbps to 6 Mbps
Sub-Stream: 64 Kbps to 512 Kbps
Image Settings
  • Brightness
  • Contrast
  • Saturation
  • Sharpness
  • Exposure
  • WDR
  • White Balance
  • Prevent Overexposure to Infrared Light
  • HLC Adjustable by Client Software
Image Enhancement BLC/3D DNR/HLC/SmartIR
Wide Dynamic Range 120dB
SNR ≥ 52 dB
Image Parameters Switch Yes
Privacy Mask Up to 4 Masks
ROI 1 Region
OSD Settings Yes
AUDIO
Audio communication Two-Way Audio
Audio input Yes
Audio output Yes
Audio codec Yes
Audio Sampling Rate 8KHz
Environment Noise Filtering Yes
Audio Bit Rate 64 Kbps (G.711 alaw)
NETWORK
Protocol TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP
ONVIF Yes
General Function Two Streams, Mirror, Privacy Masks, Password Reset via Email, HTTP Listening
API Open Network Video Interface (Profile S/T/G)
Simultaneous Live View 3 Main Streams & 3 Sub-Streams
Client Utilities, VIGI App, Web UI, VIGI VMS, VIGI Cloud VMS
Web Browser
  • Google Chrome® 57 and above
  • Firefox® 52 and above
  • Safari® 11 and above
  • Microsoft® Edge 91 and above
Cloud Yes
Security Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
ALARM AND EVENT MANAGEMENT
Smart Event
  • Intrusion Detection
  • Line-Crossing Detection
  • Region Entering Detection
  • Region Exiting Detection
  • Abnormal Sound Detection
Basic Event
  • Motion Detection
  • Video Tampering Detection
  • Exception (Illegal Login)
Alarm Linkage
  • Memory Card Video Recording
  • Push Message
  • Audible Warning
Linkage Method N/A
Output Notification
  • Push Message
  • Email Alarm
  • Upload Capture to FTP
INTERFACE
Communication Interface 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
Alarm N/A
Reset Button Yes
Power DC Power Port
On-board Storage Built-In Memory Card Slot, Support MicroSD Card, Up to 512GB
Built-In Microphone Yes; Records Anything Going on within a 15-ft Radius of the Camera
Built-In Speaker Yes
Audio N/A
GENERAL
Operating Temperature -30–60 °C
Storage Temperature -40–60 °C
Operating Humidity 95% or Less (Non-Condensing)
Storage Humidity 95% or Less (Non-Condensing)
Package Contents
  • VIGI Network Camera
  • Quick Start Guide
  • Waterproof Cable Attachments
  • Mounting Accessories
Material Metal
Net Weight 0.44 Kg (without Mounting Accessories)
0.48 Kg (with Mounting Accessories)
Power Supply 12V DC ± 5%, Max. 11.76 W, 5.5mm Coaxial Power Plug
PoE: 802.3af/at, class 0, Max. 12.14W
Protection IP67 Weatherproof, IK10 Vandal Proof
Product Dimensions (L x W x H) 5.2 × 5.2 × 2.2 in (132 × 132 × 56mm)
Certifications THERE IS; NTRA; KC; FCC; VCCI; BSMI; ONVIF

S655I icons


This product complies with the Onvif standard


All Onvif cameras are the industry standard for IP cameras. Being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a stand-alone camera that can never be used with recording systems.

This camera is ONVIF® compatible

360° coverage

A fisheye camera offers a simpler and more competitive security solution. For example, in 4PTZ viewing mode, it functions as four cameras simultaneously, offering comprehensive coverage and flexible perspectives.


360° coverage


Multiple viewing modes

Along with the fisheye view, VIGI offers multiple viewing modes, allowing you to focus on every detail.

Fisheye

Fisheye

Cylinder

Cylinder

360° panorama

360° panorama

Fisheye + 3PTZ

Fisheye + 3PTZ

Fisheye + 8PTZ

Fisheye + 8PTZ


Intelligent video enhancement technology

  • True WDR: By analyzing and combining multiple exposures, True WDR ensures that both bright and dark areas remain correctly exposed, delivering a well-balanced, natural-looking image even in high-contrast lighting environments.
  • Smart IR: Smart IR dynamically adjusts infrared illumination to avoid overexposure and glare, improving visibility at different distances and ensuring clearer footage.
  • 3D DNR: 3D DNR is a noise reduction technology that analyzes image data between frames to selectively reduce noise while preserving important details.
  • White Balance: White balance ensures that white appears neutral in an image, regardless of lighting conditions.

Efficient H.265+ compression technology

H.265+ reduces the bandwidth and storage required for video while maintaining excellent image quality. It saves 57.5% and 15% more storage space, respectively, than H.264 and H.265 technologies.

3 year warranty

The following product is covered by a 3 year warranty

Download

Brochure in English
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
