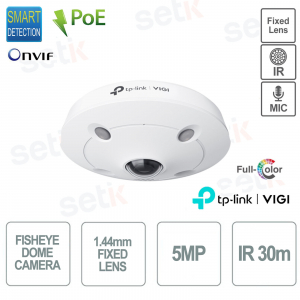

Telecamera Dome Fisheye TP Link InSight S655I ViGi 5MP 1.44mm copertura 360° Visione Notturna IP67 & IK10
VIGI InSight S655I TP-Link VIGI 5MP Telecamera Dome Fisheye S655I IP ONVIF PoE con Visione Notturna 5Megapixel, ottica fissa 1.44mm, H.265+, Smart IR con luce bianca fino a 30M. Motion detection, Smart Detection, monitoraggio da remoto, BLC, 3D DNR, HLC, WDR, bottone reset. Protezione IP67 & IK10. Dimensioni: 132 × 132 × 56mm
3 Anni di Garanzia
FUORI TUTTO ×
FUORI TUTTO!
Approfitta della imperdibile offerte del nostro outlet
Scopri la promo >>

InSight S655I TELECAMERA 5MP TP LINK VIGI DOME CON VISIONE NOTTURNA - DETERRENZA ATTIVA

Telecamera Fisheye TP-Link VIGI 5MP Dome IP ONVIF - InSight S655I
Risoluzione 5Megapixel - Ottica fissa 1.4mm - Compressione H.265+ - Sensore 1/2.7" Progressive Scan CMOS
Visione Notturna e IR luce bianca: Fino a 30 metri - SmartVid: Smart IR, WDR, 3D DNR, HLC
Video Analisi e Classificazione umani/veicoli - Smart Detection
Monitoraggio da remoto - 3 Anni di garanzia
DETTAGLI PRODOTTO
|| Specifiche Tecniche:
- Risoluzione Video: H.265+/H.265/H.264+/H.264
- Sensore: 1/2.7" Progressive Scan CMOS
- Illuminazione: Color: 0.1 Lux; 0 Lux with IR
- Frequenza dei Fotogrammi: 2560 × 1920, 2256 × 1696, 2048 × 1536, 1280 × 960
- Alimentazione: 12V DC/PoE
- Obiettivo: Lente fissa 1.44 mm
|| Caratteristiche Principali:
- Visione Notturna Full-Color e IR: Fino a 30 metri di distanza per immagini nitide anche al buio.
- Patrol Personalizzato: Configura percorsi di monitoraggio su misura.
- Difesa Attiva: Allarmi acustici e luminosi integrati per rispondere a eventi sospetti.
- Storage On-Board: Supporta memorie micro-SD per archiviazione locale.
- Rilevamento Intelligente: Include rilevamento movimento con classificazione umana, manomissione della telecamera, attraversamento di linea e intrusioni in area.
- SmartVid: Tecnologie avanzate come Smart IR, WDR, 3D DNR e BLC migliorano la qualità video.
- Compatibilità ONVIF: Interoperabilità con altri dispositivi di sicurezza.
- Monitoraggio Remoto: Accesso tramite l'app VIGI, interfaccia Web e VIGI Security Manager.
- 3 Anni di Garanzia
SCHEDA TECNICA
| CAMERA | |
|---|---|
| Image Sensor | 1/2.7” Progressive Scan CMOS |
| Shutter Speed | 1/3 to 1/10000 s |
| Slow Shutter | Yes |
| Min. Illumination | Color: 0.1 Lux; 0 Lux with IR |
| Digital Noise Reduction | 3D DNR |
| Day/Night Switch | Unified/ Scheduled/ Auto |
| LENS | |
| Type | Fixed Focal Lens |
| Focal Length | 1.44 mm |
| Aperture | F2.0 |
| FOV | Horizontal FOV: 180°, Vertical FOV: 180°, Diagonal FOV:180° |
| Lens Mount | M12 |
| DORI Distance | Detect: 28.8 m (94 ft) Observe:12 m (39 ft) Recognize: 5.7 m (19 ft) Identify: 2.8 m (9 ft) |
| FISHEYE DISPLAY | |
| Installation | Ceiling Mount; Wall Mount; Pendant Mount |
| Display Mode | Ceiling Mount: Fisheye, AR Dewarp, 180 Panorama, 360 Panorama Cylinder, 2PTZ, 4PTZ, Fisheye + 8PTZ, Fisheye + 3PTZ, 360 Panorama + 8PTZ, 360 Panorama + 6PTZ, 360 Panorama + PTZ Wall Mount: Fisheye, 360 Panoramic Unwrap, 360 Panoramic Unwrap+3PTZ, 360 Panoramic Unwrap+8PTZ, 4PTZ, Fisheye + 3PTZ, Fisheye + 8PTZ |
| ANGLE ADJUSTEMENT (MANUAL) | |
| Range | N/A |
| ILLUMINATOR | |
| IR LED | Quantity: 4 Range: 30m Wavelength: 850nm |
| White LED | N/A |
| Illuminator On/Off Control | Auto/Scheduled/Always on/Always off |
| VIDEO | |
| Max. Resolution | 2560 × 1920 |
| Main Stream | Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 2560 × 1920, 2256 × 1696, 2048 × 1536, 1280 × 960 Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. If WDR is on, the frame rate only supports up to 15fps. |
| Sub-Stream | Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 640 × 480, 320 × 240 Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. If WDR is on, the frame rate only supports up to 15fps. |
| Bit Rate Control | CBR, VBR |
| Video Compression | Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264 |
| H.264 Type | High Profile |
| H.264+ | Main Stream Supported |
| H.265 Type | Main Profile |
| H.265+ | Main Stream Supported |
| Video Bit Rate | Main Stream: 256 Kbps to 6 Mbps Sub-Stream: 64 Kbps to 512 Kbps |
| IMAGE | |
| Image Settings |
|
| Image Enhancement | BLC/3D DNR/HLC/SmartIR |
| Wide Dynamic Range | 120dB |
| SNR | ≥ 52 dB |
| Image Parameters Switch | Yes |
| Privacy Mask | Up to 4 Masks |
| ROI | 1 Region |
| OSD Setting | Yes |
| AUDIO | |
| Comunicazione audio | Two-Way Audio |
| Ingresso audio | Yes |
| Uscita audio | Yes |
| Codec audio | Yes |
| Audio Sampling Rate | 8KHz |
| Environment Noise Filtering | Yes |
| Audio Bit Rate | 64 Kbps(G.711 alaw) |
| NETWORK | |
| Protocol | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP |
| ONVIF | Yes |
| General Function | Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening |
| API | Open Network Video Interface (Profile S/T/G) |
| Simultaneous Live View | 3 Main Streams & 3 Sub-Streams |
| Client | Utility, VIGI App, Web UI, VIGI VMS, VIGI Cloud VMS |
| Web Browser |
|
| Cloud | Yes |
| Security | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
| ALLARME E GESTIONE EVENTO | |
| Smart Event |
|
| Basic Event |
|
| Alarm Linkage |
|
| Linkage Method | N/A |
| Output Notification |
|
| INTERFACE | |
| Communication Interface | 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE |
| Allarme | N/A |
| Reset Button | Yes |
| Power | DC Power Port |
| On-board Storage | Built-In Memory Card Slot, Support MicroSD Card, Up to 512 GB |
| Built-In Microphone | Yes; Records Anything Going on within a 15-ft Radius of the Camera |
| Built-In Speaker | Yes |
| Audio | N/A |
| GENERAL | |
| Operating Temperature | -30–60 °C |
| Storage Temperature | -40–60 °C |
| Operating Humidity | 95% or Less (Non-Condensing) |
| Storage Humidity | 95% or Less (Non-Condensing) |
| Contenuto della confezione |
|
| Material | Metal |
| Net Weight | 0.44 Kg ( without Mounting Accessories) 0.48 Kg ( with Mounting Accessories) |
| Power Supply | 12V DC ± 5%, Max. 11.76 W, 5.5mm Coaxial Power Plug PoE: 802.3af/at, class 0, Max. 12.14W |
| Protection | IP67 Weatherproof, IK10 Vandal Proof |
| Product Dimensions (L x W x H) | 5.2 × 5.2 × 2.2 in (132 × 132 × 56mm) |
| Certifications | CE; NTRA; KC; FCC; VCCI; BSMI; ONVIF |
![]() |
|
|
Copertura a 360° Una telecamera fisheye offre una soluzione di sicurezza più semplice e competitiva. Ad esempio, nella modalità di visualizzazione 4PTZ, funziona come quattro telecamere contemporaneamente, offrendo una copertura completa e prospettive flessibili.
|
|
|
Insieme alla vista fisheye, VIGI offre modalità di visualizzazione multiple, consentendoti di concentrarti su ogni dettaglio.
Cilindro
Panorama a 360°
Fisheye + 3PTZ
Fisheye + 8PTZ
|
|
|
|
|
|
Tecnologia di compressione H.265+ efficiente H.265+ riduce la larghezza di banda e lo spazio di archiviazione richiesti per i video, mantenendo al contempo un'eccellente qualità dell'immagine. Risparmia rispettivamente il 57,5% e il 15% di spazio di archiviazione in più rispetto alle tecnologie H.264 e H.265. |
|
|
Garanzia 3 anni Il seguente prodotto é coperto da garanzia 3 anni |
|
