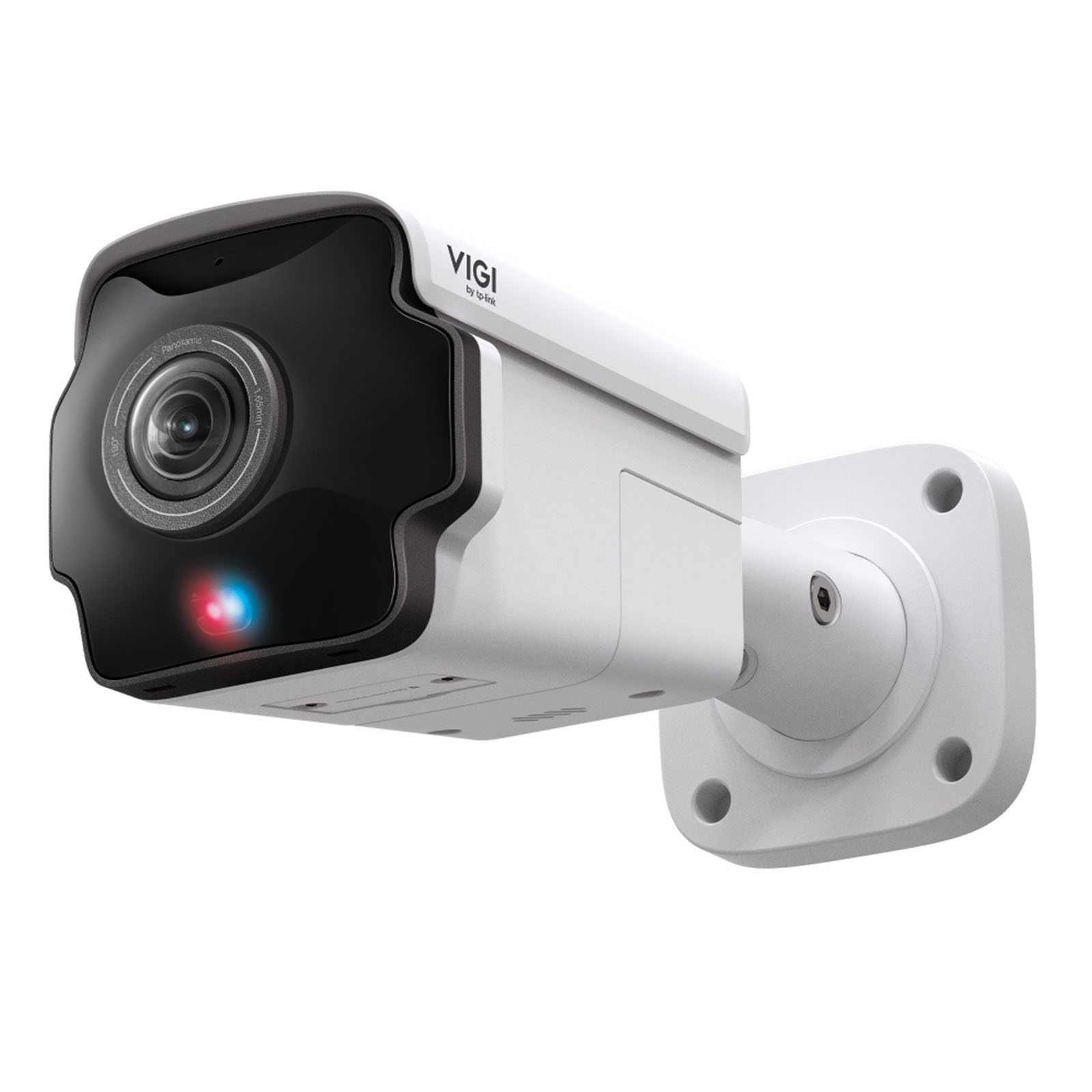

VIGI InSight S385PI TP-Link VIGI 8MP 180° Panoramic Bullet Camera S385PI IP ONVIF PoE Outdoor with Full Color Night Vision 8Megapixel, 1.65mm fixed lens, H.265+, IR 4 LEDs up to 20m, Active deterrence with acoustic and light alarm, People and vehicle classification, Video Analytics, Smart Video Enhancement, Two-way audio (Microphone and Speaker), MicroSD slot (not included), remote monitoring, BLC, 3D DNR, HLC, WDR 120dB, IP67 protection, reset button, 266 × 100 × 101 mm
3 Year Warranty
LIQUIDACION TOTAL ×
CLEARANCE SALE!
Take advantage of our must-see outing offers.
Discover the promo >>

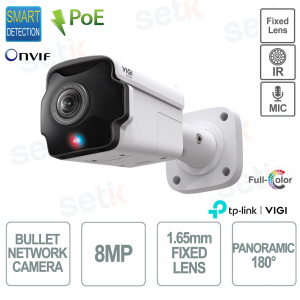

InSight S385PI 8MP TP-LINK VIGI 180° PANORAMIC OUTDOOR BULLET CAMERA WITH NIGHT VISION | FULL-COLOR | ACTIVE DETERRENCE | AUDIO

TP-Link VIGI 8MP 180° Panoramic Bullet IP Camera ONVIF PoE Outdoor - InSight S385PI
8 Megapixel Resolution 30fps - 1.65mm Fixed Lens - H.265+ Compression - 1/2.7" Progressive Scan CMOS Sensor
Full-Color Night Vision and White Light IR : Up to 20 meters - SmartVid : Smart IR, WDR, 3D DNR, BLC
Two-Way Audio : Microphone + Speaker - Active Deterrence : Audible and visual alarms
Video Analysis and Human/Vehicle Classification
MicroSD slot (not included) - IP67 outdoor protection - Remote monitoring - 3 year warranty
PRODUCT DETAILS
|| Technical Specifications:
- Video Resolution: H.265+/H.265/H.264+/H.264
- Sensor: 1/2.7" Progressive Scan CMOS
- 180° Panorama
- Illumination: Color: 0.005 Lux@F1.6, 0 Lux with IR/White Light
- Frame Rate: 25fps/30fps (2560x1440, 2304x1296, 2048x1280, 1920x1080)
- Power supply: PoE/12V DC
- Lens: 1.65mm fixed lens
- Audio: Built-in microphone and speaker
- Memory: Micro-SD slot
- Resistance: IP67
|| Main Features:
- Full-Color and IR Night Vision: Up to 20 meters away for clear images even in the dark.
- Custom Patrol: Configure custom monitoring routes.
- Active Defense: Built-in audible and visual alarms to respond to suspicious events.
- Two-Way Audio: Real-time communication via microphone and speaker.
- On-Board Storage: Supports micro-SD cards for local storage.
- Intelligent Detection: Includes human-classified motion detection, camera tampering, line crossing and area intrusion.
- SmartVid: Advanced technologies such as Smart IR, WDR, 3D DNR and BLC improve video quality.
- ONVIF Compatibility: Interoperability with other security devices.
- Remote Monitoring: Access via the VIGI app, web interface and VIGI Security Manager.
- 3 Year Warranty
TECHNICAL DATA SHEET
| ROOM | |
|---|---|
| Image sensor | 1/2.7” Progressive Scan CMOS |
| Shutter Speed | 1/3 to 1/10000 s |
| Slow Shutter | Yes |
| Minimum brightness | Color: 0.005 Lux; 0 Lux with IR/white light |
| Day/night mechanism | IR Cut Filter |
| Day/Night Switch | Unified/ Scheduled/ Auto |
| LENS | |
| Type | Fixed Focal Lens |
| Focal Length | 1.65 mm |
| Openings | F2.0 |
| FOV | Horizontal FOV: 180°, Vertical FOV: 86°, Diagonal FOV: 180° |
| Lens Mount | M12 |
| DORI Distance | 1.65 mm: Detect: 144.36 ft (44 m) Observe: 60.15 ft (18.33 m) Recognize: 28.87 ft (8.8 m) Identify: 14.44 ft (4.4 m) |
| Angle Adjustment (Manual) | |
| Range | Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360° |
| ILLUMINATOR | |
| IR LED | Quantity: 4 Range: 65.62 ft (20 m) Wavelength: 850nm |
| Illuminator On/Off Control | Auto/Scheduled/Always on/Always off |
| VIDEO | |
| Max. Resolution | 3840 X 2160 |
| Main Stream | Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps Resolution: 3840x2160, 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720 Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. If 120dB is turned on, the frame rate can only support up to 20fps. |
| Sub-Stream | Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps Resolution: 848x480, 704x576, 640x480, 640x360, 352x288, 320x240 Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. If 120dB is turned on, the frame rate can only support up to 20fps. |
| Bit Rate Control | CBR, VBR |
| Video Compression | Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264 |
| H.264 Type | High Profile |
| H.264+ | Main Stream Supported |
| H.265 Type | Main Profile |
| H.265+ | Main Stream Supported |
| Video Bit Rate | Main Stream: 256 Kbps to 8 Mbps Sub-Stream: 64 Kbps to 1024 Kbps |
| Image | |
| Image Settings |
|
| Image Enhancement | BLC/3D DNR/HLC/SmartIR |
| Wide Dynamic Range | 120 dB |
| SNR | ≥ 52 dB |
| Image Parameters Switch | Yes |
| Privacy Mask | Up to 4 Masks |
| ROI | 4 Region |
| OSD Settings | Yes |
| AUDIO | |
| Audio communication | Two-Way Audio |
| Audio input | Built-in Microphone Audio In Interface |
| Audio output | Built-in Speaker Audio Out Interface |
| Audio codec | Yes |
| Audio Sampling Rate | 8KHz |
| Environment Noise Filtering | Yes |
| Audio Bit Rate | 64 Kbps (G.711 alaw) |
| NETWORK | |
| Protocol | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP |
| ONVIF | Yes |
| API | Open Network Video Interface (Profile S/T/G) |
| Simultaneous Live View | 3 Main Streams & 3 Sub-Streams |
| Client | VIGI App, VIGI Security Manager, VIGI NVR, Web |
| Web Browser | Google Chrome® 57 and above Firefox® 52 and above Safari® 11 and above Microsoft® Edge 91 and above |
| Cloud | Yes |
| Safety | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
| ALARM AND EVENT MANAGEMENT | |
| Smart Event |
|
| Basic Event |
|
| Alarm Linkage |
|
| Linkage Method | N/A |
| Output Notification | Push Message |
| Deep Learning Function | |
| People & Vehicle Analytics | Search and filter to people or vehicles of interest based on many different attributes, making post-event search faster and easier. |
| INTERFACES | |
| Network interface | 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE |
| Alarm | 1 Alarm In, 1 Alarm Out Red-Blue Warning Lights |
| Reset Button | Yes |
| Power | DC Power Port |
| Key | Reset Button |
| On-board Storage | Built-In Memory Card Slot, Support MicroSD Card, Up to 512GB |
| Built-in Microphone | Yes; Records Anything Going on within a 15-ft Radius of the Camera |
| Built-in Speaker | Yes |
| Audio | 1 Audio In, 1 Audio Out |
| GENERAL | |
| Operating Temperature | -30–60 °C |
| Storage Temperature | -40–60 °C |
| Operating Humidity | 95% or Less (Non-Condensing) |
| Storage Humidity | 95% or Less (Non-Condensing) |
| Package Contents | VIGI Network Camera Quick Start Guide Waterproof Cable Attachments Mounting Accessories |
| Material | Metal |
| Net Weight | 1.01Kg |
| Power Supply | 12V DC ± 5%, Max. 18W, 5.5 mm Coaxial Power Plug PoE: 802.3at, Class 4, Max. 21W |
| Protection | IP67 Weatherproof, IK10 Vandal Proof |
| Product Dimensions (L x W x H) | 10.5 × 3.9 × 4 in (266 × 100 × 101 mm) |
| Certifications | CE, NTRA, VCCI, KC, BSMI, FCC, IP67, IK10, ONVIF |
![]() |
|
|
180° view 4K (8MP) clarity and display
|
|
|
Powerful and efficient monitoring with Active Defense
|
|
|
Red-blue warning lights with more effective deterrence
|
|
|
Customizable audio and built-in alarm
|
|
|
Intelligent video enhancement technology
|
|
|
Intelligent video enhancement technology
|
|
|
Efficient H.265+ compression technology H.265+ reduces the bandwidth and storage required for video while maintaining excellent image quality. It saves 57.5% and 15% more storage space than H.264 and H.265, respectively. |
|
|
3 year warranty The following product is covered by a 3 year warranty |
|
