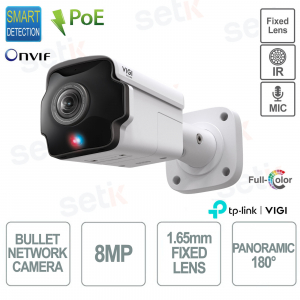

Telecamera Bullet Panoramica a 180° TP Link InSight S385PI ViGi 8MP 1.65mm Esterna Full Color Visione Notturna
VIGI InSight S385PI TP-Link VIGI 8MP Telecamera panoramica a 180° Bullet S385PI IP ONVIF PoE Esterna con Visione Notturna Full Color 8Megapixel, ottica fissa 1.65mm, H.265+, IR 4 Led fino a 20m, Deterrenza attiva con allarme acustico e luminoso, Classificazione persone e veicoli, Video Analisi, Smart Video Enhancement, Audio bidirezionale (Microfono e Speaker), Slot MicroSD (non inclusa), monitoraggio da remoto, BLC, 3D DNR, HLC, WDR 120dB, protezione IP67, bottone reset, 266 × 100 × 101 mm
3 Anni di Garanzia
FUORI TUTTO ×
FUORI TUTTO!
Approfitta della imperdibile offerte del nostro outlet
Scopri la promo >>

InSight S385PI TELECAMERA PANORAMICA A 180° 8MP TP LINK VIGI BULLET ESTERNA CON VISIONE NOTTURNA | FULL-COLOR | DETERRENZA ATTIVA | AUDIO

Telecamera Panoramica a 180° TP-Link VIGI 8MP Bullet IP ONVIF PoE Esterna - InSight S385PI
Risoluzione 8Megapixel 30fps - Ottica fissa 1.65mm - Compressione H.265+ - Sensore 1/2.7" Progressive Scan CMOS
Visione Notturna Full-Color e IR luce bianca: Fino a 20 metri - SmartVid: Smart IR, WDR, 3D DNR, BLC
Audio Bidirezionale: Microfono + Speaker - Deterrenza Attiva: Allarmi acustici e luminosi
Video Analisi e Classificazione umani/veicoli
Slot MicroSD (non inclusa) - Protezione IP67 da esterno - Monitoraggio da remoto - 3 Anni di garanzia
DETTAGLI PRODOTTO
|| Specifiche Tecniche:
- Risoluzione Video: H.265+/H.265/H.264+/H.264
- Sensore: 1/2.7" Progressive Scan CMOS
- Panoramica a 180°
- Illuminazione: Colore: 0.005 Lux@F1.6, 0 Lux con IR/Luce Bianca
- Frequenza dei Fotogrammi: 25fps/30fps (2560x1440, 2304x1296, 2048x1280, 1920x1080)
- Alimentazione: PoE/12V DC
- Obiettivo: Lente fissa 1.65 mm
- Audio: Microfono e altoparlante integrati
- Memoria: Slot micro-SD
- Resistenza: IP67
|| Caratteristiche Principali:
- Visione Notturna Full-Color e IR: Fino a 20 metri di distanza per immagini nitide anche al buio.
- Patrol Personalizzato: Configura percorsi di monitoraggio su misura.
- Difesa Attiva: Allarmi acustici e luminosi integrati per rispondere a eventi sospetti.
- Audio Bidirezionale: Comunicazione in tempo reale tramite microfono e altoparlante.
- Storage On-Board: Supporta memorie micro-SD per archiviazione locale.
- Rilevamento Intelligente: Include rilevamento movimento con classificazione umana, manomissione della telecamera, attraversamento di linea e intrusioni in area.
- SmartVid: Tecnologie avanzate come Smart IR, WDR, 3D DNR e BLC migliorano la qualità video.
- Compatibilità ONVIF: Interoperabilità con altri dispositivi di sicurezza.
- Monitoraggio Remoto: Accesso tramite l'app VIGI, interfaccia Web e VIGI Security Manager.
- 3 Anni di Garanzia
SCHEDA TECNICA
| CAMERA | |
|---|---|
| Sensore di immagine | 1/2.7” Progressive Scan CMOS |
| Shutter Speed | 1/3 to 1/10000 s |
| Slow Shutter | Yes |
| Luminosità minima | Color: 0.005 Lux; 0 Lux with IR/white light |
| Meccanismo giorno/notte | IR Cut Filter |
| Day/Night Switch | Unified/ Scheduled/ Auto |
| LENS | |
| Type | Fixed Focal Lens |
| Focal Length | 1.65 mm |
| Aperture | F2.0 |
| FOV | Horizontal FOV: 180°, Vertical FOV: 86°, Diagonal FOV: 180° |
| Lens Mount | M12 |
| DORI Distance | 1.65 mm: Detect: 144.36 ft (44 m) Observe: 60.15 ft (18.33 m) Recognize: 28.87 ft (8.8 m) Identify: 14.44 ft (4.4 m) |
| Angle Adjustment (Manual) | |
| Range | Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360° |
| ILLUMINATOR | |
| IR LED | Quantity: 4 Range: 65.62 ft (20 m) Wavelength: 850nm |
| Illuminator On/Off Control | Auto/Scheduled/Always on/Always off |
| VIDEO | |
| Max. Resolution | 3840 X 2160 |
| Main Stream | Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps Resolution: 3840x2160, 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720 Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. If 120dB is turned on, the frame rate can only support up to 20fps. |
| Sub-Stream | Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps Resolution: 848x480, 704x576, 640x480, 640x360, 352x288, 320x240 Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. If 120dB is turned on, the frame rate can only support up to 20fps. |
| Bit Rate Control | CBR, VBR |
| Video Compression | Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264 |
| H.264 Type | High Profile |
| H.264+ | Main Stream Supported |
| H.265 Type | Main Profile |
| H.265+ | Main Stream Supported |
| Video Bit Rate | Main Stream: 256 Kbps to 8 Mbps Sub-Stream: 64 Kbps to 1024 Kbps |
| Image | |
| Image Settings |
|
| Image Enhancement | BLC/3D DNR/HLC/SmartIR |
| Wide Dynamic Range | 120 dB |
| SNR | ≥ 52 dB |
| Image Parameters Switch | Yes |
| Privacy Mask | Up to 4 Masks |
| ROI | 4 Region |
| OSD Setting | Yes |
| AUDIO | |
| Comunicazione audio | Two-Way Audio |
| Ingresso audio | Built-in Microphone Audio In Interface |
| Uscita audio | Built-in Speaker Audio Out Interface |
| Codec audio | Yes |
| Audio Sampling Rate | 8KHz |
| Environment Noise Filtering | Yes |
| Audio Bit Rate | 64 Kbps(G.711 alaw) |
| NETWORK | |
| Protocol | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP |
| ONVIF | Yes |
| API | Open Network Video Interface (Profile S/T/G) |
| Simultaneous Live View | 3 Main Streams & 3 Sub-Streams |
| Client | VIGI App, VIGI Security Manager, VIGI NVR, Web |
| Web Browser | Google Chrome® 57 and above Firefox® 52 and above Safari® 11 and above Microsoft® Edge 91 and above |
| Cloud | Yes |
| Sicurezza | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
| ALLARME E GESTIONE EVENTO | |
| Smart Event |
|
| Basic Event |
|
| Alarm Linkage |
|
| Linkage Method | N/A |
| Output Notification | Message Push |
| Deep Learning Function | |
| People & Vehicle Analytics | Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier. |
| INTERFACCE | |
| Interfaccia di rete | 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE |
| Allarme | 1 Alarm In, 1 Alarm Out Red-Blue Warning Lights |
| Reset Button | Yes |
| Power | DC Power Port |
| Tasto | Reset Button |
| On-board Storage | Built-In Memory Card Slot, Support MicroSD Card, Up to 512 GB |
| Built-in Microphone | Yes; Records Anything Going on within a 15-ft Radius of the Camera |
| Built-in Speaker | Yes |
| Audio | 1 Audio In, 1 Audio Out |
| GENERALE | |
| Operating Temperature | -30–60 °C |
| Storage Temperature | -40–60 °C |
| Operating Humidity | 95% or Less (Non-Condensing) |
| Storage Humidity | 95% or Less (Non-Condensing) |
| Contenuto della confezione | VIGI Network Camera Quick Start Guide Waterproof Cable Attachments Mounting Accessories |
| Material | Metal |
| Net Weight | 1.01Kg |
| Power Supply | 12V DC ± 5%, Max. 18W, 5.5 mm Coaxial Power Plug PoE: 802.3at, Class 4, Max. 21W |
| Protection | IP67 Weatherproof, IK10 Vandal Proof |
| Product Dimensions (L x W x H) | 10.5 × 3.9 × 4 in (266 × 100 × 101 mm) |
| Certifications | CE, NTRA, VCCI, KC, BSMI, FCC, IP67, IK10, ONVIF |
![]() |
|
|

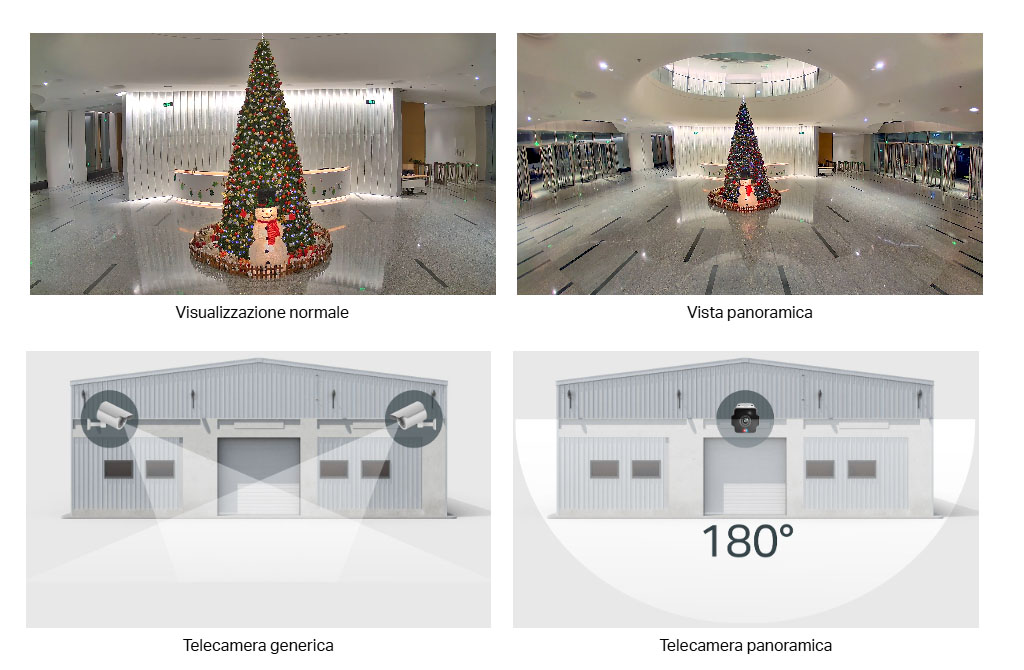

Visuale a 180° visualizzazione e nitidezza 4K (8MP)
|
|
|
Monitoraggio potente ed efficiente con Active Defense
|
|
|
Luci di avvertimento rosso-blu con deterrenza più efficace
|
|
|
Audio personalizzabile e allarme integrato
|
|
|
Tecnologia di miglioramento video intelligente
|
|
|
Tecnologia di miglioramento video intelligente
|
|
|
Tecnologia di compressione H.265+ efficiente H.265+ riduce la larghezza di banda e lo spazio di archiviazione richiesti per i video, mantenendo al contempo un'eccellente qualità delle immagini. Risparmia rispettivamente il 57,5% e il 15% di spazio di archiviazione in più rispetto a H.264 e H.265. |
|
|
Garanzia 3 anni Il seguente prodotto é coperto da garanzia 3 anni |
|
