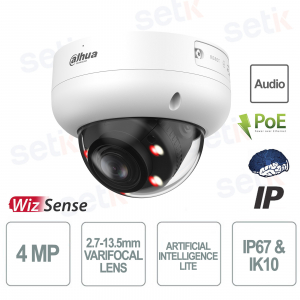

IPC-HDBW3449R-ZS-IL | ONVIF® POE OUTDOOR IP DOME CAMERA - 4 MEGAPIXEL - ARTIFICIAL INTELLIGENCE


Dahua

The Dahua IPC-HDBW3449R-ZS-IL is a 4MP IP camera with advanced AI and Smart Dual Light technology for clear color images even at night. Thanks to the 2.7-13.5 mm motorized varifocal lens, it guarantees a wide viewing angle from 104° to 29°, ideal for any professional security need, even outdoors, with IP67 and IK10 protection.

Main specifications:

- Resolution 4MP 2688×1520@30fps

- 2.7-13.5 mm motorized lens with adjustable zoom

- Smart Dual Light with IR and warm light up to 50 m

- AI SSA and SMD 4.0 for intelligent people/vehicle detection

- Built-in microphone and two-way audio recording

- PoE compatibility, SD card up to 512GB, ONVIF

Further details

Resolution:
The camera offers a maximum resolution of 4 megapixels (2688 x 1520) at 25/30 fps, ensuring clear and detailed images both day and night. It also supports 120 dB WDR for optimal viewing in high-contrast conditions.
Optics :
Equipped with a 2.7 mm to 13.5 mm motorized varifocal lens, it offers a variable viewing angle from 104° to 29° horizontally. Thanks to the F1.4 aperture, it guarantees excellent performance in low-light conditions. The tilt angle reaches up to 80° with a full 355° rotation.
Smart Dual Light :
Smart Dual Light technology automatically switches between infrared (IR) and white light up to 50 meters away. At night, it uses IR to reduce light pollution and activates white light only when it detects human or vehicle motion, recording color video only when needed.

Artificial Intelligence (AI):
It integrates advanced AI SSA (automatic scene adaptation) and SMD 4.0 technologies to accurately distinguish people and vehicles, reducing false alarms. It also includes perimeter protection functions (tripwire, intrusion), smart search, and AcuPick for quickly finding events in videos.
Microphone:
It features a built-in microphone with two-way audio and support for G.711a, G.711Mu, PCM, G.726, and G.723 audio compression. The audio detection function allows you to detect sound anomalies such as suspicious noises.
Network Camera:
It is a next-generation IP camera compatible with ONVIF Profile S/G/T/M, supports PoE (802.3af), SD storage up to 512 GB, and remote management via SmartPSS, DSS, and DMSS on Android/iOS devices. Equipped with IP67 and IK10 protection against dust, water, and vandalism, it is ideal for outdoor environments even in extreme weather conditions.
IPC-HDBW3849R-ZS-IL dimensions

Technical data sheet

Model IPC-HDBW3449R-ZS-Il
Room
Image Sensor 1/2.9" CMOS
Effective Pixel 2688 (H) × 1520 (V)
ROM/RAM 256 MB/ 1 GB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s
Min. Illumination

0.005 lux@F1.4 (Color, 30 IRE)
0.0005 lux@F1.4 (B/W, 30 IRE)
0 lux (illuminator on)

S/N Ratio

﹥56 dB

Illumination Distance

Up to 50 m (164.04 ft) (IR)
Up to 50 m (164.04 ft) (Warm light)

Illuminator On/Off Control

Auto/Manual

Illuminator Number

4 (Multi-core (IR + warm) light)

Pan/Tilt/Rotation Range Pan: 0°–355°; Tilt: 0°–80°; Rotation: 0°–355°
Lens
Lens Type Motorized vari-focal
Lens Mount φ14
Focal Length 2.7 mm-13.5 mm
Max. Openings F1.4
Field of View H: 114°–32°; V: 58°–17°; D: 138°–36°
Iris Type Fixed
Close Focus Distance 0.1 m (0.33 ft)
Intelligence
IVS (Perimeter Protection) Tripwire; intrusion (support the classification and accurate detection of vehicle and human)
SMD SMD 4.0
Smart Search Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
AcuPick Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets.
TO THE SSA Adopt deep learning algorithms to adjust the parameters of the image to suit the conditions.
Video
Compression H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)
Smart Codec Smart H.265+; Smart H.264+
Ai Coding AI H.265; AI H.264
Video Frame Rate

Main stream: 2688 × 1520@(1 fps–25/30 fps)
Sub stream: 1920 × 1080@(1 fps–25/30 fps)
Third stream:1920 × 1080@(1 fps–25/30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

Stream Capability

3 streams

Resolution 4M (2688 × 1520/2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control

VBR; CBR; ABR

Video Bit Rate H.264: 3 kbps–16384 kbps
H.265: 3 kbps–16384 kbps
Day/Night Auto (ICR)/Color/B/W
BLC Yes
HLC Yes
WDR 120 dB
Scene Self-Adaptation Yes
White Balance Car; natural; street lamp; outdoor; manual; regional custom
Gain Control Car
Noise Reduction 3D NR
Motion Detection OFF/ON (4 areas, rectangular)
Image Stabilization Electronic Image Stabilization (EIS)
Region of Interest (RoI) Yes (4 areas)
Smart Lighting Yes
Smart Dual Light Yes
Defog Yes
AFSA Yes
Image Rotation 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower)
Mirror Yes
Privacy Masking 8 areas
Audio
Built-in MIC Yes, built-in dual Mic
Audio Compression PCM; G.711a; G.711Mu; G.726; G.723
Alarm
Alarm Event No SD card; SD card full; SD card error; service life warning (supported by Dahua card); network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; audio detection; voltage detection; external alarm; SMD; safety exception; light alarm; sound alarm (11 built-in sounds and custom voices importing)
Network
Ethernet RJ-45 (10/100 Base-T)
SDK and API Yes
Protocol IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP; P2P
Interoperability ONVIF® (Profile S/Profile G/Profile T); CGI
User/Host 20 (Total bandwidth: 64 M)
Storage FTP; SFTP; Micro SD card (support max. 512G); NAS
Browser IE: IE11 Chrome Firefox
Management Software Smart PSS; DSS; DMSS
Mobile Phone iOS; Android
Cyber Security Video encryption; firmware encryption; configuration encryption; Digests; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade
Certifications
Certifications

CE-LVD: EN 62368-1;
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU

Power
Power Supply 12V DC/PoE (802.3af)
Dual Power Backup When the power adapter and PoE provide power at the same time, disconnect one of them. The device will continue to work, but will not restart.
Power Consumption

Basic: 2.9W (12VDC); 3.7W (PoE)
Max. (H.265 + WDR + warm light + intelligence on): 8.7 W (12 VDC); 10.9W (PoE)

Environment
Operating Temperature –30 °C to +60 °C (–22 °F to +140 °F)
Operating Humidity ≤95% (RH), non-condensing
Storage Temperature –40 °C to +60 °C (–40 °F to +140 °F)
Storage Humidity ≤95% (RH), non-condensing
Ingress Protection IP67; IK10
Structure
Casing Metal
Dimensions 94.0 mm × Φ122.0 mm (3.70" × Φ4.80")
Net Weight 560 g (1.23 lb)
Gross Weight 740 g (1.63 lb)
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
