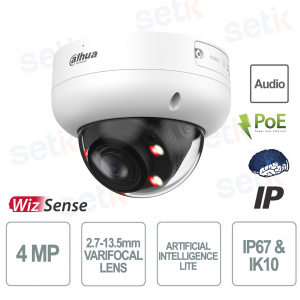

IPC-HDBW3449R-ZS-IL | TELECAMERA DOME IP ONVIF® POE DA ESTERNO - 4 MEGAPIXEL - INTELLIGENZA ARTIFICIALE

La Dahua IPC-HDBW3449R-ZS-IL è una telecamera IP da 4MP con AI avanzata e tecnologia Smart Dual Light per immagini a colori nitide anche di notte. Grazie all’ottica varifocale motorizzata da 2.7-13.5 mm garantisce ampio angolo di visione da 104° a 29°, ideale per ogni esigenza di sicurezza professionale, anche in esterni, con protezione IP67 e IK10.
Specifiche principali:
- Risoluzione 4MP 2688×1520@30fps
- Ottica motorizzata 2.7-13.5 mm con zoom regolabile
- Smart Dual Light con IR e luce calda fino a 50 m
- AI SSA e SMD 4.0 per rilevamento intelligente persone/veicoli
- Microfono integrato e registrazione audio bidirezionale
- Compatibilità PoE, SD card fino a 512GB, ONVIF
Ulteriori dettagli
✅ Intelligenza Artificiale (AI):

Scheda tecnica
Model | IPC-HDBW3449R-ZS-Il |
Camera | |
Image Sensor | 1/2.9" CMOS |
Effective Pixel | 2688 (H) × 1520 (V) |
ROM/RAM | 256 MB/ 1 GB |
Scanning System | Progressive |
Electronic Shutter speed | Auto/Manual 1/3 s–1/100,000 s |
Min. Illumination |
0.005 lux@F1.4 (Color, 30 IRE) |
S/N Ratio |
﹥56 dB |
Illumination Distance |
Up to 50 m (164.04 ft) (IR) |
Illuminator On/Off Control |
Auto/Manual |
Illuminator Number |
4 (Multi-core (IR + warm) light) |
Pan/Tilt/Rotation Range | Pan: 0°–355°; Tilt: 0°–80°; Rotation: 0°–355° |
Lens | |
Lens Type | Motorized vari-focal |
Lens Mount | φ14 |
Focal Length | 2.7 mm-13.5 mm |
Max. Aperture | F1.4 |
Field of View | H: 114°–32°; V: 58°–17°; D: 138°–36° |
Iris Type | Fixed |
Close Focus Distance | 0.1 m (0.33 ft) |
Intelligence | |
IVS (Perimeter Protection) | Tripwire; intrusion (support the classification and accurate detection of vehicle and human) |
SMD | SMD 4.0 |
Smart Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
AcuPick | Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets. |
AI SSA | Adopt deep learning algorithms to adjust the parameters of the image to suit the conditions. |
Video | |
Compression | H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream) |
Smart Codec | Smart H.265+; Smart H.264+ |
Ai Coding | AI H.265; AI H.264 |
Video Frame Rate |
Main stream: 2688 × 1520@(1 fps–25/30 fps) |
Stream Capability |
3 streams |
Resolution | 4M (2688 × 1520/2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
Bit Rate Control |
VBR; CBR; ABR |
Video Bit Rate | H.264: 3 kbps–16384 kbps H.265: 3 kbps–16384 kbps |
Day/Night | Auto (ICR)/Color/B/W |
BLC | Yes |
HLC | Yes |
WDR | 120 dB |
Scene Self Adaption | Yes |
White Balance | Auto; natural; street lamp; outdoor; manual; regional custom |
Gain Control | Auto |
Noise Reduction | 3D NR |
Motion Detection | OFF/ON (4 areas, rectangular) |
Image Stabilization | Electronic Image Stabilization (EIS) |
Region of Interest(RoI) | Yes (4 areas) |
Smart Illumination | Yes |
Smart Dual Light | Yes |
Defog | Yes |
AFSA | Yes |
Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower) |
Mirror | Yes |
Privacy Masking | 8 areas |
Audio | |
Built-in MIC | Yes, built-in dual Mic |
Audio Compression | PCM; G.711a; G.711Mu; G.726; G.723 |
Alarm | |
Alarm Event | No SD card; SD card full; SD card error; service life warning (supported by Dahua card); network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; audio detection; voltage detection; external alarm; SMD; safety exception; light alarm; sound alarm (11 built-in sounds and custom voices importing) |
Network | |
Ethernet | RJ-45 (10/100 Base-T) |
SDK and API | Yes |
Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP; P2P |
Interoperability | ONVIF® (Profile S/Profile G/Profile T); CGI |
User/Host | 20 (Total bandwidth: 64 M) |
Storage | FTP; SFTP; Micro SD card (support max. 512 G); NAS |
Browser | IE: IE11 Chrome Firefox |
Management Software | Smart PSS; DSS; DMSS |
Mobile Phone | iOS; Android |
Cyber Security | Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade |
Certifications | |
Certifications |
CE-LVD: EN 62368-1; |
Power | |
Power Supply | 12V DC/PoE (802.3af) |
Dual Power Backup | When the power adapter and PoE provide power at the same time, disconnect one of them. The device will continue to work, but will not restart. |
Power Consumption |
Basic: 2.9 W (12 VDC); 3.7 W (PoE) |
Environment | |
Operating Temperature | –30 °C to +60 °C (–22 °F to +140 °F) |
Operating Humidity | ≤95% (RH), non-condensing |
Storage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
Storage Humidity | ≤95% (RH), non-condensing |
Ingress Protection | IP67; IK10 |
Structure | |
Casing | Metal |

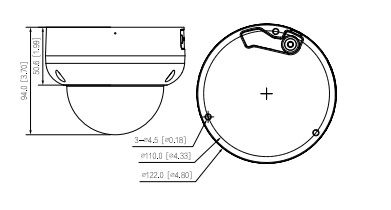

Dimensions | 94.0 mm × Φ122.0 mm (3.70" × Φ4.80") |
Net Weight | 560 g (1.23 lb) |
Gross Weight | 740 g (1.63 lb) |
