IPC-HDBW3649R-ZS-IL - is an IP dome camera with 6MP resolution that offers clear images even in low light conditions thanks to the 1/2.7" CMOS sensor and Smart Dual Light technology with a range of up to 50 meters . Equipped with a 2.7 mm to 13.5 mm vari-focal motorized lens, it guarantees a field of view from 114° to 32°, ideal for professional video surveillance. It supports advanced AI functions such as face detection, perimeter protection and SMD 4.0 to reduce false alarms, with H.265+ compression that optimizes space and bandwidth. Thanks to IP67 certification, integrated microphone and PoE power supply, it is a safe and versatile solution for indoor and outdoor installations. Dahua
LIQUIDACION TOTAL ×
CLEARANCE SALE!
Take advantage of our must-see outing offers.
Discover the promo >>

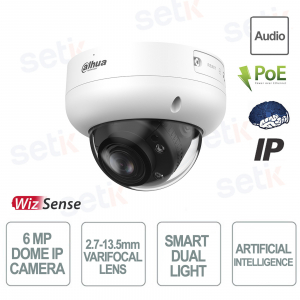

IPC-HDBW3649R-ZS-IL | 6MP POE DOME IP CAMERA - 2.7-13.5MM LENS - IP67 PROTECTION

The Dahua IPC-HDBW3649R-ZS-IL is a 6MP IP dome camera with a 2.7–13.5 mm varifocal motorized lens, capable of delivering clear images even in low light conditions thanks to Smart Dual Light technology with a range of up to 50 meters. Equipped with advanced AI for face detection, perimeter protection and SMD 4.0, it guarantees reliable security and false alarm reduction. Certified IP67, with a built-in microphone and PoE support, it is an ideal solution for professional video surveillance installations, both indoor and outdoor.
Main specifications:
- 6MP resolution (3288 × 1850) up to 30 fps
- Motorized vari-focal lens 2.7–13.5 mm, FOV 114°–32°
- Smart Dual Light with IR and warm light up to 50 m
- AI: Face Detection, Perimeter Protection, SMD 4.0
- H.265+/H.264+ compression for bandwidth and storage savings
- IP67, built-in microphone, MicroSD support up to 512GB
Further details
✅ Face Detection:

Technical data sheet
IPC-HDBW3649R-ZS-IL | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Room |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Image Sensor |
1/2.7" CMOS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max. Resolution |
3288 (H) × 1850 (V) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
ROM |
256 MB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
RAM |
1 GB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Scanning System |
Progressive |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Electronic Shutter Speed |
Auto/Manual 1/3 s–1/100,000 s |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Min. Illumination |
0.005 lux@F1.4 (Color, 30 IRE) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
S/N Ratio |
﹥56 dB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Illumination Distance |
Up to 50 m (164.04 ft) (IR) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Illuminator On/Off Control |
Auto; Manual |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Illuminator Number |
4 (Multi-core (IR + warm) light) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Pan/Tilt/Rotation Range |
Pan: 0°–355°; Tilt: 0°–80°; Rotation: 0°–355° |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Lens |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Lens Type |
F |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Lens Mount |
M12 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Focal Length |
2.8 mm |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max. Openings |
F1.4 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Field of View |
H: 110°; V: 58°; D: 132° |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Iris Control |
Fixed |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Close Focus Distance |
1.4 m (4.59 ft) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Intelligence |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
IVS (Perimeter Protection) |
Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human), stay detection, loitering detection |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Face Detection (Full Image) |
Face detection; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face snapshot set as face or one-inch photo; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting. |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
SMD |
SMD 4.0 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
AcuPick |
Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets. |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
TO THE SSA |
Adopt deep learning algorithms to adjust the parameters of the image to suit the conditions. |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Smart Search |
Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Compression |
H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Smart Codec |
Smart H.265+; Smart H.264+ |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Frame Rate |
Main stream: 3288 × 1850@(1–25/30 fps) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
12 VDC/PoE (802.3af) |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Dual Power Backup |
When the power adapter and PoE provide power at the same time, disconnect one of them. The device will continue to work, but will not restart. |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Consumption |
Basic: 2.6W (12 VDC); 3.3W (PoE) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Environment |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Temperature |
–30 °C to +60 °C (–22 °F to +140 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Humidity |
≤95% (RH), non-condensing |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage Temperature |
–40 °C to +60 °C (–40 °F to +140 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage Humidity |
≤95% (RH), non-condensing |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Protection |
IP67 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Structure |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Casing Material |
Metal |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

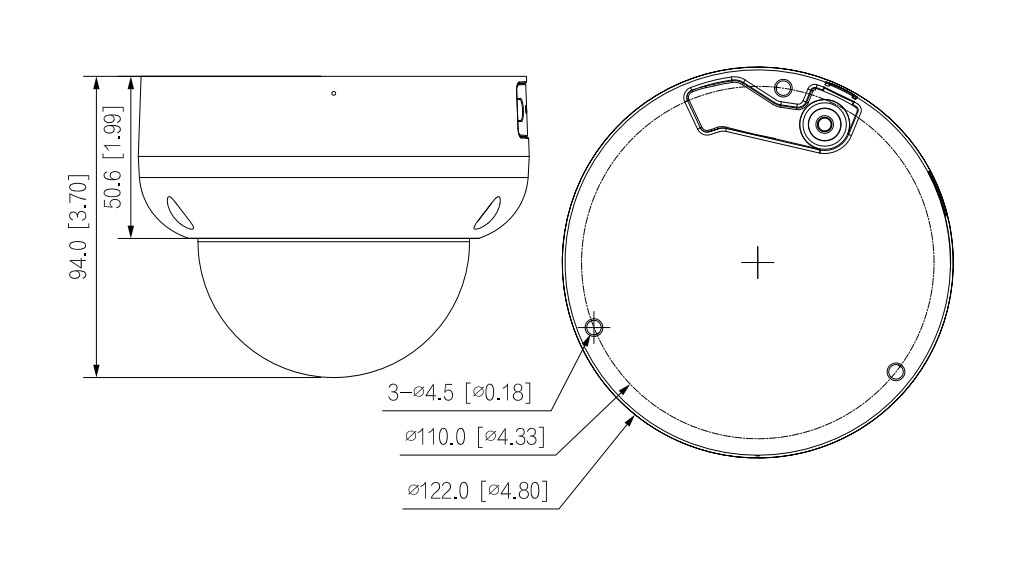

Product Dimensions |
94.0 mm × Φ122.0 mm (3.70" × Φ4.80") |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Net Weight |
560 g (1.23 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gross Weight |
740 g (1.63 lb) |
